Off-the-shelf optical components often force engineers into difficult mechanical compromises. When standard catalog optics fall short on resolution, thermal stability, or physical footprint, custom optical lens design becomes essential.
At Jinyuan, we help engineering teams bridge the gap between initial sketch and serial manufacturing. This guide examines how a custom assembly—referred to here as "Its Lens"—moves from concept validation to high-volume output.
If you are planning an upcoming hardware revision or need a custom build, contact our engineering group today for a direct feasibility review and production quote.
1. The Urgency for Custom Optical Solutions
Standard catalog lenses offer convenience during early bench tests. However, they rarely survive the jump to a commercial product. Off-the-shelf options force systems into bulkier barrels, awkward sensor pairings, and sub-optimal light gathering.
Every commercial device demands specific performance. Its Lens represents a tailored optical system: an assembly engineered around a specific sensor, wavelength band, and mechanical envelope. Custom optics eliminate redundant elements, optimize transmission, and directly lower bill-of-materials costs over volume runs.
Taking a lens from raw engineering blueprints to thousands of verified assemblies requires discipline. Below, we break down each step of that journey.
2. Phase 1: Conceptual Design and Optical Modeling
Every successful project begins on the optical designer's workbench. Skipping deep analysis here introduces compounding errors during later tooling phases.
Specification Mapping
Optical engineers establish baseline mechanical and optical parameters long before opening ray-tracing software. Critical inputs include:
- Effective Focal Length (EFL) and Back Focal Length (BFL)
- Field of View (FOV) and image circle diameter matching sensor geometry
- F-number / Numerical Aperture (NA) to govern light throughput
- Operating spectral bandwidth (UV, Visible, NIR, or SWIR)
- Operating and storage temperature profiles
Ray Tracing and Aberration Control
Using platforms like Zemax OpticStudio or Code V, designers balance monochromatic aberrations (spherical, coma, astigmatism) and chromatic aberrations. System layouts balance positive and negative elements, often combining distinct refractive indices to cancel chromatic dispersion across the target spectrum.
DFM for Optics: Designing for Real-World Tolerances
An optical blueprint is useless if opticians cannot build it affordably. Design for Manufacturability (DFM) analyzes how glass choices, center thicknesses, edge geometries, and air gaps affect assembly ease.
Tight manufacturing tolerances—such as wedge angles under 30 arcseconds or surface irregularities below lambda/10—drive up production costs. A capable optical engineering team loosens non-critical parameters while securing performance through smart element placement. This ensures Its Lens performs cleanly without demanding impossible shop-floor tolerances.

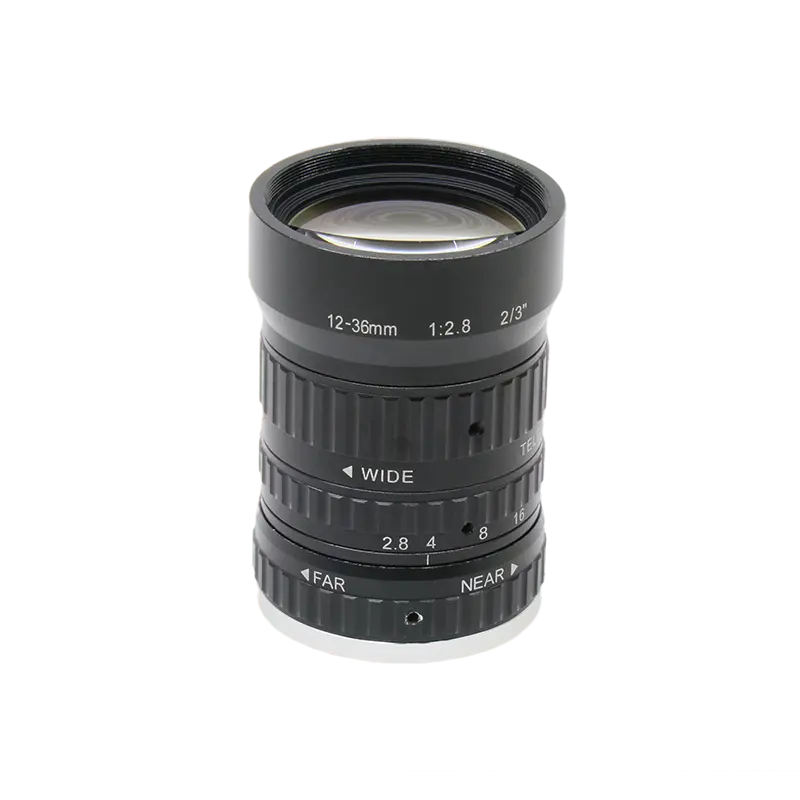

3. Phase 2: Rapid Prototyping — Validating "Its Lens"
Once simulations converge, the design transitions to physical hardware. Prototyping proves optical throughput, clears packaging limits, and reveals mechanical interference.
Optical Glass vs. Optical Plastics
Material selection defines the manufacturing route for any prototype:
- Optical Glass (Schott, CDGM, Ohara): Ideal for high environmental stability, broad transmission, and minimal thermal drift. Glass elements are ground and polished.
- Optical Polymers (COP, OKP, PMMA, Polycarbonate): Best for lightweight consumer electronics and integrated mounting flanges. Polymers support complex aspheric profiles at lower unit costs.
Prototype Machining Technologies
Cutting permanent injection molds for plastic optics costs thousands of dollars and takes weeks. For fast turnaround, prototyping relies on alternate methods:
- Single Point Diamond Turning (SPDT): Uses a monocrystalline diamond cutting tool on an ultra-precision lathe. SPDT cuts optical-grade aspheres and freeforms directly into optical polymers or non-ferrous metals with sub-nanometer surface roughness.
- Precision CNC Grinding and Polishing: Specialized 5-axis machines grind glass blanks, followed by pitch polishing or magneto-rheological finishing (MRF) to eliminate subsurface damage.
Prototypes reveal how Its Lens behaves under handling, temperature swings, and mechanical assembly torque. Engineers measure stray light, inspect housing tolerances, and verify optical axis registration before greenlighting serial production tools.
4. Phase 3: Rigorous Metrology and Optical QA
Precision manufacturing cannot survive without traceable metrology. Quality assurance teams verify every dimensional, geometrical, and optical parameter against specifications.
Surface Accuracy Inspection
Laser phase-shifting interferometers inspect lens surface figure against reference transmission spheres. Metrologists monitor Peak-to-Valley (PV) error and Root-Mean-Square (RMS) surface roughness. Wavefront aberrations tell engineers whether the lens surface matches mathematical models down to fractions of a nanometer.
Modulation Transfer Function (MTF) Testing
Modulation Transfer Function represents the definitive metric for lens imaging performance. MTF benchmarks contrast retention across escalating spatial frequencies (line pairs per millimeter, lp/mm).
Dedicated MTF test benches measure on-axis and off-axis performance across target field angles. If Its Lens fails contrast cutoffs at target frequencies, engineers immediately trace the error back to surface figure, tilt, or decentration.
Environmental and Durability Stress Tests
Lab performance must translate to reliable field duty. Quality teams subject assemblies to standard environmental screening:
- Thermal cycling: Ramping between -40°C and +85°C to catch thermal defocusing
- Vibration and shock: Simulating transit and vehicular operation
- Humidity and salt fog: Verifying barrel anodization, adhesive cures, and coating adhesion

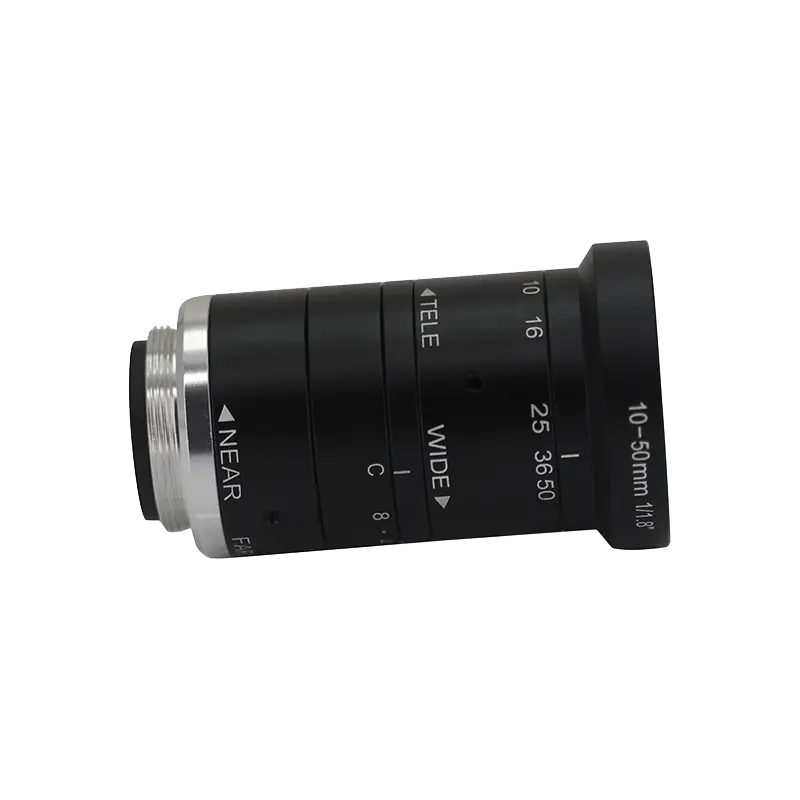

5. Phase 4: From Pilot Production to High-Volume Output
Scaling up transforms a bespoke laboratory item into a repeatable product. Jinyuan applies established New Product Introduction (NPI) workflows to shift optical assemblies smoothly into high-volume manufacturing.
Precision Injection Molding and Multi-Cavity Tooling
For polymer-based optics, engineers cut multi-cavity hardened-steel molds with diamond-turned nickel inserts. Maintaining uniform temperature, injection speed, and pack pressure prevents localized birefringence, internal stresses, and shrinkage variations across parts.
Vacuum Thin-Film Deposition
Uncoated glass surfaces reflect roughly 4% of incident light per surface. In a six-element lens, this causes a major transmission drop and heavy internal flare. Multi-layer anti-reflective (AR) coatings, applied via physical vapor deposition (PVD) or ion-assisted deposition (IAD), cut surface reflection below 0.5%.
Uniform chamber heating and continuous crystal-rate monitoring maintain coating thickness across large batches. This protects transmission, color rendition, and laser damage thresholds.
Active Alignment (AA)
Standard drop-in mechanical assembly works for modest imaging needs. However, modern high-resolution sensors with sub-2-micron pixels demand tighter tolerances than mechanical barrels can provide.
Active Alignment solves this problem. Automated robots hold the lens module over an active test target while a sensor reads the live MTF feed across multiple points. The robotic manipulator micro-positions the lens across six degrees of freedom, locking down the position with UV-curing adhesive once performance peaks. Active Alignment ensures Its Lens delivers edge-to-edge sharpness across high-volume production lines.
Statistical Process Control (SPC)
Mass production relies on steady statistical monitoring. Machine operators track center thickness, refractive index, surface power, and element runout through real-time X-bar and R charts. Detecting trends early keeps scrap rates low and preserves profit margins.
6. Real-World Applications Powered by Custom Optics
Every commercial market poses distinct optical challenges. Customized lens design enables systems to run reliably under tough mechanical and optical constraints.
Medical Endoscopy and In-Vitro Diagnostics
Medical visualization requires micro-optics with outer diameters often smaller than 2.0 mm. These assemblies demand zero image distortion, accurate tissue color rendering, and complete resistance to repeated autoclave cycles.
Autonomous Driving, ADAS, and LiDAR
Automotive vision systems must see through freezing winter cold, engine heat, and blinding sun. Customized automotive assemblies feature athermalized housings that mix specialized plastics and glass. This approach keeps focal points steady from -40°C to +105°C without motor adjustment.
AR/VR Micro-Displays and Machine Vision
Industrial robotics and head-mounted optics rely on compact form factors. Designers use high-index aspheric elements to fold long optical paths into compact spaces, maximizing field of view while keeping overall weight low.
7. Frequently Asked Questions (FAQ)
Q1: How long does the journey from prototype to production typically
take?
A1: Prototyping via diamond turning or quick-turn polishing
takes 3 to 6 weeks. Transitioning through pilot validation to mass production
usually requires 8 to 16 weeks, depending on mold construction, coating specs,
and Active Alignment tooling needs.
Q2: When should I choose optical glass over optical
plastics?
A2: Choose optical glass when your application requires
superior thermal stability, high optical transmission in extreme wavebands, or
resistance to harsh cleaning agents. Opt for optical plastics when unit weight,
complex aspheric shapes, integrated snap-features, and low unit costs drive your
project.
Q3: What critical data must I provide to start custom optical lens
design?
A3: Provide target sensor specs (pixel size and active
area), focal length, aperture constraints, working distance, spectral range,
target MTF metrics, space envelopes, and expected operating temperatures.
Q4: Why does a custom optical design sometimes perform well in
simulation but fail in prototypes?
A4: Discrepancies usually stem
from incomplete tolerance budgeting. If your Zemax or Code V design does not
account for tool wear, element tilt, decentration, surface figure errors, and
adhesive shrinkage, real hardware will show spherical aberration and astigmatism
that never appeared in software.
Q5: What is the benefit of Active Alignment (AA) over passive drop-in
barrel assembly?
A5: Drop-in assembly relies entirely on mechanical
barrel tolerances, which stack up and often tilt elements relative to the
sensor. Active Alignment powers the sensor, tracks real-time MTF across field
points, and positions the lens along six axes. This method guarantees uniform
edge-to-edge sharpness across small-pixel sensors.
8. Partner with an Integrated Optical Manufacturer
Navigating optical development requires more than clean software simulations. Success demands tight coordination between optical design, precision machining, multi-layer coating, automated assembly, and metrology.
Splitting optical design, molding, and housing manufacturing among separate vendors creates accountability gaps. If an assembly suffers contrast loss or thermal drift, individual vendors blame each other's tolerances. Selecting a single, vertically integrated manufacturing partner protects your schedule and investment.
Whether you are designing a high-resolution machine vision module, an automotive sensor, or an analytical diagnostic device, Jinyuan delivers the manufacturing discipline your program requires. We guide Its Lens from concept feasibility to high-volume assembly with steady, documented quality.
Ready to take your optical project forward? Contact our engineering team today to submit your specifications, schedule a technical consultation, and receive a comprehensive DFM and cost analysis.
