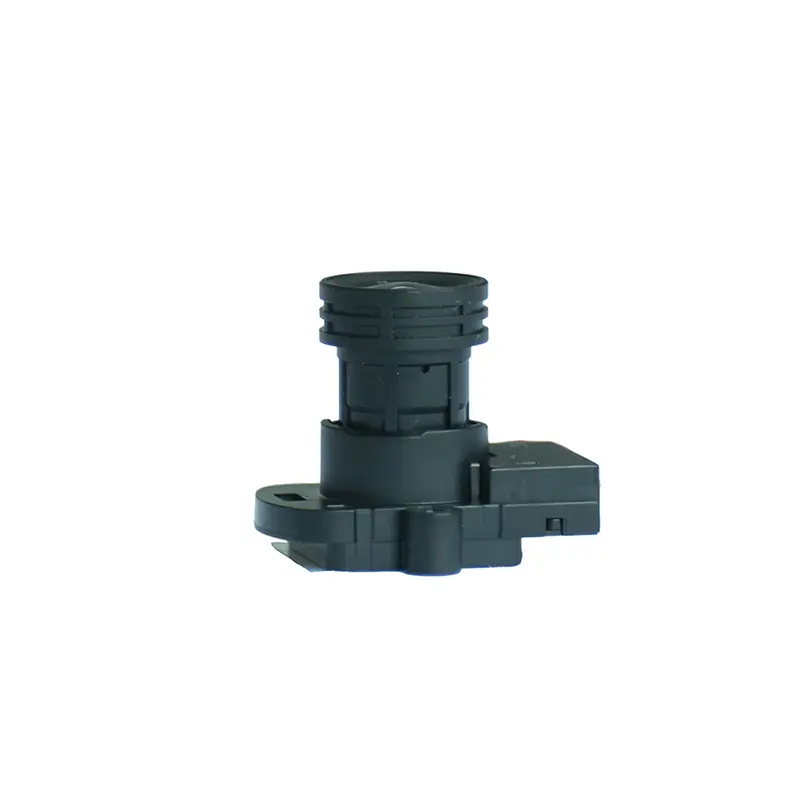

1/2.7inch 4mm F1.6 8MP S mount camera lens

Short Description:

Focal length 4mm, Fixed-Focal designed for 1/2.7inch sensor, High resolution security camera/bullet camera Lenses.

The S-mount lenses feature an M12 male thread with a 0.5 mm pitch on the lens and a corresponding female thread on the mount, which categorizes them as M12 lenses. Jinyuan Optics offers a diverse range of high-quality S-mount lenses, providing various resolutions and focal lengths to meet different needs.
The M12 board lens, featuring a large aperture and wide field of view is an ideal option for photographers seeking to capture breathtaking wide-angle view. JYM12-8MP series are high resolution (up to 8MP) lenses designed for board level cameras. JY-127A04FB-8MP is wide-angle 4mm M12 lens which provides a 106.3° Diagonal Field of View on 1/2.7″ sensors. Additionally, this lens has an impressive F1.6 aperture range, which not only enhances image quality but also provides superior light-gathering capabilities.

Product Detail

Product Tags

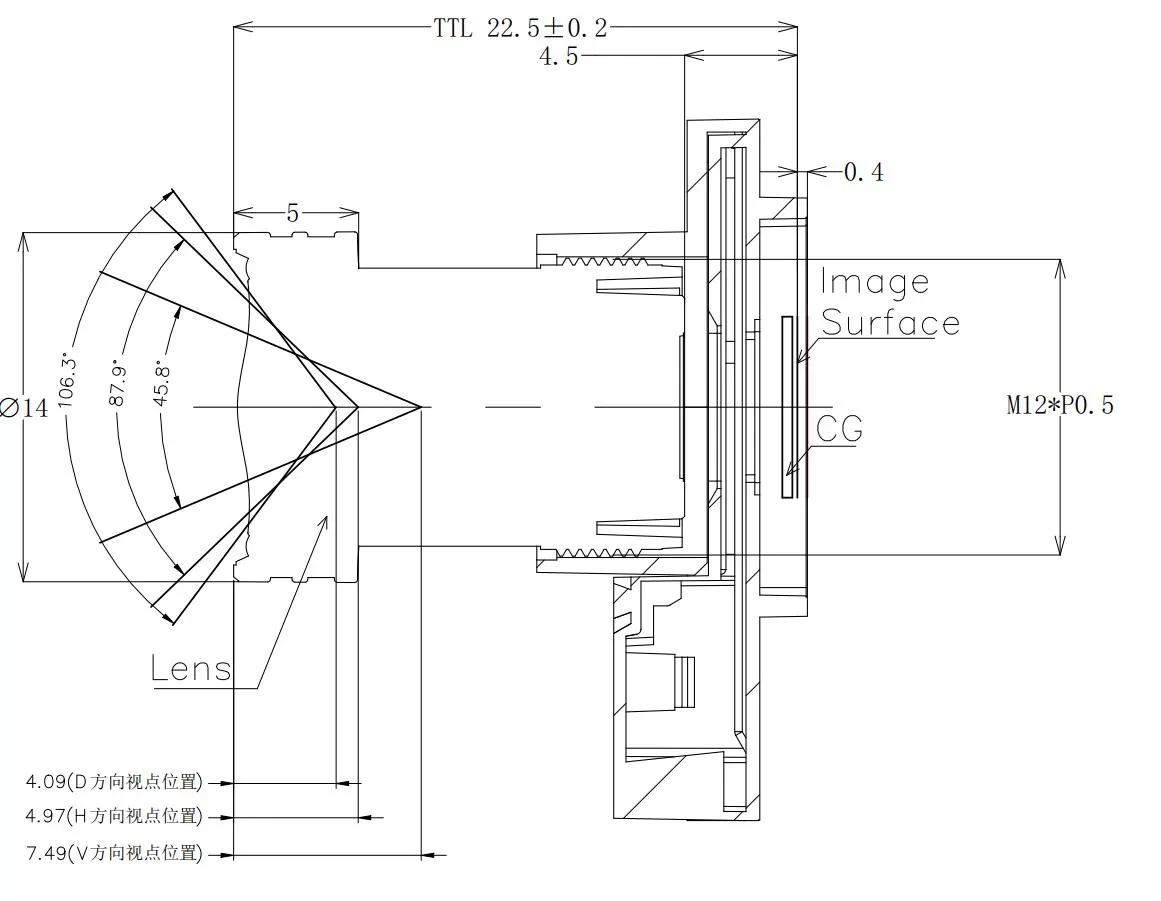

Product Specifications

Model NO JY-127A04FB-8MP
FNO 1.6
Focal-Length  (mm) 4mm
Format 1/2.7''
Resolution 8MP
Mount M12X0.5
Dx H x V 106.3°x 87.9°x 45.8°
Lens structure 1G3P
IR TYPE IR Filter 645±10nm @50%
TV distortion -22%
CRA 17.0°
Operation Zoom Fixed
Focus Fixed
Iris  Fixed
Operating Temerature -20℃~+60℃
Mechanical BFL 4.5mm
TTL 22.5mm

Product Features

● Focal length:4mm
● Diagonal field of view: 106.3°
● Aperture range: Large aperture F1.6
● Mount type: standard M12*0.5 threads
● Applications: Bullet and dome security/surveillance camera, Video Conference Camera, etc.

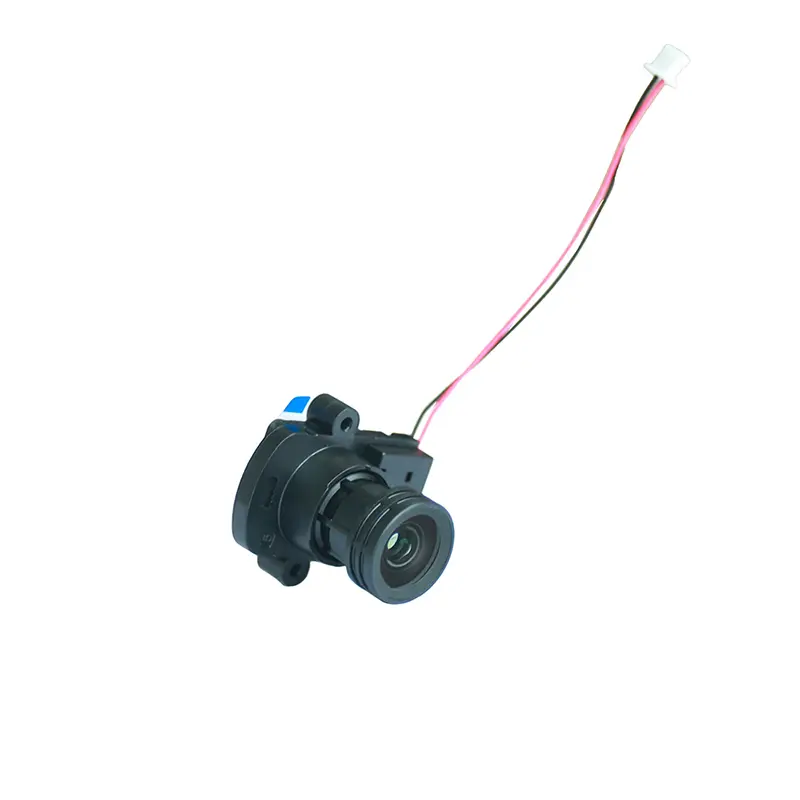

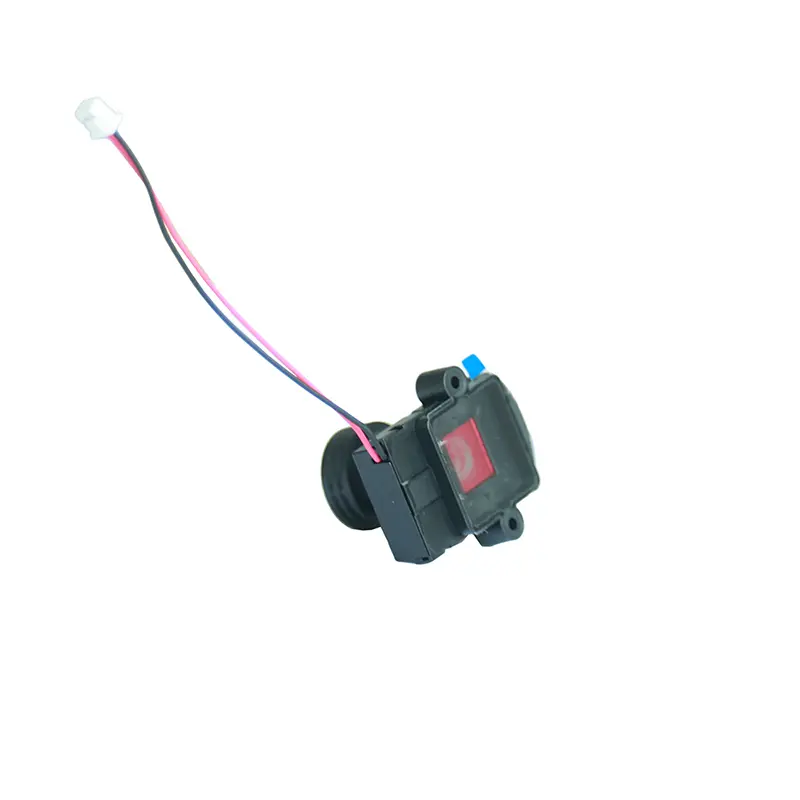

● Lens holder and IR CUT filter are available
● Compact size, incredibly lightweight, install and disassemble easily, and does not affect the installation and use of other accessories.
● Environmentally friendly design - no environmental impacts are used in optical glass materials, metal materials and package material

Application Support

If you need any support in finding suitable lens for your application, please do kindly contact us with further details. Our highly skilled design team and professional sales team would be glad to assist you. Our goal is maximizing the potential of your vision system with the right lens.
