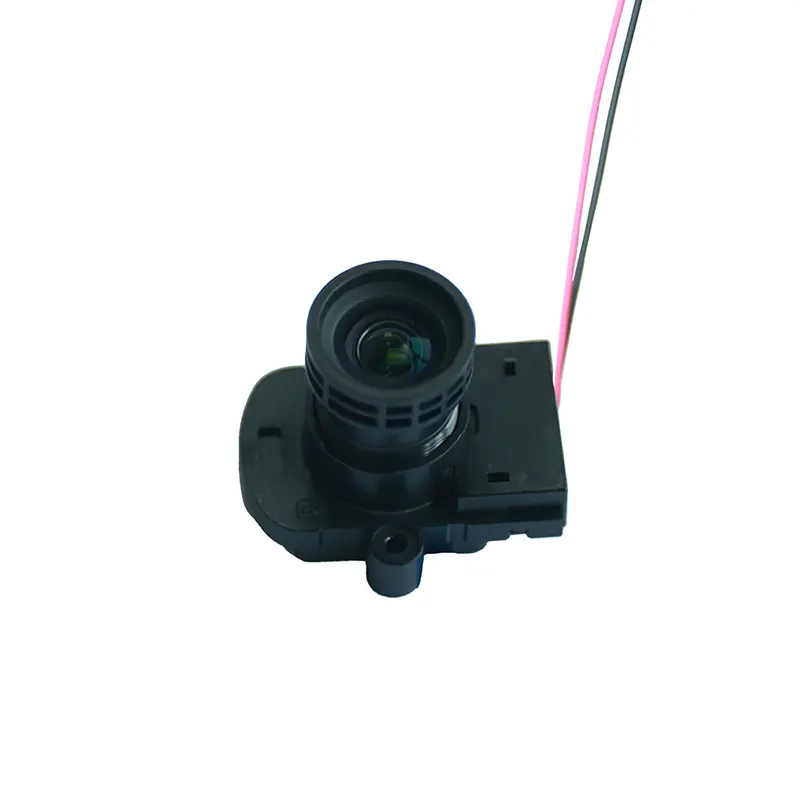

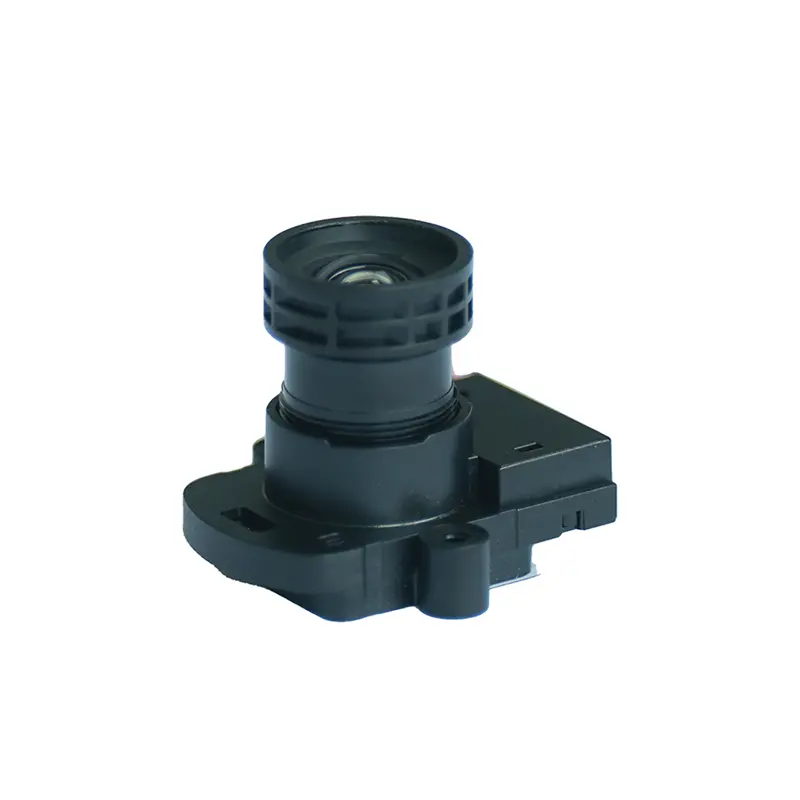

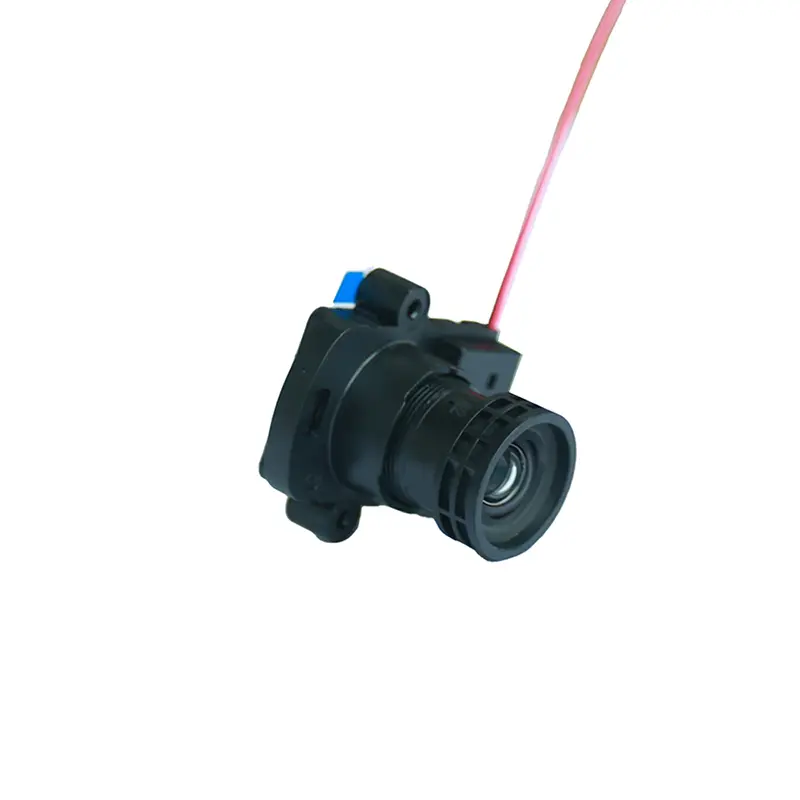

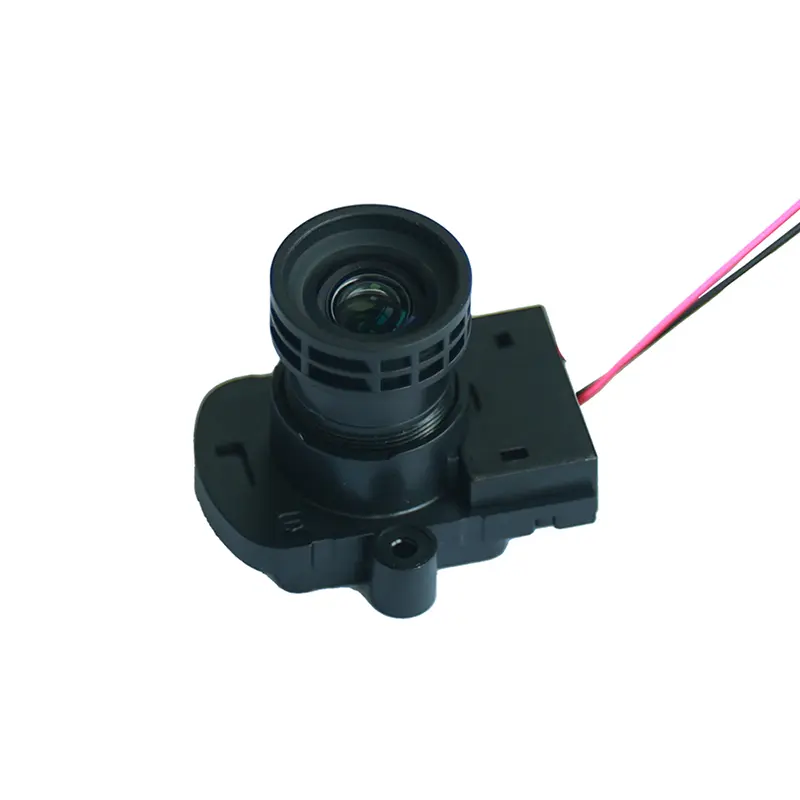

1/2.7inch 6mm large Aperture 8MP S mount board lens

Short Description:

Focal length 6mm, Fixed-Focal designed for 1/2.7inch sensor, High resolution surveillance camera board lens

The board mount lenses are manufactured in various sizes, featuring thread diameters ranging from 4mm to 16mm, and the M12 lens is the most commonly used in the market. It is usually attached to a board camera. The product range of Jinyuan Optics includes a diverse selection of high-quality S-mount lenses, offering a wide range of resolutions and focal lengths.
JYM12-8MP series are high resolution (up to 8MP) lenses designed for board level cameras. JY-127A06FB-8MP is 8MP large aperture 6mm which provides a 67.9° Diagonal Field of View on 1/2.7″ sensors. Additionally, this lens has an impressive F1.6 aperture range and is compatible with cameras with M12 mounts. Its compact size, high performance, affordable price and durable construction makes it contribute to its widespread utilization.

Product Detail

Product Tags

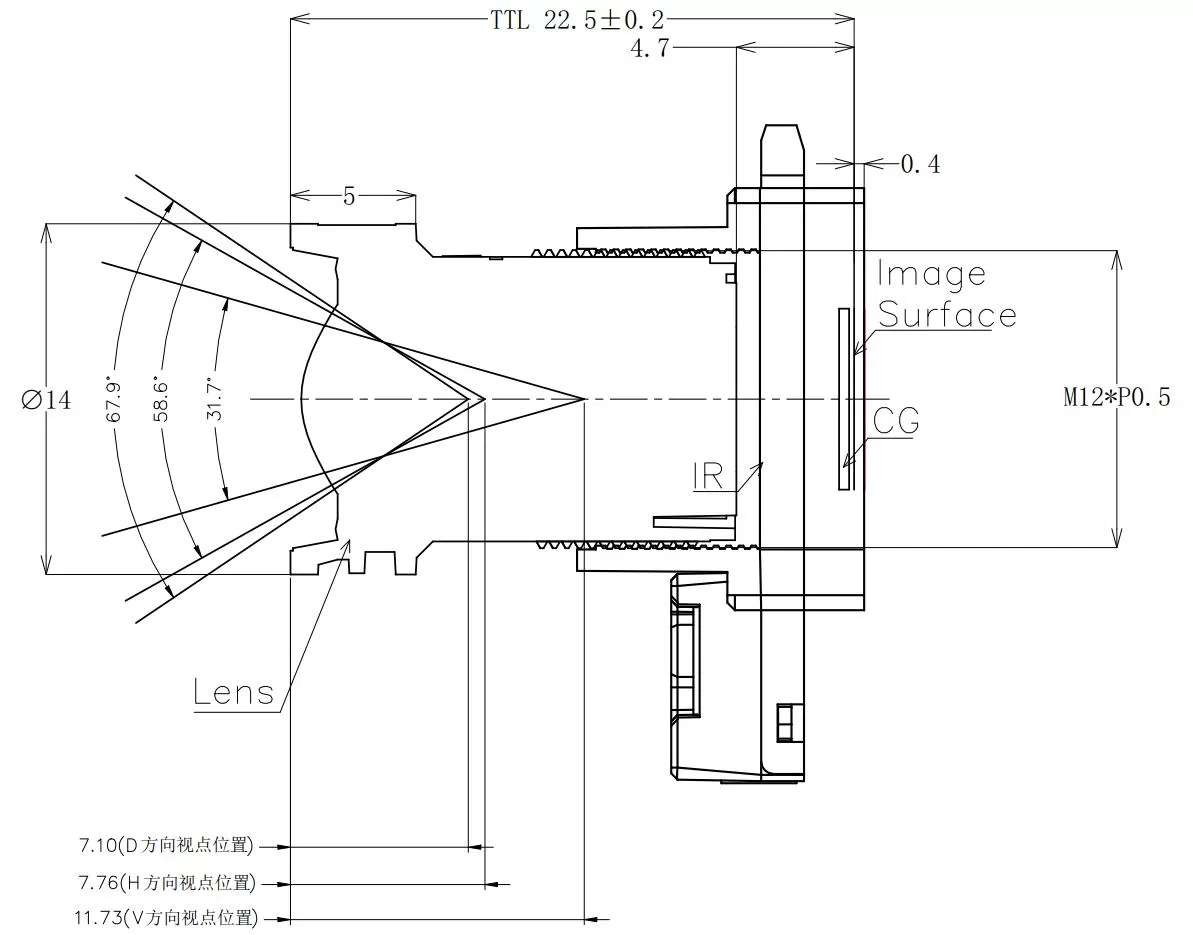

Product Specifications

Model NO JY-127A06FB-8MP
FNO 1.6
Focal-Length  (mm) 6mm
Format 1/2.7''
Resolution 8MP
Mount M12X0.5
Dx H x V 67.9°x 58.6°x 31.7°
Lens structure 1G4P
IR TYPE IR Filter 645±10nm @50%
TV distortion -13%
CRA 16.4°
Operation Zoom Fixed
Focus Fixed
Iris  Fixed
Operating Temerature -20℃~+60℃
Mechanical BFL 4.7mm
TTL 22.5mm

Product Features

● Focal length:6mm
● Diagonal field of view: 67.9°
● Aperture range: Large aperture F1.6
● Mount type: standard M12*0.5 threads
● Applications: Bullet and dome security/surveillance camera, Video Conference Camera, etc.
● Lens holder and IR CUT filter are available
● Compact size, incredibly lightweight, install and disassemble easily, and does not affect the installation and use of other accessories.
● Environmentally friendly design - no environmental impacts are used in optical glass materials, metal materials and package material

Application Support

If you need any support in finding suitable lens for your application, please do kindly contact us with further details. Our highly skilled design team and professional sales team would be glad to assist you. Our goal is maximizing the potential of your vision system with the right lens.
