1/1.8" 5MP 3.6mm M12 MTV Fixed Lens-Jinyuan

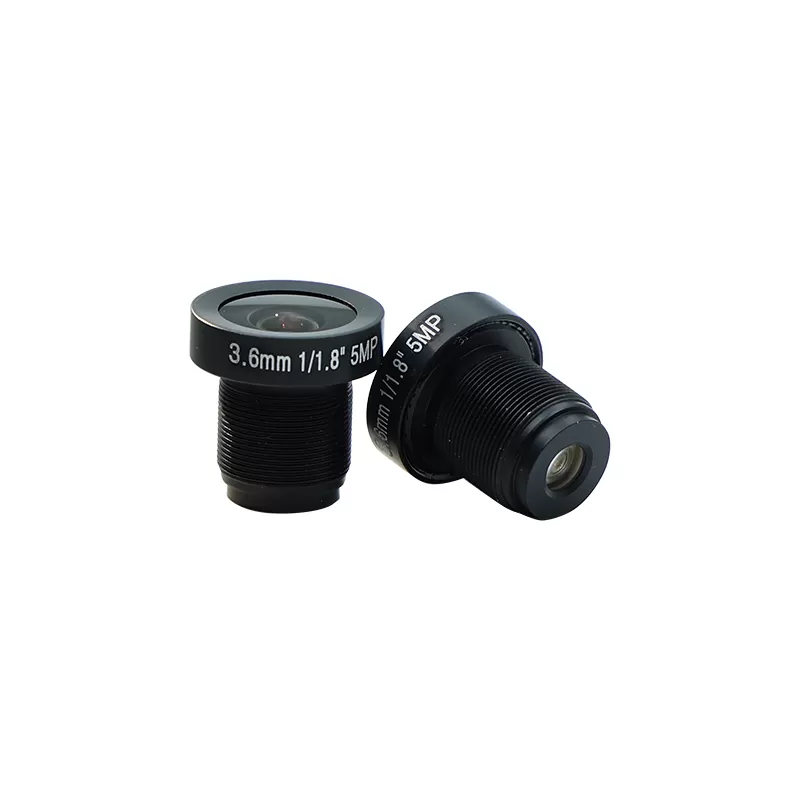

This fixed-focus M12 board-mount lens is optimized for 1/1.8” 5MP CMOS sensors such as Sony IMX334, IMX178 and equivalents. It adopts standard M12×0.5 MTV thread, with 3.6 mm EFL (±1%), delivering ultra-wide diagonal FoV of ~140°.

It features heavy barrel distortion (typical −42%, max <−40%). No optical distortion correction on lens; geometric dewarping shall be done by ISP to retain wide FoV and lower system cost. IR-confocal design keeps focal-plane shift within ±1 μm between daytime visible-light and 650 nm night IR modes, eliminating spectral defocus.

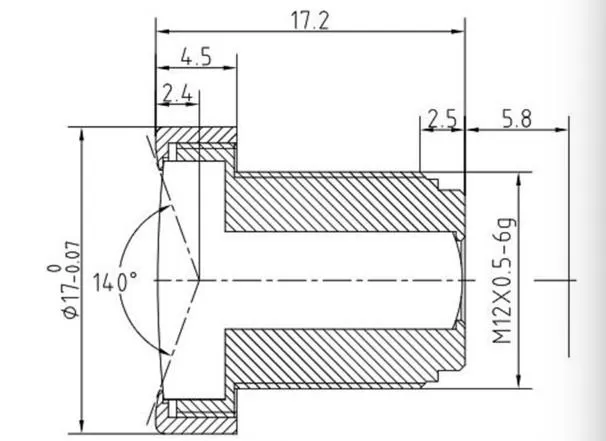

Built with full-metal barrel, it offers good mechanical stability, vibration resistance and wide temperature adaptability (−20 °C ~ +60 °C). Compact size Φ17 mm ×17.2 mm , ideal for mass-produced embedded vision systems.

Suitable for wide-area surveillance where software dewarp is acceptable: IP cameras, AI edge vision modules and intelligent vision terminals.

Core Specifications

· Sensor compatibility: 1/1.8”, image circle ≥Φ9.0 mm, no vignetting or illumination drop-off

· Resolution: 5 MP (2560×1920); sufficient center & edge MTF for full sensor output

· EFL: 3.6 mm (±1%); fixed aperture f/2.0 (±5%)

· TV distortion: <−40%>

· Interface: M12×0.5 MTV;

· Mechanics: full-metal barrel; postlock position stability ±0.5 μm, verified by 1000 cycles of thermal shock & vibration test

· Environment: −20 °C ~ +60 °C, 7×24 continuous operation, compliant with IEC 60068-2 reliability standards

Typical Application Scenarios

· 5MP IP security cameras: Indoor panoramic surveillance for shopping-mall lobbies, office corridors, warehouses & logistics sites.

· AI intelligent vision terminals: Edge analytics including human detection, perimeter intrusion alarm and passenger-flow heatmap (real-time dewarp required).

· Smart home & edge computing devices: Wide-FoV embedded vision front-end for low-power SoC platforms.

· Supported sensors: 1/1.8” CMOS sensors with matched CRA and native 5MP resolution, e.g. Sony IMX334, IMX178.
