1.1 inch C mount 20MP 50mm FA lens

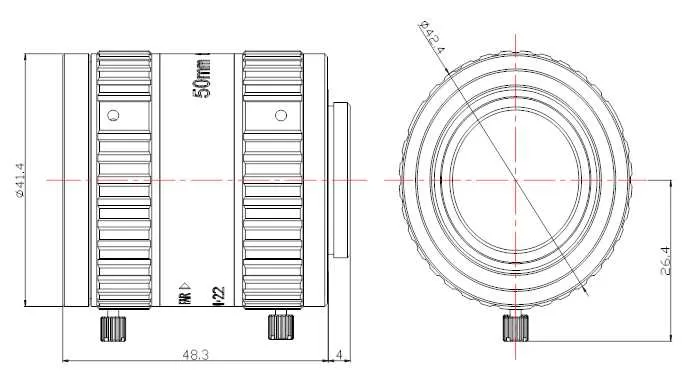

Product Specifications
| No. | ITEM | Parameter | |||||
| 1 | Model number | JY-11FA50M-20MP | |||||
| 2 | Format | 1.1"(17.6mm) | |||||
| 3 | Wavelength | 420~1000nm | |||||
| 4 | Focal Length | 50mm | |||||
| 5 | Mount | C-Mount | |||||
| 6 | Aperture range | F2.8-F22 | |||||
| 7 | Angel of view (D×H×V) | 1.1" | 19.96°×15.96°×11.96° | ||||
| 1" | 18.38°×14.70°×10.98° | ||||||
| 1/2" | 9.34°×7.42°×5.5° | ||||||
| 1/3" | 6.96°×5.53×4.16° | ||||||
| 8 | Object dimension at MOD | 1.1" | 79.3×63.44×47.58mm | ||||
| 1" | 72.50×57.94×43.34mm | ||||||
| 1/2" | 36.18×28.76×21.66㎜ | ||||||
| 1/3" | 27.26×21.74×16.34mm | ||||||
| 9 | Back Focal-Length （in air） | 21.3mm | |||||
| 10 | Operation | Focus | Manual | ||||
| Iris | Manual | ||||||
| 11 | Distortion rate | 1.1" | -0.06%@y=8.8㎜ | ||||
| 1" | -0.013%@y=8.0㎜ | ||||||
| 1/2" | 0.010%@y=4.0㎜ | ||||||
| 1/3" | 0.008%@y=3.0㎜ | ||||||
| 12 | M.O.D | 0.25m | |||||
| 13 | Filter screw size | M37×P0.5 | |||||
| 14 | Operation temperature | -20℃～+60℃ | |||||
| Working Distance(mm) | Optical Magnifi-cation | 1.1〃 | 1〃 | 2/3〃 | |||
| H | V | H | V | H | V | ||
| 14.08 | 10.56 | 12.8 | 9.6 | 8.8 | 6.6 | ||
| 250mm | -0.2219 | 63.596 | 47.697 | 57.814 | 43.361 | 39.747 | 29.811 |
| 300mm | -0.1813 | 77.984 | 58.488 | 70.894 | 53.171 | 48.740 | 36.555 |
| 350mm | -0.1533 | 92.372 | 69.279 | 83.974 | 62.981 | 57.732 | 43.299 |
| 400mm | -0.1328 | 106.482 | 79.861 | 96.802 | 72.601 | 66.551 | 49.913 |
| 450mm | -0.1172 | 120.535 | 90.402 | 109.578 | 82.183 | 75.335 | 56.501 |
| 500mm | -0.1048 | 134.568 | 100.926 | 122.334 | 91.751 | 84.105 | 63.079 |
| 550mm | -0.0949 | 148.509 | 111.382 | 135.008 | 101.256 | 92.818 | 69.614 |
| 600mm | -0.0866 | 162.473 | 121.854 | 147.702 | 110.777 | 101.545 | 76.159 |
| 650mm | -0.0797 | 176.496 | 132.372 | 160.451 | 120.338 | 110.310 | 82.733 |
| 700mm | -0.0736 | 191.990 | 143.992 | 174.536 | 130.902 | 119.994 | 89.995 |
| 1000mm | -0.0512 | 275.646 | 206.734 | 250.587 | 187.940 | 172.279 | 129.209 |
Machine vision lenses are applied in factory automation to replace the human eye for measurement and decision making. They are widely applied in industrial inspection, such as scanner, laser instruments intelligent transportation and machine vision program.
The Jinyuan Optics JY-11FA 1.1" series are ultra-high resolution (20MP) lenses designed for cameras with a 1.1" sensor or smaller, providing the ideal solution for a wide range of image processing applications. The compact appearance, decent quality and competitive price make this lens a very good choice for all standard vision applications.
OEM / Custom Design
We offer engineering design, consultation and prototyping service for clients with OEM and custom design requirements. our expertise R& D team can provide tailored solutions to meet the specific needs of customer. If you have any specific requirements, pls feel free to contact with us.
Application Support
If you need any support in finding suitable lens for your application, please do kindly contact us with further details, our highly skilled design team and professional sales team would be glad to assist you. Our goal is maximize the potential of your vision system with the right lens.
Warranty
Jinyuan Optics warrants the Lenses when purchased new to be free from defects in material and workmanship. Jinyuan Optics, at its option, will repair or replace any equipment showing such defects for a period 1 years from the date of purchase by the original buyer.
This warranty covers equipment that has been properly installed and used. It does not cover damage that occurs in shipment nor failure that results from alteration, accident, misuse, abuse or faulty installation.
