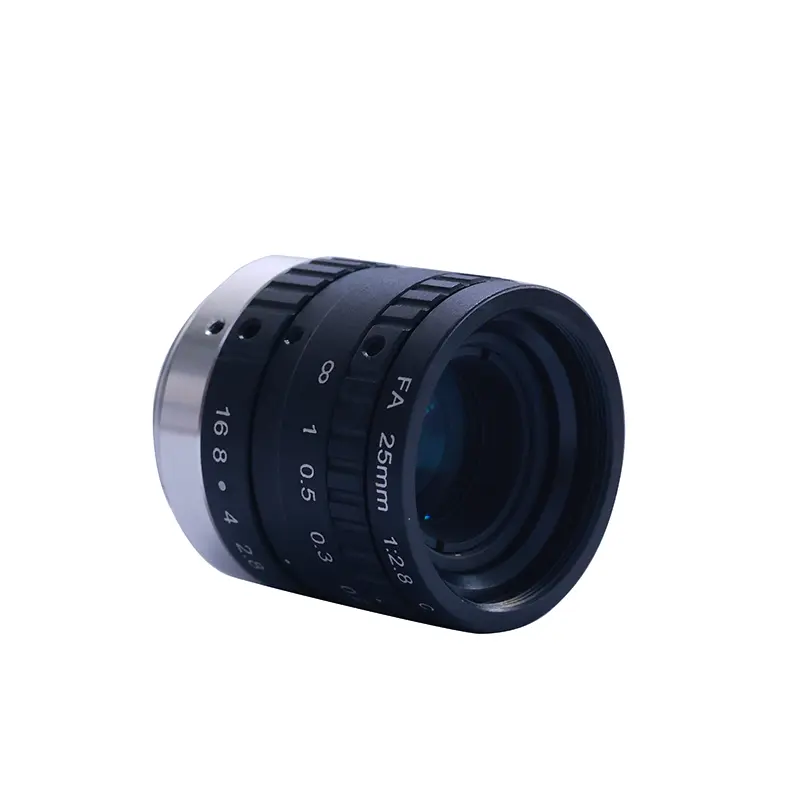

1/1.8inch C mount 10MP 25mm Machine vision lenses
Product Specifications
| Model | JY-118FA25M-10MP | ||
| Focal Length | 25mm | ||
| Image Format | 1/1.8” | ||
| Mount | C | ||
| F No. | F/2.8-16 | ||
| Pixel | 4k | ||
| Focusing range | 0.2m~∞ | ||
| Field Angle | 1/1.8”(16:9) | 20.4°(D)*17.8°(H)*10.0°(V) | |
| 1/2” (16:9) | 18.1°(D)*15.9°(H)*8.9°(V) | ||
| 1/2.5”(16:9) | 16.3°(D)*14.3°(H)*8.0°(V) | ||
| TTL | 34.6mm | ||
| Lens construction | 6 elements in 4 groups | ||
| Distortion | <0.2% | ||
| Working Wavelength | 400-700nm | ||
| Relative Illumination | >0.9 | ||
| B.F.L. | 12.2mm | ||
| Operation | Focus | Manual | |
| Zoom | / | ||
| Iris | Manual | ||
| Filter mount | M25.5*0.5 | ||
| Dimension | Φ30*32.2 | ||
| Heavy volume | 46g | ||
Machine vision lenses are used in factory automation to replace the human eye for measurement and decision making. They are widely used in industrial inspection, such as machine vision programs, scanners, laser instruments, intelligent transportation, etc.
In the whole machine vision system, the machine vision lens is an important imaging component. So select the right lenses is of crucial importance. Our goal is maximize the potential of your vision system with the right lens. Jinyuan Optics JY-118FA series is designed to achieve high resolution up to 10 megapixels compatible with 1/1.8" sensors with compact appearance. In order to make the device install easily and high reliability, although it is a high-resolution lens, the diameter of the 25mm product is only 30mm. This allows for installation flexibility even in manufacturing facilities with space constraints.
OEM/Custom design
We offer engineering design, consultation and prototyping service for clients with OEM and custom design requirements. our expertise R& D team can provide tailored solutions to meet the specific needs of customer. If you have any specific requirements, pls feel free to contact with us.
Application Support
If you need any support in finding suitable lens for your application, please do kindly contact us with further details, our highly skilled design team and professional sales team would be glad to assist you. Our goal is maximize the potential of your vision system with the right lens.
Warranty for one year since your purchase from original manufacturer.
