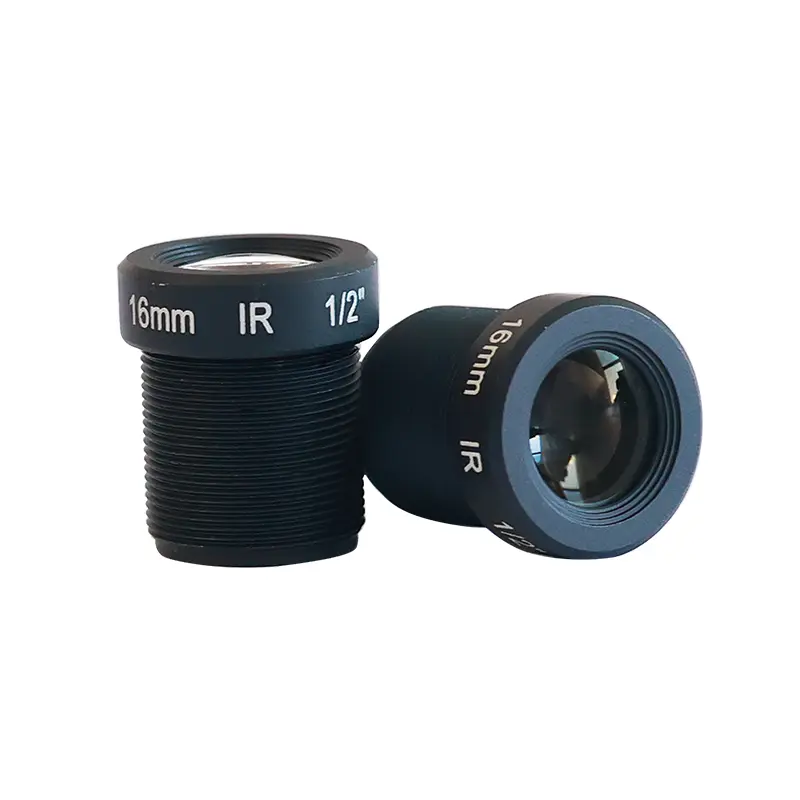

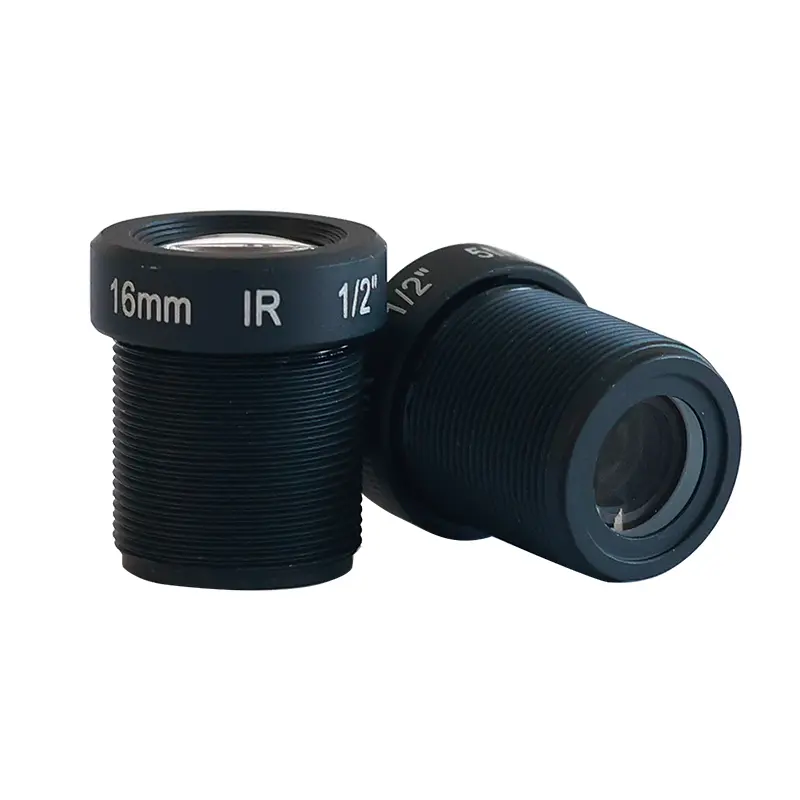

1/2” high resolution low distortion board mount security camera/FA lens
Product Introduction
Low-distortion lenses find application in a multiplicity of domains, including photography, videography, medical imaging, industrial vision systems, aerospace, and AR/VR. Within these application scenarios, low-distortion lenses are capable of effectively minimizing image distortion and offering more authentic and exact visual effects by virtue of their exceptional optical design.
Designed and produced by Jinyuan Optoelectronics, the 1/2-inch sensor with 5 million pixels and low distortion lens. The main application fields include:
Surveillance camera: Due to its small size and moderate resolution, the 1/2-inch sensor is widely used in various surveillance cameras, capable of providing a clear video picture and being suitable for home, commercial and industrial security surveillance.
Machine vision: In the field of machine vision and automation, sensors of this size are employed to detect, measure and identify objects and are suitable for industrial automation and quality control.
Product Specifications
| Parameter of Lens | |||||||
| Model: | JY-12FA16FB-5MP | ||||||
 | Resolution | 5 Megapixel | |||||
| Image format | 1/2" | ||||||
| Focal length | 16mm | ||||||
| Aperture | F2.0 | ||||||
| Mount | M12 | ||||||
| Field Angle D×H×V( °) | " ° | 1/2" | 1/2.5" | 1/3.6" | |||
| D | 28.9 | 26.1 | 18.3 | ||||
| H | 23.3 | 24.7 | 14.7 | ||||
| V | 17.6 | 15.8 | 11.1 | ||||
| Optical Distortion | 0.244% | 0.241% | 0.160% | ||||
| CRA | ≤17.33 ° | ||||||
| M.O.D. | 0.3m | ||||||
| Dimension | Φ 14×16mm | ||||||
| Weight | 5g | ||||||
| Flange BFL | / | ||||||
| BFL | 5.75mm(in air) | ||||||
| MBF | 5.1mm(in air) | ||||||
| IR Correction | Yes | ||||||
| Operation | Iris | Fixed | |||||
| Focus | / | ||||||
| Zoom | / | ||||||
| Operating temperature | -20℃~+60℃ | ||||||

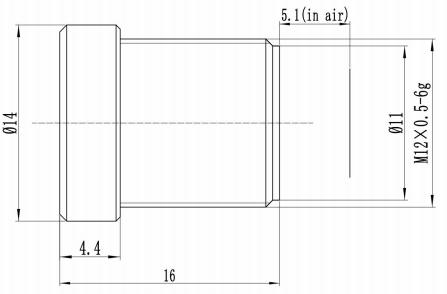

| Size | |||||||
 | |||||||
| Size tolerance (mm): | 0-10±0.05 | 10-30±0.10 | 30-120±0.20 | ||||
| Angle tolerance | ±2 ° | ||||||
Product Features
Focal length:16mm
Large format: Sensors matchable to 1/2 "
Mount type:M12*P0.5
High resolution: 5 million pixels
Compact appearance: compact design，facilitating installation and disassembly
Wide range of operation temperature: Excellent high and low temperature performance, operation temperature from -20℃ to +60℃.
Application Support
If you need any support in finding suitable lens for your camera, please do kindly contact us with further details, our highly skilled design team and professional sales team would be glad to assist you. We are committed to providing customers with cost-effective and time-efficient optics from R&D to finished product solution and maximize the potential of your vision system with the right lens.
