In the field of miniature optical design, engineering departments often face the challenge of capturing high-quality images through extremely restricted physical apertures. The Flat P.H. Lens has emerged as a preferred solution for applications where the imaging system must remain completely flush with its mounting surface. Unlike traditional pinhole lenses that feature a conical or protruding front element, this configuration utilizes a flat front optical surface. This allows for seamless mechanical integration, reducing the likelihood of physical damage, tampering, or environmental contamination in demanding operational environments.
For B2B buyers and system integrators, selecting the appropriate optical components involves balancing mechanical constraints with optical performance. Achieving clear imaging through a tiny, flat aperture requires a comprehensive understanding of light behavior, sensor compatibility, and material characteristics. This article explores the design principles, common integration challenges, and customized solutions associated with these specialized optical systems.

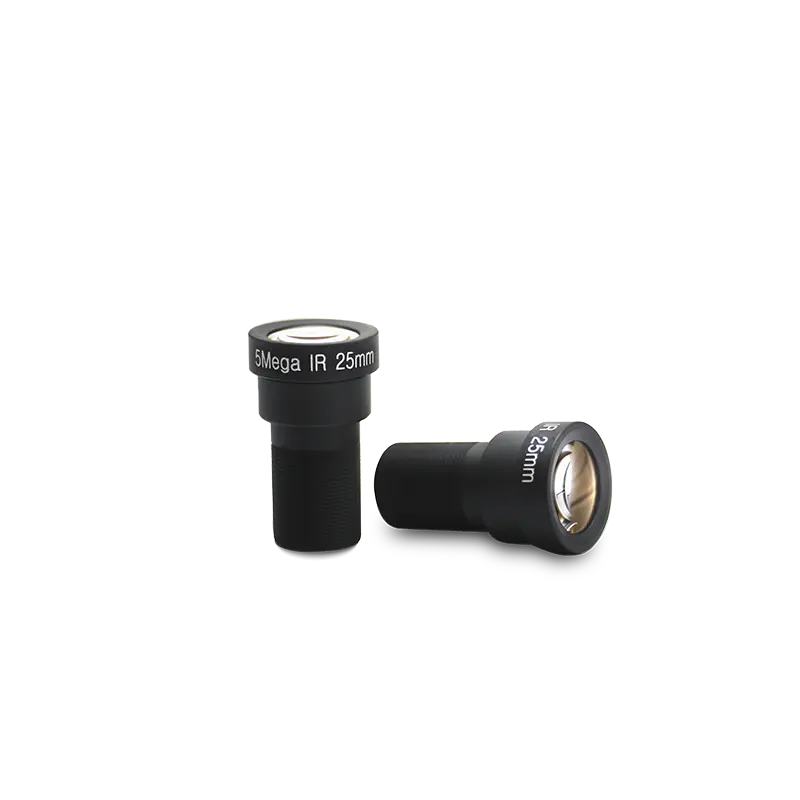

Structural and Optical Principles of the Flat P.H. Lens
The primary distinguishing feature of a Flat P.H. Lens is its flat front element, which sits flush against the external housing of the device. From an optical physics perspective, this flat geometry alters how light enters the lens assembly compared to curved or conical designs. Standard lenses use curved outer elements to immediately bend light rays, whereas a flat front surface relies entirely on the internal elements to manage wide-angle light paths and correct optical aberrations.
The internal configuration of these lenses typically consists of multiple micro-glass elements arranged in a precise sequence. Because the front window is flat, the light entering at oblique angles faces a longer path through the glass medium before reaching the corrective internal optics. This requires precise calculation of the refractive index of each glass element to ensure that light rays are focused accurately onto the focal plane without introducing severe degradation at the image corners.
The Role of Modulation Transfer Function (MTF) and Resolution
Evaluating the performance of a Flat P.H. Lens requires a close look at its Modulation Transfer Function (MTF) curve. The MTF measuring system quantifies how well the lens preserves contrast from the subject to the sensor at various spatial frequencies. With miniature flat pinhole optics, maintaining high contrast at the outer edges of the image is particularly challenging.
Because the physical aperture is small, diffraction limits can significantly degrade the image quality if the lens is not designed correctly. By utilizing premium glass substrates and high-precision manufacturing tolerances, Jinyuan designs these lenses to maintain an acceptable MTF profile across the entire sensor surface. This ensures that fine details, such as text on documents or facial features, remain legible even near the boundaries of the field of view.
Managing Stray Light and Internal Reflections
Stray light and internal reflections represent a constant challenge in compact optical assemblies. When light strikes a flat glass surface at a steep angle, a portion of that light reflects internally instead of passing through to the sensor. This can lead to ghosting, flare, and a general reduction in contrast.
Addressing this issue requires a combination of physical masking and advanced coating methods. Internal barrel design plays a significant role; the use of non-reflective, matte-black internal spacers and micro-grooves helps absorb stray light before it can reach the image sensor. Additionally, applying multi-layer anti-reflective coatings to each internal glass-to-air interface minimizes these internal reflections, preserving image clarity under challenging lighting conditions.
Engineering Pain Points in Miniature Pinhole Systems
When integrating a Flat P.H. Lens into an industrial or security system, design engineers frequently encounter specific performance limitations. Understanding these pain points is necessary to make informed decisions during the component selection and customization phases.
Vignetting and the Cosine Fourth Law
A primary optical challenge with flat-front pinhole designs is vignetting, which manifests as a gradual darkening of the image toward the corners. This phenomenon is governed by the cosine fourth law of illumination, which dictates that the light intensity falling on a sensor decreases rapidly as the angle of incidence increases.
With a Flat P.H. Lens, this effect is compounded because the flat entrance window physically restricts the apparent aperture area when viewed from an angle. To mitigate this natural physical limitation, the internal optical layout must be designed to increase relative illumination. This is achieved by enlarging the rear optical elements and adjusting the exit pupil position, directing more light toward the periphery of the image sensor to balance the overall exposure.
Geometric Distortion in Wide-Angle Formats
Many applications require a wide field of view (FOV) to monitor large areas through a single pinhole. However, wide-angle pinhole lenses are naturally prone to barrel distortion, where straight lines appear curved. In automated inspection systems or facial recognition setups, this distortion can interfere with analytical software algorithms.
Correcting this distortion optically within a compact, flat-front envelope requires sophisticated lens design. Integrating aspherical glass elements can help correct these geometric anomalies, delivering a flat field with minimal distortion. This allows software systems to process images directly without requiring high levels of digital correction, which can introduce processing latency and pixel stretching.
Customization and Material Selection at Jinyuan
Standard off-the-shelf optics rarely meet the exact physical and environmental demands of specialized industrial or security applications. Jinyuan provides customized Flat P.H. Lens solutions tailored to the specific operational environments of B2B clients.
Substrate Selection: Depending on the thermal and chemical exposure of the application, optical glass like N-BK7, fused silica, or specialized high-index glasses are selected to ensure thermal stability and high transmission.
Precision Coatings: Beyond standard anti-reflective coatings, we apply customized bandpass, infrared-cut, or hard hydrophobic coatings to protect the flat front surface from dust, moisture, and cleaning friction.

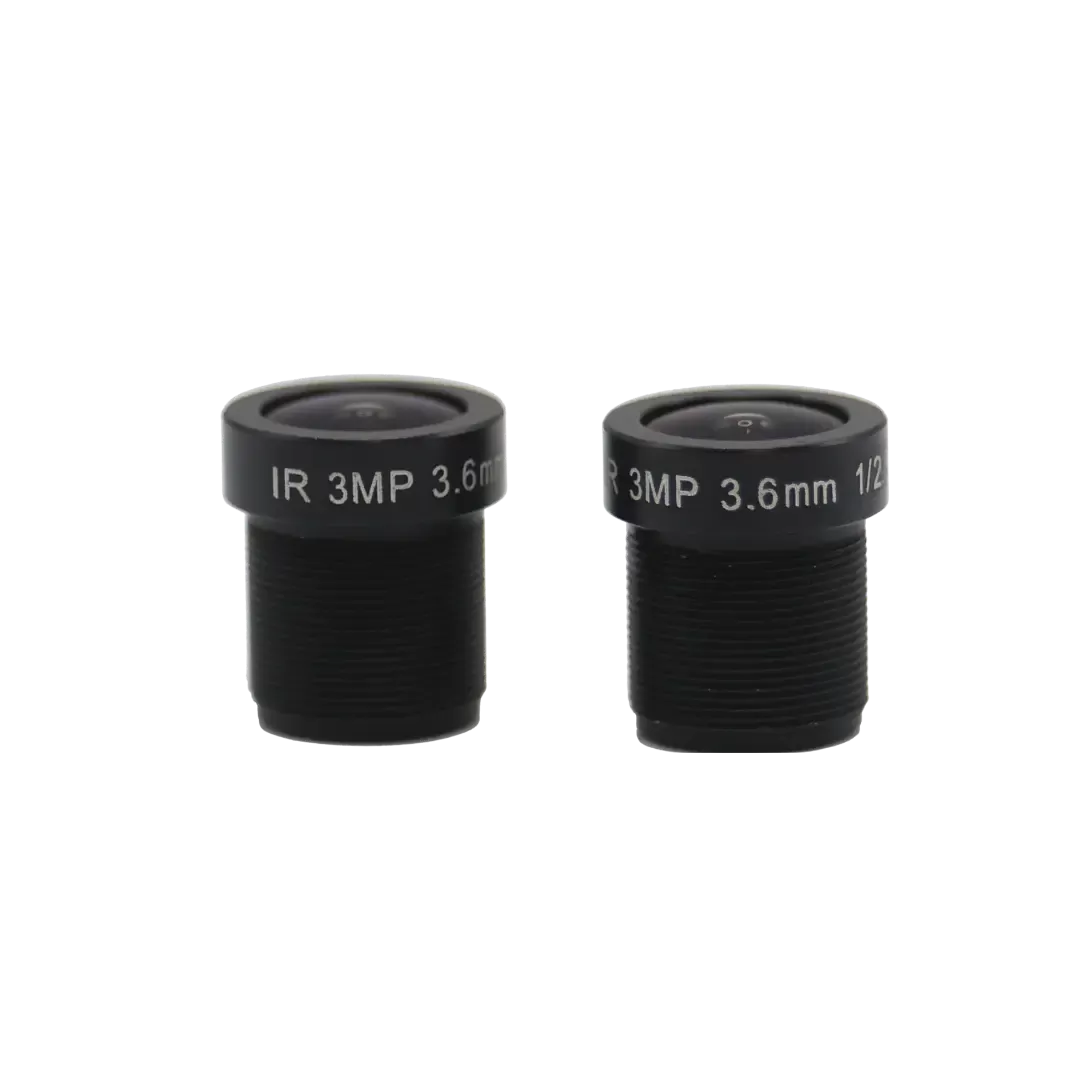

Mechanical Housing: Customized brass, aluminum, or stainless-steel barrels are machined to meet precise thread standards (such as M12x0.5, M9, or custom pitches) to ensure secure integration into proprietary camera housings.
When operating in high-temperature industrial environments, plastic lenses can suffer from thermal drift, causing the focus point to shift. Jinyuan focuses primarily on all-glass designs to guarantee that the focus remains stable across a wide temperature range, ensuring reliable performance in continuous-operation systems.
Applications of Flat P.H. Lens Systems in Industry
The flush-mounting capability and discrete form factor of the Flat P.H. Lens make it a valuable component across multiple commercial and industrial sectors.
Financial Self-Service Terminals
Automated teller machines (ATMs) and self-service kiosks operate in public spaces where security hardware must remain protected from vandalism. A Flat P.H. Lens can be installed directly behind a tiny opening in the metal bezel of the terminal. Because the front surface is completely flat, it leaves no protruding parts that can be pried or damaged, protecting the internal sensor assembly while monitoring user interactions for fraud prevention.
Industrial Machine Vision and Process Monitoring
In automated manufacturing, space inside processing chambers is often extremely limited. Robotic arms, high-vibration sorting machines, and vacuum chambers require compact cameras to monitor operations. A flat pinhole lens allows the imaging system to be mounted flush with the chamber wall, preventing contact with moving mechanical components and protecting the lens from debris, oil spray, or chemical exposure.
Discrete Building Security and Access Control
Modern commercial buildings often integrate imaging systems directly into entryways, intercom panels, or smart access control readers. A Flat P.H. Lens allows these cameras to remain virtually invisible to visitors, maintaining the clean aesthetic of the architectural design while providing a clear, wide-angle view of the entry area for security personnel.
Integration Guide for Structural and Optical Engineers
Successful implementation of a Flat P.H. Lens depends heavily on correct physical alignment and mechanical tolerances during system assembly. Even a minor misalignment can lead to severe mechanical vignetting, clipping the corners of the active image area.
When designing the outer enclosure, the thickness of the front plate must match the mechanical working distance of the lens. If the mounting plate is too thick, it will act as a physical collar, restricting the incoming light cone. Engineers should chamfer the internal edge of the mounting hole to match the angular field of view of the lens. This design approach prevents the enclosure from blocking light rays while allowing the flat front element of the lens to sit perfectly flush with the exterior face of the device.
Additionally, focus retention under mechanical stress is a common concern. Miniature lenses often utilize fine threads for focus adjustment during the assembly phase. To prevent focus drift caused by ambient vibrations or thermal expansion, designers should specify fine-threaded locking rings or allocate space for high-durability thread-locking adhesives that do not outgas and contaminate the optical surfaces.
Frequently Asked Questions
Q1: What is the main structural difference between a Flat P.H. Lens and a cone pinhole lens?
A1: A cone pinhole lens has a protruding, conical front element designed to push through small openings in thick panels. A Flat P.H. Lens has a flat front surface designed to mount completely flush with flat surfaces, making it less visible and more resistant to physical impact or environmental accumulation.
Q2: How does a Flat P.H. Lens handle low-light environments?
A2: Due to the small physical aperture required to maintain depth of field and a compact profile, these lenses typically have higher F-numbers (such as F/4.0 or F/5.6), which reduces light throughput. For low-light applications, it is recommended to pair the lens with high-sensitivity image sensors or supply auxiliary lighting, such as infrared illumination.
Q3: Can these lenses be customized to support near-infrared (NIR) wavelengths?
A3: Yes. Jinyuan can apply specialized anti-reflective coatings designed for NIR wavelengths or install dual-band coatings that allow both visible and 850nm/940nm infrared light to pass cleanly, supporting clear daytime and night-time imaging.
Q4: What image sensor formats are compatible with a Flat P.H. Lens?
A4: These lenses are typically designed for compact sensor formats, such as 1/3-inch, 1/2.7-inch, or 1/4-inch CMOS sensors. Custom designs can be developed to match larger sensor dimensions while managing the associated vignetting and distortion profiles.
Q5: How do you prevent internal lens fogging in outdoor installations?
A5: Internal fogging is caused by moisture trapped within the lens barrel during assembly. Jinyuan assembles these optical systems in controlled cleanrooms with regulated humidity levels and can provide sealed, nitrogen-purged housings to ensure dry, stable internal conditions in outdoor environments.
Submit Your Optical Integration Inquiry
Selecting and integrating the right optical components requires careful attention to physical constraints, sensor specifications, and material performance. Jinyuan works closely with B2B clients to design and manufacture custom Flat P.H. Lens assemblies that meet specific industrial and security demands. If you require a tailored optical solution for your next project, please contact our engineering team to submit your detailed inquiry and discuss your custom requirements.
