1. Why Lens Geometry Governs Optical Performance
Geometry dictates how light rays refract at each optical boundary. The physical shape determines how ray paths deviate from the paraxial approximation, causing optical aberrations.
Using the wrong lens type introduces wavefront distortion, astigmatism, or spherical error. These aberrations degrade image sharpness and broaden laser focal spots.
Optimizing optical geometry early reduces the number of elements needed in an optical assembly. Fewer surfaces increase total throughput, lower system weight, and reduce overall assembly costs.
2. Core Precision Lens Types by Optical Geometry
Standard and custom optics split into several distinct geometric categories. Each geometry addresses specific conjugate setups, wavefront tolerances, and spectral requirements.
Singlet Lenses
Singlets feature two polished surfaces and a single homogeneous substrate. They provide high optical transmission and straightforward alignment at lower costs.
- Plano-Convex (PCX): PCX lenses have one flat surface and one convex spherical surface. They generate positive focal lengths and excel when focusing collimated light or collimating a divergent point source. To minimize spherical aberration, always orient the curved face toward the infinite conjugate.
- Double-Convex (DCX): DCX lenses feature two symmetric outward curves. They are the ideal lens type for finite conjugate imaging where the object distance equals the image distance (a 1:1 conjugate ratio).
- Plano-Concave (PCV): Featuring one planar face and one inward-curving spherical face, this negative-focal-length lens diverges incident beams. Optical systems use them for beam expansion, projection displays, and focal-length reduction in existing assemblies.
- Double-Concave (DCV): Symmetrical inward curves produce divergent power. DCV optics handle diverging beam paths in optical balance setups and beam expanders working at finite conjugates.
- Meniscus: Meniscus lenses contain one convex face and one concave face. When combined with another lens type, a positive or negative meniscus lens minimizes spherical aberration and coma without adding significant distortion.
Aspheric Lenses
Unlike spherical optics, which maintain a constant radius of curvature across their surface, an aspheric lens uses a complex surface profile. The radius changes continuously from the optical center to the peripheral edge.
This varying geometry eliminates spherical aberration. A single aspheric lens type can replace three to four spherical singlets in demanding applications. Aspherics are widely used in fiber coupling, high-power diode collimation, and compact objective designs with high numerical apertures.
Cylindrical Lenses
Cylindrical lenses feature curvature along a single axis, shaping light in one dimension while leaving the perpendicular axis unchanged. The surface profile is shaped like a section of a cylinder rather than a sphere.
This one-dimensional focus makes the cylindrical lens type indispensable for generating thin laser lines from round beams. They also correct astigmatism in laser diodes and shape elliptical beams into circular profiles.
Achromatic and Apochromatic Lenses
Single glass elements suffer from chromatic dispersion because the refractive index varies across different wavelengths. This dispersion causes blue light to focus closer to the lens than red light.
An achromatic doublet cements a low-index crown glass element to a high-index flint glass element. This geometry matches focal points across two selected wavelengths (typically blue and red), sharply reducing primary chromatic aberration. For rigorous scientific imaging, apochromatic triplets correct chromatic aberration across three discrete wavelengths and minimize secondary spectrum errors.
3. The Matching Matrix: Mapping Lens Types to Optical Specifications
Selecting the best optical component requires cross-referencing your operating parameters against the mechanical and optical characteristics of each lens type.
| Lens Type | Primary Geometry | Ideal Conjugate Ratio | Primary Aberration Correction | Relative Cost |
|---|---|---|---|---|
| Plano-Convex (PCX) | One flat, one convex | Infinite (5:1 to ∞) | Minimal spherical error when oriented correctly | Low |
| Double-Convex (DCX) | Symmetrical convex | 1:1 (finite) | Coma and distortion balance at 1:1 | Low |
| Plano-Concave (PCV) | One flat, one concave | Infinite (diverging) | Beam divergence with minimal spherical error | Low |
| Aspheric | Non-spherical curve | Infinite or high-NA focus | Complete elimination of spherical aberration | Moderate to High |
| Cylindrical | Curved in 1 dimension | 1D focus / line generation | Circularization of anamorphic beams | Moderate |
| Achromatic Doublet | Cemented pair (Crown + Flint) | Infinite to moderate conjugate | Eliminates primary chromatic aberration | Moderate |
Parameter 1: Conjugate Ratio
The distance from your object to the lens, compared to the distance from the lens to your image plane, determines your conjugate ratio. For infinite conjugates (collimating a source or focusing distant light), choose a PCX or aspheric lens type.
For symmetric finite conjugates, choose a DCX or symmetric doublet. Deviating from the recommended conjugate orientation introduces severe off-axis coma and spherical aberrations.
Parameter 2: Spectral Bandwidth
For monochromatic applications, such as single-wavelength laser processing, choose singlets or aspherics made from optical-grade fused silica. You do not need to correct for chromatic dispersion in single-wavelength systems.
For polychromatic or white-light applications, such as machine vision inspection and fluorescence microscopy, choose an achromatic lens type. Using a standard singlet with broadband light produces blurry, color-fringed images.
Parameter 3: Numerical Aperture and Spot Size
High numerical aperture (NA > 0.4) systems suffer from extreme spherical aberration when using spherical singlets. Peripheral rays focus closer to the optic than paraxial rays, blurring the focal point.
When you need diffraction-limited performance at high numerical apertures, an aspheric lens type provides the cleanest focal spot. This allows you to collect and focus more light without compromising wavefront quality.
4. Critical Manufacturing and Material Tolerances
Selecting an optical geometry is only the first step. You must also evaluate raw substrates and fabrication tolerances before placing an order.
Substrate selection depends heavily on your operating transmission window and thermal conditions:
- N-BK7: The standard optical glass for visible and near-infrared applications, balancing cost and optical clarity.
- Fused Silica: Preferred for ultraviolet transmission, high-power lasers, and environments with high thermal fluctuations due to its low coefficient of thermal expansion.
- Infrared Crystals (Germanium, Silicon, Zinc Selenide): Opaque in the visible spectrum but essential for long-wave infrared thermal imaging and CO2 laser systems.
Surface quality also dictates lens performance. Precision applications follow metrology and optical inspection standards like MIL-PRF-13830B. High-power laser trains require a scratch-dig rating of 20-10 or 10-5 to avoid laser-induced damage.
At Jinyuan, our production lines manufacture custom lens geometries using computer-controlled polishing and non-contact profilometry. We verify surface figure accuracy down to fractional wavefront errors of λ/10.
Anti-reflective (AR) coatings are equally vital. Uncoated glass surfaces reflect roughly 4% of incident light per surface. Adding a multi-layer broadband anti-reflective coating reduces surface losses below 0.5%, maximizing transmission through complex assemblies.
5. Industry Applications: Choosing the Right Lens
Different optical sectors require distinct combinations of lens geometry and glass types.

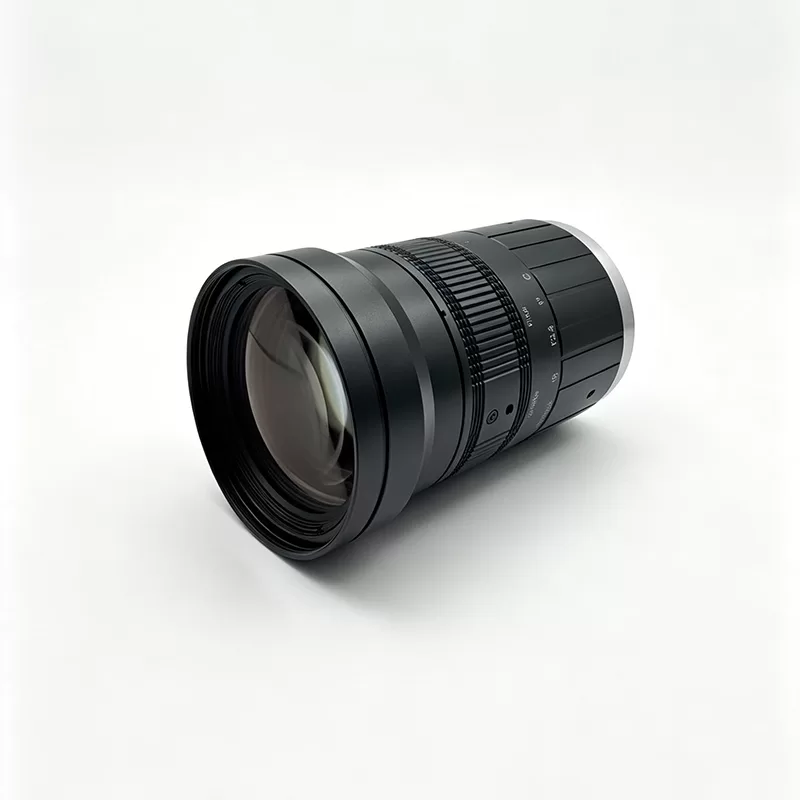

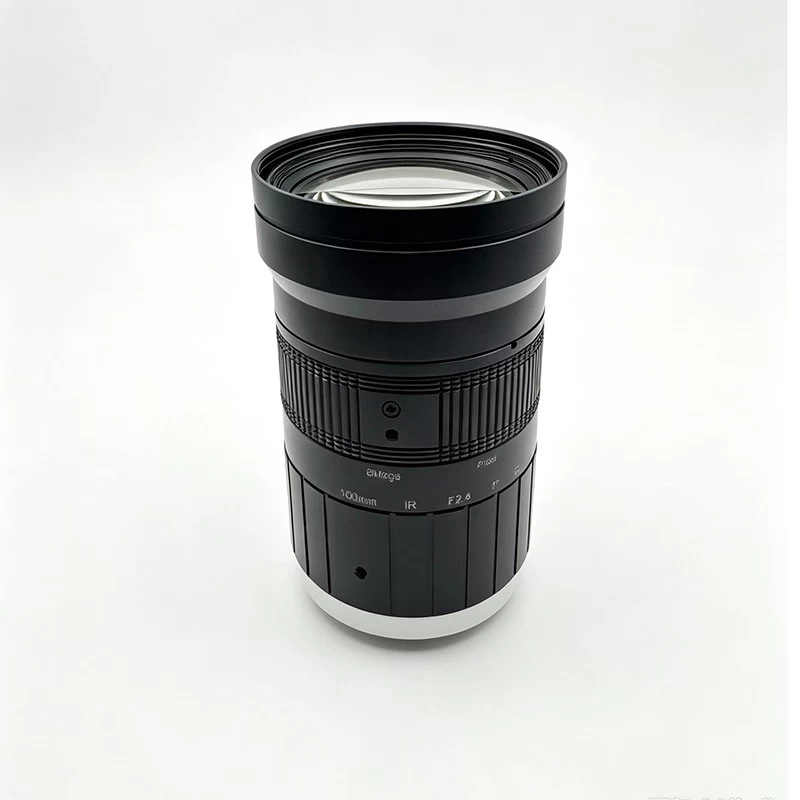

Machine Vision and Automated Inspection
Machine vision setups demand distortion-free images across visible sensors. In this field, the achromatic doublet is the standard lens type for relay optics, paired with an aperture stop to balance depth of field.
For 3D profiling and sheet-of-light triangulation, engineers rely on cylindrical lenses. They project clean, uniform laser lines across moving inspection conveyors.
Biomedical Instrumentation and Endoscopy
Diagnostic tools like endoscopes require miniaturized optics with high light-gathering efficiency. Designers rely on high-index PCX singlets and micro-achromats to deliver clear images through small footprints.
In flow cytometry and DNA sequencing, precision aspheric optics focus excitation lasers into tightly defined focal volumes, maximizing fluorescence excitation without background noise.
High-Power Laser Material Processing
Fiber laser welding and cutting systems deliver kilowatts of power through narrow optical trains. Standard doublets cannot handle these beam intensities because cement layers break down under heat.
Instead, laser cutting heads rely on air-spaced aspheric doublets or fused silica aspherics. These optics provide high laser-induced damage thresholds (LIDT) while maintaining tight focus control on the workpiece.
6. Selection Checklist for Optical Engineers
Before sending optical specifications to your manufacturing partner, review this decision checklist:
- Defined operating wavelength: Is it monochromatic (laser) or broadband (imaging)?
- Calculated conjugate ratios: Is your object at infinity or a finite working distance?
- Wavefront tolerance: Does your project need a diffraction-limited spot, or can it tolerate minor spherical error?
- Clear aperture and diameter constraints: Have you accounted for optical mounting edge thicknesses?
- Environmental conditions: Will the optic face high laser power, mechanical shock, or extreme temperatures?
Carefully evaluating these points prevents costly redesigns and ensures you pick the right optical component on the first attempt.
Frequently Asked Questions
Q1: What is the main operational difference between a plano-convex and a double-convex lens type?
A1: The difference lies in their optimal conjugate ratios. A plano-convex lens minimizes spherical aberration when focusing collimated light (infinite conjugate). A double-convex lens works best at symmetric finite conjugates near 1:1, where its balanced curves evenly split ray bending across both surfaces.
Q2: When should I choose an aspheric lens over an achromatic doublet?
A2: Choose an aspheric lens when working with monochromatic light that requires a high numerical aperture, a compact single-element design, or a diffraction-limited laser spot. Choose an achromatic doublet when your optical system operates across broadband or multi-wavelength spectra and needs color correction.
Q3: How does lens orientation affect aberration performance in plano-convex optics?
A3: Orientation directly affects spherical aberration. For focusing collimated light, the curved surface must face the incident beam. Reversing the optic—placing the flat surface toward the parallel light—causes severe refraction at a single boundary, drastically increasing spherical aberration.
Q4: Why are cylindrical lenses specified by optical axis rather than just focal length?
A4: Cylindrical lenses focus light in only one transverse direction while leaving the orthogonal axis unchanged. You must specify the orientation of the plano-axis relative to the mounting reference to ensure proper alignment with your incoming beam profile or sensor array.
Q5: Can I use an achromatic doublet for ultraviolet laser applications?
A5: Generally, no. Most achromatic doublets use optical adhesives that absorb ultraviolet light, which degrades the cement layer and causes optical solarization. For ultraviolet systems, use air-spaced doublets, UV-grade fused silica singlets, or UV-optimized aspheric lenses.
