For decades, security and monitoring professionals have faced a persistent trade-off: wide-area coverage versus image detail. Conventional lenses—whether fixed focal or varifocal—force system integrators to choose between narrow fields of view (FOV) with high resolution or wide-angle views that sacrifice edge clarity and introduce distortion. The emergence of the panoramic monitoring lens (used naturally in context) has changed this equation, but not every product on the market delivers true optical excellence. As a B2B optical solutions provider, we have examined the engineering realities, application-specific pain points, and custom approaches that separate genuine wide-area imaging from marketing hype.

This guide provides a deep, practical analysis of panoramic monitoring lens design, performance metrics, selection criteria, and the value of tailored optical manufacturing. Whether your project involves intelligent traffic hubs, industrial automation, or perimeter protection, understanding the underlying optics will help you avoid costly blind spots and post-installation issues.

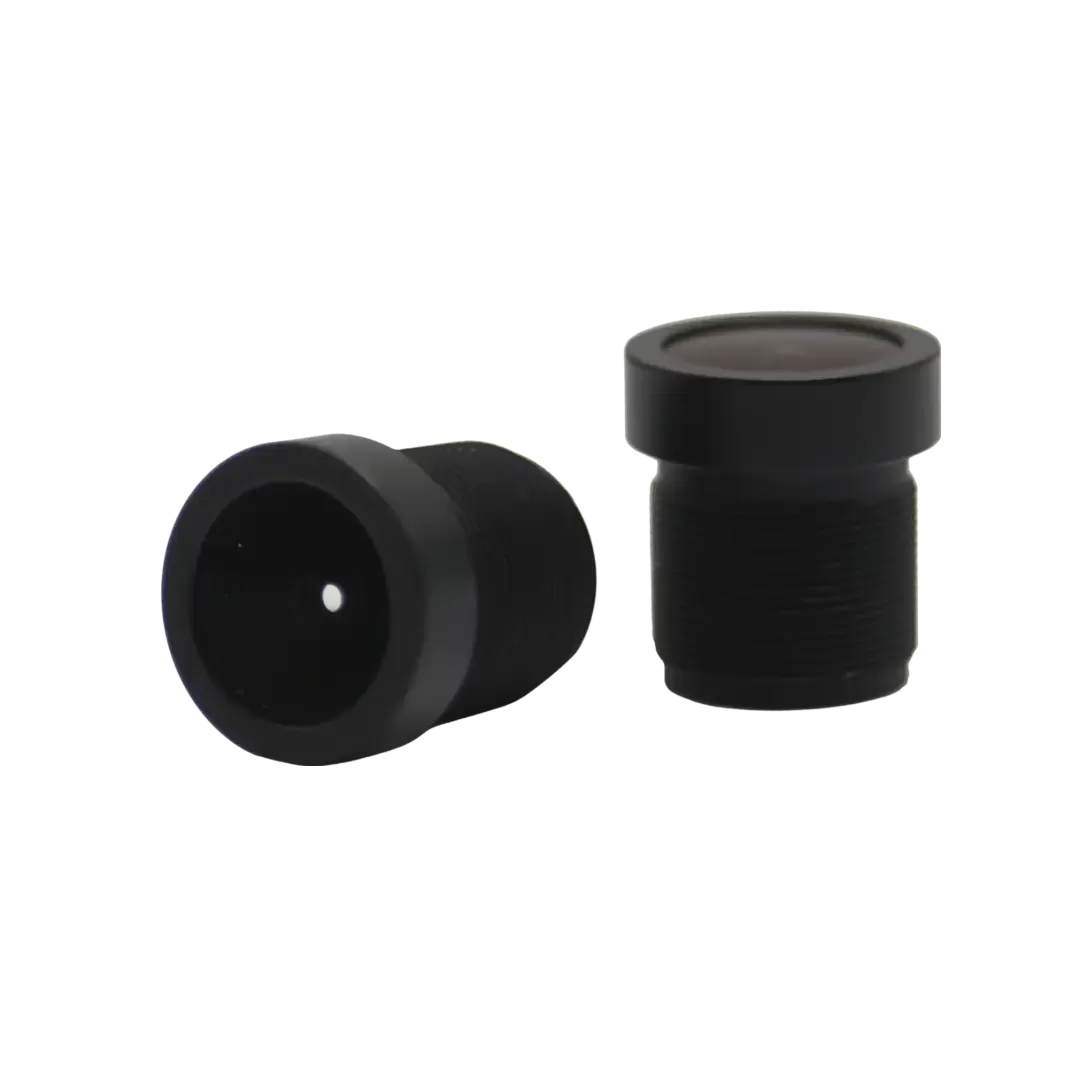

1. Optical Architectures: How a Panoramic Monitoring Lens Achieves 360° Awareness

Different wide-area monitoring applications demand different optical paths. The term panoramic monitoring lens is often used broadly, but there are three dominant architectures in professional-grade systems:

• Single-sensor fisheye lenses – Using extreme barrel distortion to compress a hemispherical (≥180°) view onto a flat image sensor. These require robust electronic dewarping and correction algorithms. Edge resolution and illumination falloff are the main challenges.

• Multi-sensor stitching systems – Multiple lens-sensor modules (e.g., 2×180° or 4×90°) with overlapping FOVs, followed by software stitching. This approach preserves higher pixel density across the panorama but demands precise optical alignment and consistent color/contrast across modules.

• Catadioptric panoramic lenses – Combining reflective and refractive elements to fold the optical path, achieving 360° horizontal FOV with a single sensor. These systems suffer from central blind spots and complex manufacturing tolerances.

For B2B applications requiring reliability under varying lighting and temperature conditions, single-sensor fisheye designs with customized aspherical elements are often the most cost-effective, provided the lens delivers controlled distortion mapping and high edge MTF (Modulation Transfer Function). At Jinyuan, we have developed glass-molded aspheric surfaces that maintain image consistency from center to periphery, a crucial factor for any panoramic monitoring lens intended for 24/7 operation.

2. Critical Performance Parameters Beyond FOV

Selecting a panoramic monitoring lens based solely on the field of view leads to disappointing field outcomes. Professional buyers and engineers must evaluate these five parameters:

• Relative illumination & f/θ distortion pattern – Many panoramic lenses show severe vignetting (drop in edge brightness >50%) and non-linear mapping, making object recognition impossible at the periphery. Look for specified illumination >60% at 80% image height.

• MTF consistency across field angles – A quality lens maintains MTF at 100 lp/mm above 0.3 from center to corners. Low edge MTF directly compromises AI-based detection algorithms.

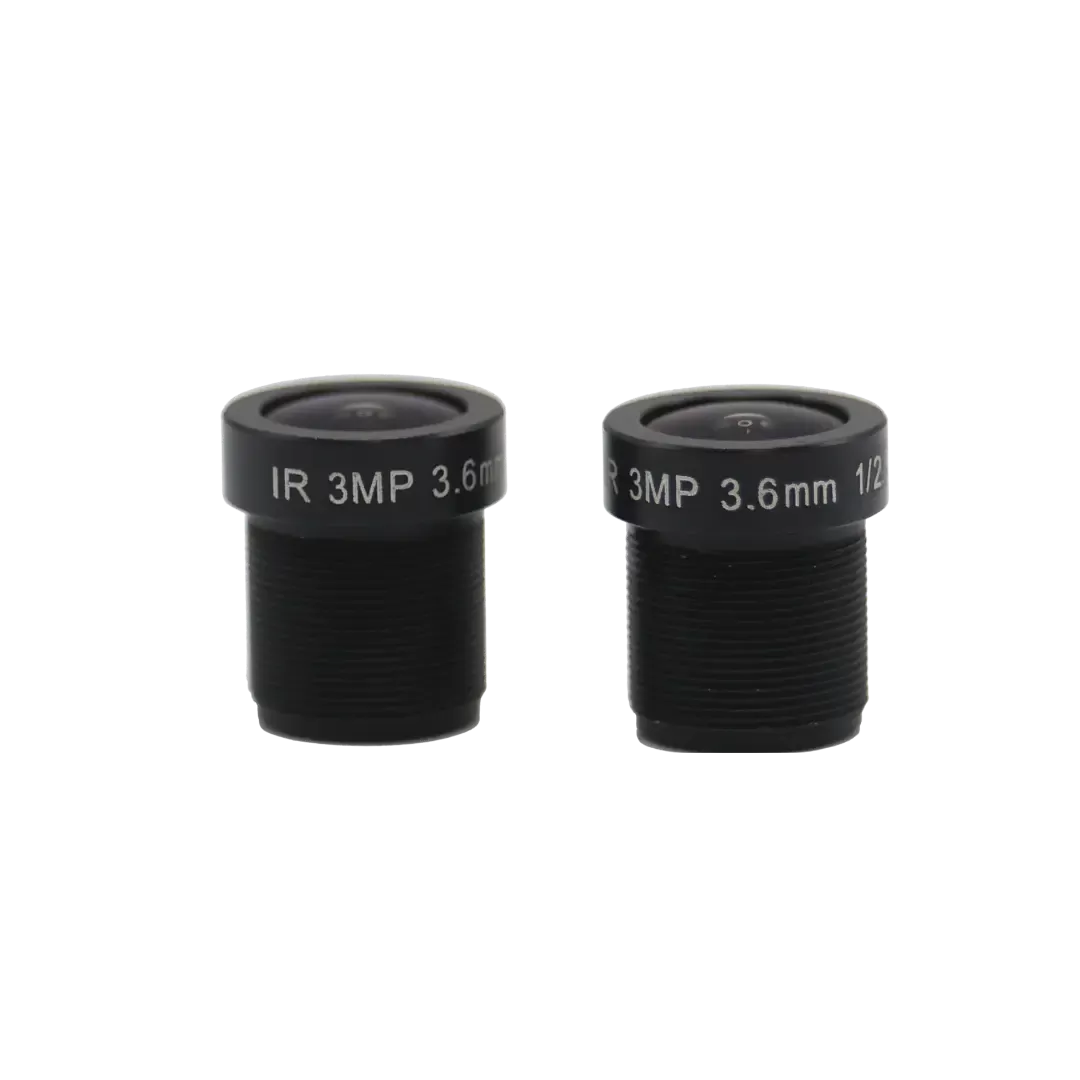

• Day/night (IR) focus shift – When a camera switches to IR cut-filter removal (night mode), some lenses shift focus due to chromatic aberration in the glass materials. A true professional panoramic monitoring lens employs athermalized and IR-corrected designs, often using low-dispersion glass and hybrid aspheric elements.

• Environmental sealing and temperature stability – Outdoor monitoring requires IP67 or IP69 sealing. More importantly, the lens barrel design must accommodate thermal expansion without altering back focal length (thermal defocus).

• Back focal length (BFL) tolerance – For integration with different sensor sizes (1/1.8", 1/2", etc.), a lens with adjustable or standardized BFL (±0.05mm precision) reduces assembly failures.

These parameters are not always provided in standard datasheets. When working with a custom optics partner like Jinyuan, engineers can request full optical design reports, including ray aberration plots and thermal defocus simulations, ensuring the chosen panoramic monitoring lens aligns with the actual deployment environment.

3. Industry Applications Where Optical Quality Directly Impacts ROI

3.1 Transportation Hubs (Airports, Railways, Seaports)

Baggage claim areas, parking structures, and departure lounges require panoramic views without blind spots. A low-distortion panoramic monitoring lens reduces the number of cameras by up to 60% compared to traditional box cameras. However, the lens must maintain facial recognition accuracy at 3-5 meters from the edge of the frame. Our experience shows that lenses with barrel distortion >15% (uncorrected) produce excessive stretching, fooling people-counting algorithms. Custom lens designs with tailored f-theta mapping can reduce post-correction artifacts.

3.2 Smart Manufacturing and Warehouse Automation

In logistics, automated guided vehicles (AGVs) and inventory drones use panoramic monitoring lenses for simultaneous localization and mapping (SLAM). These lenses require extremely low lateral chromatic aberration (<1 pixel across 5MP sensors) to ensure visual odometry accuracy. Standard off-the-shelf panoramic lenses often introduce color fringing at the edges, causing feature drift. Custom glass-only designs with apochromatic correction are available through specialized manufacturers.

3.3 Perimeter Protection for Critical Infrastructure

Power plants, data centers, and border monitoring demand panoramic surveillance with very low light sensitivity (F1.4 or faster) and anti-fog coatings. A panoramic monitoring lens for these scenarios should include broadband anti-reflection (BBAR) coatings for 400–950nm, plus hydrophobic front elements. Without these, false alarms due to dew or lens flares degrade system trust.

4. The Hidden Costs of Standard Panoramic Lenses: Distortion, Calibration & Liability

System integrators often purchase “budget” panoramic lenses, only to discover that software dewarping consumes massive processing power (requiring expensive GPUs). Worse, leftover distortion can cause legal liability when recorded footage fails to identify individuals or license plates at the edges. Consider a real-world scenario: a parking garage with a claimed 180° lens but actual edge resolution <0.2 cycles/pixel – any incident captured would lack forensic value. This gap between marketing claims and optical physics is why B2B purchasers are shifting toward verifiable, custom-engineered solutions.

Another hidden cost is the complexity of multi-camera calibration for stitching-based systems. With a single-sensor panoramic monitoring lens that has a precise polynomial distortion model, calibration becomes a one-time factory step. But for multi-sensor arrays, each lens-sensor module must be individually aligned. Here, Jinyuan provides matched lens sets with measured decentering and tilt reports, reducing on-site calibration time from hours to minutes.

5. Custom Optical Design: When Off-the-Shelf Is Not Enough

After evaluating 40+ standard panoramic lens samples, many product teams realize that their specific requirements—unusual FOV (e.g., 220° instead of 180°), a custom spectral band (NIR-enhanced for low light), or mechanical constraints (M12 vs M16 mounts)—cannot be met by off-the-shelf catalogs. This is where optical custom development adds value. A typical custom project follows these steps:

• Requirement analysis – Defining FOV, sensor format (from 1/3" to 1" or APS-C), distortion type (equidistant, orthographic or stereographic projection), and environmental class.

• Optical design & tolerancing – Using Zemax or Code V to minimize RMS spot size and control cost via glass selection (e.g., molded aspherical vs. precision polished).

• Prototype and performance verification – Building 5-10 samples and measuring MTF, distortion grids, and through-focus response.

• Production and assembly support – Ensuring centration and active alignment jigs for your camera module assembly line.

As a manufacturer specialized in custom optics, Jinyuan has delivered panoramic monitoring lens designs with distortion reduced to under 3% before electronic correction, for uses ranging from 180° marine navigation to 360° retail analytics. The total cycle for a tailored design is typically 12-16 weeks, far shorter than many assume when shifting from off-the-shelf compromises.

6. Future Innovations: AI-Optimized Panoramic Optics and Liquid Lens Integration

Two trends are reshaping the panoramic monitoring lens market: AI-aware optical design and active focus control. In AI-aware design, the lens is optimized not just for human viewing but for machine vision tasks such as object detection heatmaps. For instance, the lens can deliver higher MTF in zones where people/vehicles are statistically most likely to appear, while allowing slightly lower resolution in sky or ceiling areas. This zone-optimized design reduces lens complexity and cost. Secondly, the integration of liquid lens elements allows a panoramic monitoring lens to refocus between near-field (2m) and far-field (50m+) without moving parts, crucial for rooms with varying depths. Custom manufacturers are now offering hybrid designs that include a sealed liquid lens group controlled via a driver IC. These innovations require close collaboration between optical engineers and system architects – a capability only available from dedicated custom optics houses.

Making a Data-Driven Choice for Wide-Area Monitoring

The decision to invest in a high-performance panoramic monitoring lens should be based on measurable metrics: MTF, distortion uniformity, IR focus shift, and environmental durability. Generic lenses might lower upfront costs but introduce operational inefficiencies, software processing bottlenecks, and forensic gaps. By partnering with a manufacturer that provides full optical transparency and custom capabilities, B2B buyers ensure their monitoring infrastructure delivers reliable coverage for a decade. Whether you are upgrading an existing security network or designing a new smart city sensor node, a properly specified panoramic monitoring lens transforms wide-area perception from a liability into a competitive advantage.
