In automated optical inspection (AOI) systems, capturing a broad scene without sacrificing pixel resolution across the entire field remains a persistent engineering challenge. Standard fixed-focal lenses force a trade-off between working distance and coverage area, often requiring multiple cameras or complex movement stages. The industrial inspection wide angle lens family solves this by delivering a large angular field of view (typically >75° to 110°) while maintaining edge-to-edge sharpness and controlled geometric distortion. This article examines optical design principles, real-world inspection pain points, quantitative selection parameters, and integration strategies — written from a specialist’s perspective for B2B procurement and engineering teams.

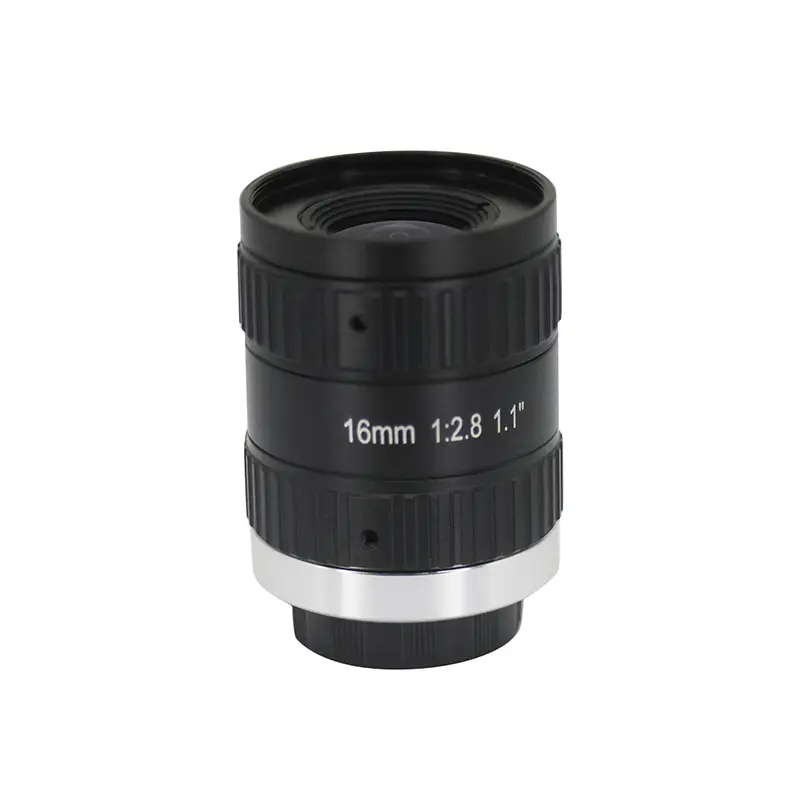

Defining the Industrial Inspection Wide Angle Lens – Beyond Simple Focal Length
Unlike consumer-grade wide lenses, an industrial inspection wide angle lens is evaluated on distortion curves, relative illumination, and modulation transfer function (MTF) consistency across the image plane. These lenses are built for machine vision sensors (1/1.8", 2/3", 1", or 4/3") and often incorporate C-mount or F-mount interfaces. Key differentiating factors include:
Low distortion architecture: Achieving < 1% TV distortion even at 100° diagonal FOV through asymmetric double-Gauss or retro-focus designs with aspherical elements.
Flat-field correction: Maintaining focus across a planar object (e.g., PCB, glass panel) from center to periphery — essential for dimensional metrology.
High relative illumination: >80% from center to corners to avoid vignetting in automated pass/fail decisions.
Broadband AR coatings: 400–1000nm transmission for multi-spectral illumination (white LED, red, or near-IR).
When a production line requires inspecting an area of 300 mm × 300 mm at a short working distance of 150 mm, a conventional lens would either fail to cover the full field or introduce significant barrel distortion. A properly specified industrial inspection wide angle lens captures the entire region in a single shot, reducing mechanical complexity and cycle time. For custom requirements such as extreme aspect ratios or underwater inspection windows, manufacturers like Jinyuan provide tailored optical designs that match exact sensor formats and illumination constraints.

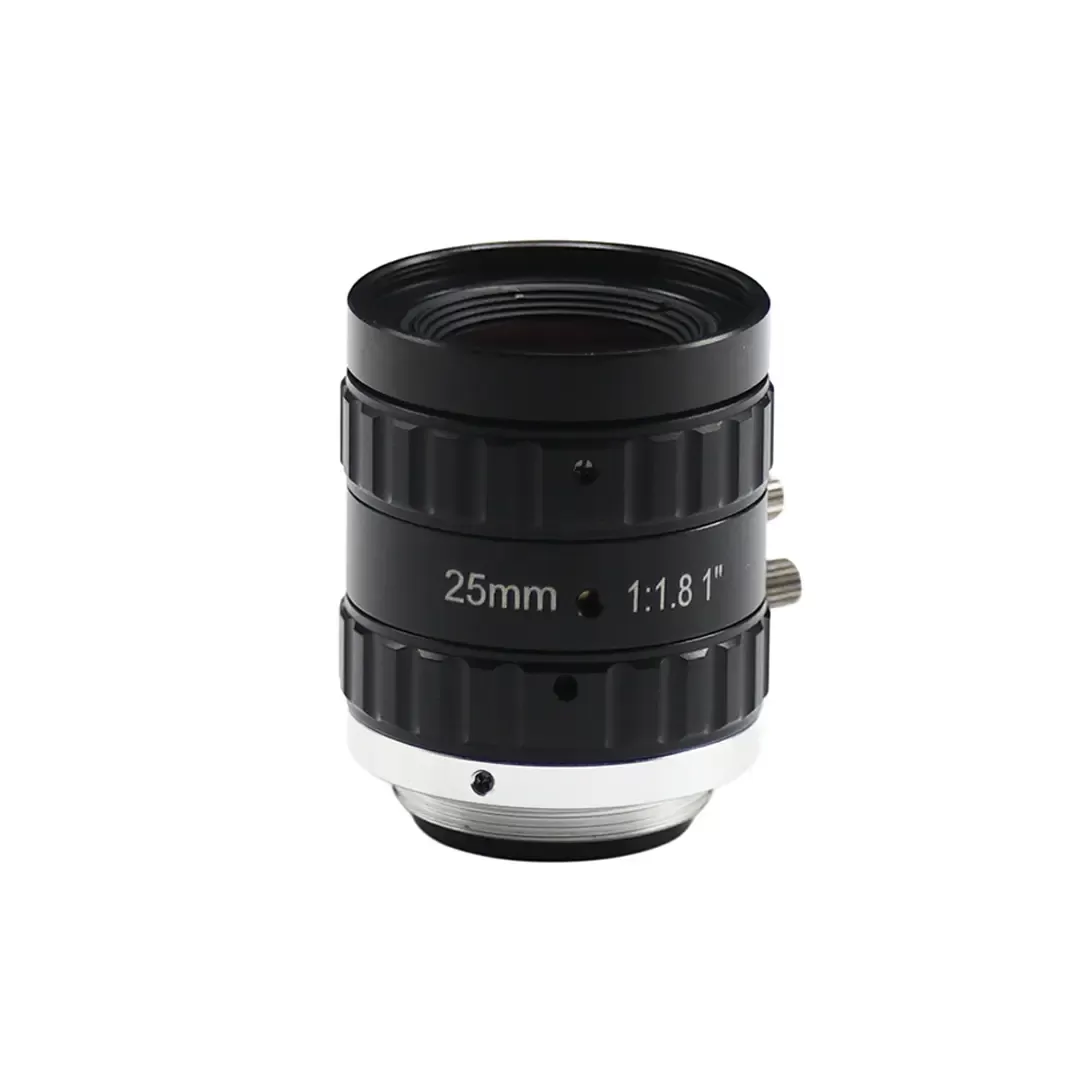

Optical Engineering Challenges and Solutions in Wide-Angle Inspection
1. Geometric Distortion and Its Effect on Measurement Accuracy
Distortion causes real-world coordinates to shift non-linearly in the image, leading to erroneous length, angle, or area calculations. In a standard wide lens, barrel distortion can exceed 5% at the edges. For industrial inspection wide angle lens applications requiring sub-pixel accuracy (e.g., hole position tolerance ±0.02 mm), such distortion is prohibitive. Solutions involve:
Implementing aspheric lens surfaces to correct coma and distortion simultaneously.
Using floating lens groups that adjust aberration balance across different working distances.
Combining hardware with lookup-table (LUT) based distortion correction models during image preprocessing.
A state-of-the-art industrial inspection wide angle lens for metrology-grade tasks achieves distortion < 0.5% across the entire FOV, verified by grid target measurements under monochromatic illumination. For high-volume electronics inspection, this precision eliminates false rejects caused by lens-induced warpage.
2. Field Curvature and Resolution Falloff
Field curvature pulls the focal plane into a curved surface, while the inspected object (e.g., flat solar wafer) is planar. The result: corners appear defocused even if the center is sharp. Advanced optical designs use a "reverse telephoto" configuration with a negative front group followed by a positive rear group to flatten the Petzval sum. Additionally, selectable back-focus adjustment allows fine-tuning for sensor cover glass thickness. When evaluating an industrial inspection wide angle lens, request MTF plots at 0.3, 0.6, and 1.0 field positions; an optimal design maintains MTF > 0.4 at 80 lp/mm across all fields.
Primary Applications Driving Demand for Wide-Angle Inspection Optics
The adoption of these lenses spans multiple industries, each with specific pain points resolved by large-field imaging.
PCB assembly AOI: Inspecting solder paste deposition and component placement across boards up to 400×500 mm. A single industrial inspection wide angle lens covers the entire panel, reducing scan time by 60% compared to a moving camera system.
Large-format glass (displays, automotive glazing): Detecting micro-scratches, bubbles, or coating uniformity. Lenses must work with backlight and high-resolution sensors (e.g., 12 MP) while maintaining telecentric-like illumination angle at the edges.
Battery electrode inspection: Web width up to 900 mm, where line-scan systems can be replaced by area-scan with wide lenses to detect edge burrs or coating voids. This reduces hardware cost and data bandwidth.
Food and pharmaceutical packaging: Checking cap placement and label integrity on multiple products within the same camera view. A wide-angle lens allows one camera to monitor an entire conveyor lane.
In each case, selecting the correct industrial inspection wide angle lens involves matching the lens’s maximum image circle to the sensor size, then calculating the required resolution (pixel/mm) based on defect size. For example, detecting a 0.1 mm defect with a 5-megapixel sensor covering 200×160 mm requires approximately 20 µm/pixel resolution — well within the lens’s resolving power if the MTF supports the Nyquist frequency.
Overcoming Common Field Integration Hurdles
Pain point: Uneven illumination at the periphery
Even with high relative illumination, real-world setups suffer from cosine-fourth falloff. Pair the industrial inspection wide angle lens with a collimated or dome illumination system that provides angle-matched intensity. Alternatively, flat-field correction algorithms in software can compensate, but this reduces dynamic range. For consistent results, lens manufacturers like Jinyuan offer optical designs with tailored exit pupil positions to improve compatibility with telecentric illuminators.
Pain point: Sensor resolution exceeds lens capability
Engineers often pair a 20 MP sensor with a low-cost wide lens, only to find no improvement in edge detail. Always verify that the lens’s optical resolution (in lp/mm) is at least 1.5× the sensor’s Nyquist frequency. For a 2.2 µm pixel pitch (≈227 lp/mm Nyquist), require a lens with MTF > 30% at 300 lp/mm. A genuine industrial inspection wide angle lens for high-resolution applications lists MTF charts and includes a specified maximum sensor format. If no data exists, the lens is not suitable for precision metrology.
Pain point: Calibration and distortion compensation drift over time
Temperature changes or vibration can shift lens element positions, altering distortion characteristics. Use mechanically locked focus and aperture rings, and integrate periodic field calibration using fiducial marks. For high-stability environments, ask suppliers about adhesive-set or screw-lock mechanics. Jinyuan supplies wide-angle lenses with locking mechanisms and thermal compensation data for applications from 0°C to 50°C.
Quantitative Selection Framework for Industrial Inspection Wide Angle Lens
To select the optimal lens, define five parameters:
Field of view (diagonal): FOV = 2 × arctan( (sensor diagonal / 2) / WD ), where WD = working distance. If required FOV exceeds 90°, wide-angle designs become necessary.
Distortion limit: Measurement tasks need <0.5% TV distortion; detection-only tasks tolerate up to 2% if corrected by software.
Aperture (f/#): Wider apertures (f/2.0–f/2.8) gather more light but reduce depth of field. Inspection of curved surfaces often requires f/5.6–f/8 for sufficient DOF.
Sensor format match: Lens image circle must exceed sensor diagonal by 5-10% to avoid vignetting.
Working distance range: Fixed-focus or adjustable? Many industrial inspection wide angle lens families offer a set screw for fine adjustment between 100 mm and infinity.
Example selection: For a 2/3" sensor (11 mm diagonal) inspecting a 250 mm diagonal field from 200 mm distance, required FOV angle = 2×atan(11/2/200) ≈ 31° — not requiring a wide lens. But if the same task requires 400 mm diagonal field from 200 mm, required angle ≈ 90°, thus an industrial inspection wide angle lens with 90° to 100° FOV is needed. Always verify the actual angular coverage; manufacturers often quote diagonal FOV for infinity focus, which decreases at short working distances. Ask for working distance-specific data.
Integration and Future-Ready Wide-Angle Systems
Modern vision systems increasingly use high-speed interfaces (GigE, 10GigE, or CoaXPress) and global shutter sensors. The lens must support resolution up to 10 µm pixel size and be able to resolve contrast at high spatial frequencies. Line-scan systems with wide-angle lenses are also emerging for continuous roll-to-roll inspection, requiring cylindrical or anamorphic optics. Additionally, embedded AI on smart cameras benefits from the reduced complexity of a single wide-angle capture rather than stitching multiple images. Manufacturers are now pairing industrial inspection wide angle lens designs with integrated liquid lens modules for autofocus across varying object heights.
When planning for longevity, select lenses with modular mount compatibility (C-mount, TFL-mount) and availability of spare optical elements. Reputable suppliers provide individual interferometric test reports for each lens unit — a sign of traceable quality assurance.
Frequently Asked Questions (FAQ)
Q1: What is the maximum field of view achievable with a industrial inspection wide angle lens without significant distortion?
A1: With current aspherical and multi-element designs, you can achieve up to 110° diagonal FOV while maintaining distortion below 1.5%. For metrology-grade (distortion <0.3%), the practical limit is about 75° to 90° depending on the working distance. Beyond that, either software correction is mandatory or you accept a slight increase in distortion (2-3%). Some specialized lenses for drone-based inspection allow 120°, but these are not recommended for sub-millimeter measurement.
Q2: How does the industrial inspection wide angle lens perform with telecentric illumination?
A2: Telecentric illuminators produce parallel light rays, which are ideal for edge detection but require the lens’s entrance pupil to be at infinity. Most wide-angle lenses have a finite entrance pupil position, causing a mismatch that reduces illumination efficiency at the margins. To solve this, choose a lens explicitly marked as "telecentric illumination compatible" or use a diffused backlight. Custom suppliers like Jinyuan can adjust the pupil position during the optical design phase for specific illuminators.
Q3: Can I use a standard CCTV wide-angle lens for industrial inspection?
A3: Not advisable. CCTV lenses are optimized for human observation under varying lighting, not for pixel-perfect measurement. They often have high distortion (>5%), variable aperture that drifts, and no MTF guarantee. An industrial inspection wide angle lens is mechanically robust, has low thermal focus shift, and provides quantified distortion and transmission data. Using a non-industrial lens leads to unpredictable accuracy and frequent recalibration.
Q4: How do I verify the claimed distortion of an industrial inspection wide angle lens before purchasing?
A4: Request a distortion grid image from the supplier, captured with a calibrated target (e.g., precision dot array). Alternatively, you can perform a simple test: mount the lens on a camera, image a uniform square grid, and measure corner-to-center pitch variations using image analysis software (e.g., OpenCV’s calibrateCamera function). A reliable supplier will provide distortion maps as part of the lens data sheet. If those documents are unavailable, consider the lens uncertified.
Q5: What maintenance does an industrial inspection wide angle lens require in a dusty production environment?
A5: Use a protective window or optical-grade flat glass in front of the lens to prevent particle accumulation directly on the front element. Clean the protective window weekly with lens tissue and isopropyl alcohol. For the lens itself, avoid disassembly; instead use pressurized air for external surfaces. If condensation or internal dust appears, return to the manufacturer for reassembly in a cleanroom. Periodic re-calibration of distortion compensation (once every six months) is recommended for high-accuracy lines.
