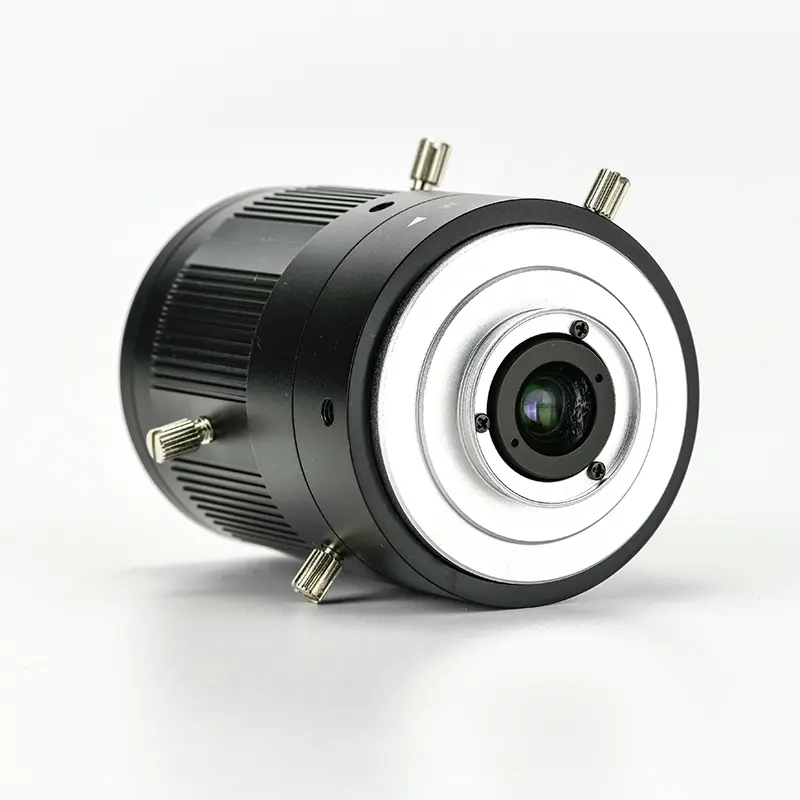

Outdoor imaging systems face demanding environmental challenges. Devices deployed in automotive, marine, and industrial environments must capture high-resolution images while resisting water, dust, and temperature fluctuations. The choice of optical components directly determines the reliability of these systems. Among the various solutions developed for wide-angle monitoring, the H150° Waterproof Lens has emerged as a key component for applications requiring a broad field of view combined with high environmental resistance.
Designing optical systems for outdoor use requires addressing several competing physical factors. Achieving a horizontal field of view of 150 degrees introduces geometric distortion and chromatic aberrations, while waterproofing requirements demand robust mechanical seals that can affect optical alignment. Jinyuan addresses these challenges by integrating advanced glass molding, precise mechanical housings, and durable optical coatings to ensure consistent performance under harsh operating conditions.
Deciphering the Optical Design of a 150-Degree Field of View
A 150-degree horizontal field of view allows a camera to cover wide areas with a single sensor, reducing the number of cameras required in a system. However, capturing such a wide angle introduces significant optical challenges, particularly regarding image distortion and light transmission across the sensor surface.
Standard rectilinear lenses attempt to keep straight lines straight, but as the field of view approaches 150 degrees, this projection method causes extreme stretching at the edges of the image. To resolve this, the H150° Waterproof Lens utilizes an f-theta distortion profile, also known as equidistant projection. This design distributes the pixels evenly relative to the angle of incoming light, ensuring that objects at the periphery remain recognizable and measurable. This characteristic is particularly valuable for algorithmic image processing in driver assistance systems and robotic navigation.
Another major design consideration is relative illumination. In wide-angle lenses, the light intensity reaching the outer edges of the sensor naturally drops off according to the cosine fourth law. Without compensation, this results in severe vignetting, where the corners of the image are significantly darker than the center. To counteract this phenomenon, the optical design incorporates a large negative front element. This glass element bends the steep angle light rays inward, effectively increasing the pupil size at oblique angles and maintaining uniform brightness across the entire image plane.
Optical Aberration and Color Correction
Wide-angle designs are highly susceptible to lateral chromatic aberration, which manifests as color fringing around high-contrast edges at the periphery. To mitigate this effect, the lens assembly designed by Jinyuan utilizes a combination of low-dispersion glass elements and high-refractive-index glass. By pairing these materials, the optical design brings different wavelengths of light to the same focal point on the sensor, preserving image clarity and color accuracy.
Sensor Compatibility and Chief Ray Angle (CRA)
Modern CMOS sensors have specific micro-lens structures that require incoming light to strike the pixels within a limited angle, known as the acceptable Chief Ray Angle. If the light exits the back of the lens at too steep an angle, it will miss the active area of the pixel, causing crosstalk and color shading. The exit pupil of this 150-degree lens is positioned to match the CRA of industrial-grade sensors, ensuring maximum light efficiency and minimal signal noise.
Mechanical Sealing and Waterproofing Standards
Operating a camera in outdoor environments exposes the optical elements to rain, high humidity, and high-pressure washdowns. Preventing water ingress is vital to protect both the internal glass surfaces from fogging and the electronic image sensor from short-circuiting.
The H150° Waterproof Lens is designed to meet IP67 and IP68 ingress protection standards. Achieving these ratings requires a multi-layered approach to sealing the mechanical boundaries between the glass elements and the metal housing. The front dome element, which is directly exposed to the environment, is secured using custom-engineered O-rings made from fluorocarbon elastomers (Viton). This material is selected for its chemical resistance and its ability to maintain elasticity across a wide temperature range.
The manufacturing process uses specialized adhesives to bond the front glass element to the anodized aluminum or stainless steel barrel. These adhesives undergo UV and thermal curing to create a hermetic seal that resists degradation from UV radiation and exposure to chemicals. The entire lens assembly is pressurized and tested for leak rates during the quality control stage to verify the integrity of the seals before shipment.
Hydrophobic Surface Coatings: The outermost glass surface is treated with a permanent hydrophobic coating. This treatment increases the water contact angle to over 110 degrees, causing rain droplets to bead up and roll off easily, preventing water spots from obscuring the view.
Dual-O-Ring Thread Design: The mounting threads that connect the lens to the camera housing feature dual-O-ring channels to prevent moisture from entering through the mounting point.
Corrosion-Resistant Housing: The external metal parts are constructed from marine-grade materials or treated with specialized anodizing processes to withstand salt spray and industrial cleaning agents.
Managing Thermal Defocus and Condensation
Outdoor cameras must operate reliably in temperatures ranging from freezing winter environments to the intense heat of direct sunlight. These temperature shifts cause materials to expand and contract, which can alter the distance between the lens elements and the sensor, resulting in a loss of focus.
Thermal focus drift is a common issue in lenses that rely heavily on plastic (polycarbonate or PMMA) elements, as plastics have thermal expansion coefficients that are significantly higher than those of optical glass. To ensure stability, Jinyuan utilizes an all-glass optical construction housed within a temperature-compensated mechanical barrel. By matching the thermal expansion coefficient of the glass elements with the contraction rates of the metal spacers and housing, the focal position remains stable across a operating range of -40°C to +85°C.
Internal condensation is another major concern. If humid air is trapped inside the lens barrel during assembly, cooling the camera rapidly will cause that moisture to condense on the internal glass surfaces. To prevent this, the assembly is performed in a cleanroom with controlled low-humidity levels, and the internal cavities are sometimes purged with dry nitrogen gas before the final sealing process is completed.
Primary Applications of the H150° Waterproof Lens
The combination of a wide field of view and robust environmental protection makes this optical component highly suitable for several specialized industries where camera failure is not an option.
Automotive Surround-View and ADAS Systems
Modern transport vehicles rely on surround-view camera systems to assist drivers with parking, blind-spot monitoring, and low-speed maneuvering. These cameras are mounted on the exterior of the vehicle, such as the front grille, side mirrors, and rear bumper, exposing them to rain, mud, road salt, and high-pressure washing. The broad horizontal coverage of the lens allows four cameras to construct a complete 360-degree aerial view of the vehicle, while the rugged construction ensures the system operates reliably throughout the life of the vehicle.
Industrial and Marine Surveillance
Coastal installations, commercial vessels, and offshore platforms require constant monitoring under conditions of high salinity and constant moisture. Standard security cameras quickly fail in these environments due to salt corrosion and water intrusion. Utilizing corrosion-resistant metals and hydrophobic coatings, this lens provides continuous, clear wide-angle monitoring of decks, ports, and industrial perimeters without requiring frequent maintenance or cleaning.
Smart Agriculture and Autonomous Equipment
Autonomous tractors and agricultural robots use vision systems to navigate fields, detect obstacles, and monitor crop health. These machines operate in extremely dusty and wet environments, requiring cameras that can be sprayed down at the end of the day. The wide-angle perspective allows the navigation system to monitor both the immediate path and the wider field of view, helping to prevent collisions and improve steering accuracy.
Manufacturing Excellence and Quality Assurance at Jinyuan
Producing high-precision wide-angle optics requires advanced manufacturing facilities and strict quality control measures. Jinyuan employs precise production techniques to ensure that every lens assembly meets exact optical and mechanical specifications.
A major step in the assembly of wide-angle lenses is active alignment. Traditional mechanical assembly relies on machining tolerances to align the lens elements with the sensor. However, at a field of view of 150 degrees, even a sub-micron misalignment can cause severe asymmetry in image sharpness. Active alignment resolves this by using automated robotic systems to position the lens relative to the active sensor while monitoring the live image output. Once the optimal position is found across the entire frame, the lens is permanently secured using UV-curable adhesives.
To verify environmental durability, production samples are subjected to rigorous testing procedures, including:
Thermal Shock Testing: Cycling the lens rapidly between extreme cold and extreme heat to ensure seal integrity and focus stability.
Vibration and Shock Testing: Simulating automotive and industrial operating conditions to confirm that the internal elements remain secure under physical stress.
Salt Spray Testing: Exposing the external housings to a salt-fog environment to verify resistance to corrosion and chemical degradation.
High-Pressure Water Immersion: Testing the assembled units in pressurized water tanks to confirm compliance with IP68 standards.
Selecting the Right Optical Solution for Your System
When integrating a wide-angle lens into a camera system, several factors must be carefully balanced. In addition to the field of view and waterproofing, designers must consider the physical size of the lens, the mounting type (such as M12, CS, or custom mounts), and the spectral band required for the application (such as visible light or near-infrared for night-vision capabilities).
Jinyuan provides comprehensive engineering support to assist system integrators in selecting or customizing the optimal lens design. By analyzing the sensor specifications, mechanical envelope, and environmental requirements of your project, our engineering team can deliver optical solutions that match your exact performance criteria.
Frequently Asked Questions
Q1: What is the main benefit of using an f-theta distortion profile in the H150° Waterproof Lens?
A1: An f-theta, or equidistant, projection distributes the pixels linearly across the sensor relative to the angle of incoming light. This prevents the extreme stretching of objects at the edges of the frame that occurs with standard rectilinear lenses, making the image more useful for computer vision, object detection, and distance estimation.
Q2: How does the hydrophobic coating on the outer element improve camera performance in rainy conditions?
A2: The hydrophobic coating increases the contact angle of water droplets, forcing them to form tight spheres rather than spreading across the surface. When the vehicle or camera moves, wind or gravity easily sheds these droplets, preventing large water films from distorting the image and obscuring critical visual data.
Q3: Can the lens be used with infrared lighting for night-vision applications?
A3: Yes, the lens can be designed with multi-layer coatings that support both visible and near-infrared (IR) spectrums. This allows the camera to capture clear color images during the day and high-contrast monochrome images at night when used with 850nm or 940nm IR illuminators, without a significant shift in focus.
Q4: What material is used for the lens housing, and how does it resist salt-water corrosion?
A4: The lens housing is typically machined from high-grade aluminum alloys treated with a hard-anodized protective layer, or from marine-grade stainless steel. These materials are selected to resist chemical degradation, salt-water exposure, and mechanical wear in coastal or industrial environments.
Q5: What modification options are available for custom integration projects?
A5: Jinyuan offers various customization options, including adjusting the mounting thread type (M12 mount, CS-mount, or custom barrels), changing the anti-reflective coatings for specific wavelengths, modifying the optical filter parameters (such as adding an IR-cut filter), and adapting the mechanical envelope to fit proprietary camera enclosures.
