Compact imaging systems rely heavily on micro-optics to capture broad perspectives without increasing the physical footprint of the hardware. For system integrators and optical engineers, selecting a wide angle board lens is a vital step in balancing physical size with spatial accuracy. These lenses, typically mounted via S-mount thread configurations such as M12, are widely utilized in security, automotive sensing, and industrial automation. Achieving high-resolution performance at the periphery of a wide field of view requires deep knowledge of optical design, sensor matching, and manufacturing precision.
As a manufacturer of custom optical components, Jinyuan specializes in engineering high-performance lenses that address these exact parameters. This analysis examines the engineering specifications, design challenges, and practical considerations necessary to choose and integrate board-level wide-angle optics into modern imaging systems.

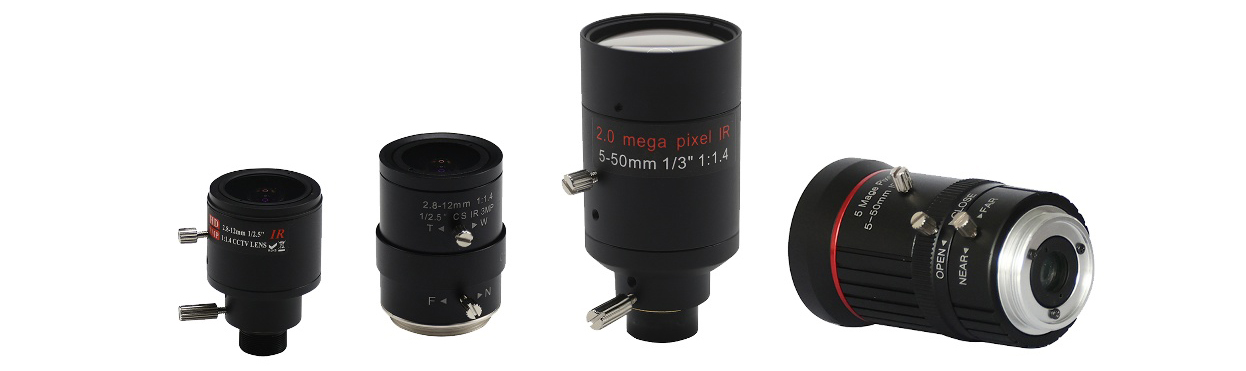

Understanding Optical Parameters in Board-Level Lens Designs
When evaluating a wide angle board lens, several interdependent parameters dictate the final output quality. Modifying one specification often requires adjusting another to maintain optical balance across the image plane.
Focal Length and Field of View (FOV): Shorter focal lengths produce wider angles of view. In board-level optics, a focal length of less than 3mm is common for achieving horizontal fields of view exceeding 100 degrees. However, the precise relationship between focal length and FOV depends on the active area of the paired image sensor.
Sensor Format Compatibility: A lens designed for a 1/3-inch sensor will fail to project a sufficiently large image circle for a 1/2-inch sensor, resulting in severe vignetting and dark corners. Conversely, using a lens designed for a larger sensor on a smaller sensor crops the field of view, reducing the wide-angle effect.
Aperture (F-Number): The light-gathering capability of the lens is defined by its F-number. A lower F-number, such as F1.8 or F2.0, allows more light to reach the sensor, which is beneficial for low-light performance. Achieving a wide aperture in a compact housing requires complex element geometry and precise alignment.
Chief Ray Angle (CRA) Matching: The angle at which light rays strike the sensor pixels is the Chief Ray Angle. Modern CMOS sensors have micro-lenses designed for a specific CRA range. If the CRA of the wide angle board lens exceeds the sensor's tolerance, the system will suffer from color shading, reduced signal-to-noise ratio, and peripheral illumination loss.
To avoid these integration issues, the optical system must be treated as a single cohesive unit, balancing sensor specifications with lens geometry from the initial design phase.
Addressing Geometric Distortion and Resolution Loss
A primary challenge with wide-angle optics is geometric distortion, particularly barrel distortion. This phenomenon occurs because the magnification decreases toward the edges of the image field. While software algorithms can correct this distortion during post-processing, relying entirely on digital correction compromises overall system performance.
Digital correction stretches pixels at the periphery to straighten lines, which degrades the effective resolution in those areas. This reduction in sharpness can obscure fine details in security or inspection applications. To maintain high resolution across the entire frame, optical engineers use aspherical lens elements. Aspherical profiles allow for a flatter image plane and minimize distortion before the light reaches the sensor, preserving the native pixel density of the camera system.
Measuring the resolution of a wide angle board lens involves analyzing its Modulation Transfer Function (MTF) chart. MTF values indicate how well the lens preserves contrast at various spatial frequencies, measured in line pairs per millimeter (lp/mm). High-quality lenses maintain a high MTF not just at the optical center, but also at the far edges of the image, ensuring uniform clarity across the entire field of view.
Engineering Solutions for Common Environmental and Optical Pain Points
Field deployment of compact camera modules introduces several environmental and physical challenges that can degrade optical performance over time. Selecting the appropriate lens construction is key to mitigating these issues.
Thermal Defocus and Temperature Compensation
Outdoor imaging systems, such as automotive cameras and exterior security systems, must operate reliably under extreme temperature fluctuations. Standard plastic lens components expand and contract with temperature shifts, causing the refractive index of the material to change. This variation leads to focal drift, where the image loses sharpness as the temperature changes.
To prevent this, engineers utilize passive athermalization in the optical design. By combining glass elements with specific thermal expansion coefficients and housing materials like brass or aluminum, the physical expansion of the barrel offsets the thermal shift in the glass. This ensures the focal plane remains aligned with the sensor across temperatures ranging from -40°C to +85°C. Jinyuan applies these design methodologies to ensure stable, year-round operation in outdoor environments.
Vignetting and Relative Illumination
Wide-angle designs are naturally susceptible to the cosine-fourth law of illumination, which dictates that peripheral image brightness decreases as the field angle increases. In extreme cases, this results in dark corners and poor contrast at the edges of the image. Addressing this requires increasing the size of the front elements relative to the rear apertures to ensure sufficient light gathering at wider angles, balancing compact design with acceptable relative illumination levels.
Chromatic Aberration and Color Fringing
Because different wavelengths of light refract at slightly different angles when passing through glass, color fringing can occur along high-contrast edges. This chromatic aberration is particularly visible in the corners of wide-angle images. To correct this, optical designers use achromatic doublets, combining crown and flint glass types with varying refractive indices and dispersion characteristics to focus different wavelengths of light onto the same focal point.
Key Application Fields for Wide-Angle Board Optics
The balance of a compact physical footprint and a broad viewing perspective makes these lenses highly valuable across diverse industries.
Automotive Surround-View and Driver Monitoring Systems
Modern vehicles utilize multiple cameras to assist drivers with parking, obstacle detection, and lane-keeping. These systems require wide-angle lenses to provide a comprehensive, 360-degree view around the vehicle. The lenses must withstand mechanical vibration, moisture, and extreme temperatures while delivering sharp, high-contrast images to onboard processing units.
Smart Security and Surveillance
In security monitoring, covering a large area with a single camera reduces hardware and installation costs. Wide-angle board lenses enable dome cameras and video doorbells to monitor entire entryways or rooms without needing motorized pan-tilt mechanisms. Low-light performance is a major factor here, requiring wide apertures that do not introduce excessive spherical aberration.
Industrial Machine Vision and Robotic Navigation
Robotic arms, automated guided vehicles (AGVs), and conveyor sorting systems use vision sensors to navigate and inspect items. When space is limited, a wide angle board lens allows a camera positioned close to the target area to capture a large field of view, facilitating rapid spatial analysis and quality control.
Manufacturing Considerations and Material Selection
The choice of materials and the quality of the manufacturing process directly impact the durability and optical performance of the lens assembly. Selecting the right combination depends on the application's cost targets and performance standards.
| Material Type | Advantages | Common Applications |
|---|---|---|
| Optical Glass | High scratch resistance, excellent thermal stability, superior light transmission. | High-end security, automotive ADAS, precision machine vision. |
| Optical Plastics (PMMA/COP) | Lightweight, cost-effective for high volumes, supports complex aspheric shapes. | Consumer electronics, smart home doorbells, disposable medical cameras. |
| Hybrid (Glass + Plastic) | Balances cost and optical performance, manages thermal drift effectively. | Mid-range commercial cameras, automotive cabin monitoring. |
In addition to material selection, thin-film optical coatings are applied to the lens surfaces. Anti-reflective (AR) coatings minimize surface reflections, improving light transmission and reducing internal reflections that cause ghosting and flare. For outdoor environments, protective hydrophobic and oleophobic coatings can be applied to the outer element to repel water and oils, keeping the optical path clear.
Jinyuan manages the complete manufacturing workflow, from optical design and raw material sourcing to precise assembly and performance verification. Every production run undergoes testing using advanced MTF measurement systems, collimators, and environmental testing chambers to ensure each lens assembly meets the required specifications.

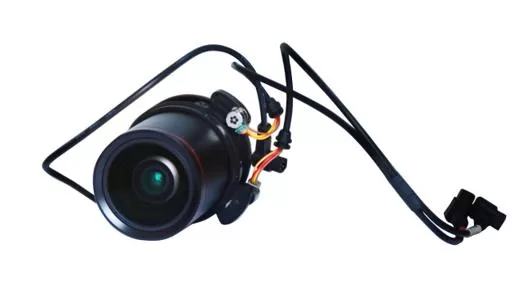

Partnering with Jinyuan for Custom Optical Engineering
Integrating a wide angle board lens into your product line involves balancing many physical and optical trade-offs. Ready-made, off-the-shelf lenses often require compromises in field of view, distortion control, or mechanical mounting dimensions. Jinyuan works directly with your engineering team to develop customized optical systems tailored to your sensor choice, spatial constraints, and environmental requirements.
By coordinating lens design with sensor characteristics and casing constraints, Jinyuan ensures that your final system delivers clear, undistorted images under real-world conditions. Whether you are developing next-generation driver safety systems, advanced robotic eyes, or high-performance security hardware, our optical design and manufacturing capabilities help turn your specifications into reliable hardware.
To discuss your project specifications, request mechanical drawings, or explore custom glass and housing options, contact our optical engineering team today to initiate an Inquiry.
Frequently Asked Questions
Q1: How do you determine the correct sensor compatibility for a wide angle board lens?
A1: Sensor compatibility is determined by comparing the diagonal length of the sensor's active area with the image circle produced by the lens. The lens image circle must be equal to or larger than the sensor diagonal. If the lens is designed for a smaller sensor format, the outer edges of the larger sensor will receive no light, resulting in vignetting.
Q2: Can barrel distortion be fully eliminated in a wide angle board lens through optical design?
A2: Completely eliminating distortion is exceptionally difficult in wide-field systems without adding substantial size and weight. Instead, designers use aspherical glass elements to reduce geometric distortion to acceptable levels, often below 2% or 3% distortion, which minimizes the need for aggressive, resolution-degrading software correction.
Q3: What are the main benefits of using a glass lens over a plastic lens in industrial environments?
A3: Glass optics offer higher thermal stability, keeping focus sharp through large temperature changes. Glass is also highly resistant to chemical exposure and surface scratches, and offers better light transmission and less polarization effect compared to optical plastics like PMMA or polycarbonate.
Q4: Why does the Chief Ray Angle (CRA) matter when choosing a wide-angle optic?
A4: If the exit angle of the light leaving the rear of the lens (CRA) is significantly larger than the micro-lens angle of the sensor pixels, the light cannot penetrate deep into the pixel wells. This mismatch leads to color shading, higher image noise at the corners, and uneven brightness across the frame.
Q5: What mechanical mounting options are available for Jinyuan board lenses?
A5: Jinyuan designs and manufactures lenses with various standard mount threads, including M12 (S-mount), M8, and M14 configurations. We also provide custom metal barrel and holder modifications to fit unique mechanical layouts and space-constrained enclosures.
