According to imaging standards like EMVA 1288, sensor efficiency depends heavily on spatial frequency matching. Buying a standard optical component without verifying its resolving power often leads to severe contrast loss, especially along the periphery of the field of view.

For custom imaging systems, selecting a high-performance 5mp CCD and CMOS lens is not just about matching a thread mount. It requires an understanding of pixel pitch, modulation transfer function (MTF), and the mechanical tolerances required for industrial environments.

This B2B technical guide explains how to properly match optical systems with sensors. We will look at design mismatches and show how manufacturers like Jinyuan develop custom lenses to meet these strict requirements.

The Megapixel Myth: Resolving the Pixel Pitch Discrepancy

A common mistake in optical procurement is assuming any lens rated for "5 Megapixels" performs identically on every 5MP sensor. In reality, a legacy 5MP CCD sensor and a modern 5MP CMOS sensor often have completely different physical dimensions and pixel architectures.

For example, an older 2/3-inch CCD sensor might have a pixel pitch of 3.45 microns. In contrast, a modern, compact 1/2.5-inch CMOS sensor packed with 5 million pixels might have a pixel pitch of only 2.2 microns, demanding much higher optical resolution.

Using a legacy 5mp CCD and CMOS lens designed for larger pixels on a small-pixel CMOS sensor can result in severe optical blurring. The lens simply cannot resolve details at the higher spatial frequencies required by the smaller pixels.

When selecting a 5mp CCD and CMOS lens, engineers must calculate the Nyquist limit of their sensor. This ensures the lens's optical resolving power, measured in line pairs per millimeter (lp/mm), matches or exceeds the sensor's physical resolving capabilities.

The Pixel-to-Glass Impedance Match (PGIM) Framework

To avoid optical performance bottlenecks, we developed the Pixel-to-Glass Impedance Match (PGIM) Framework. This systematic approach aligns the sensor's physical characteristics with the lens's optical parameters to ensure clear, high-contrast imaging.

Applying this framework ensures your 5mp CCD and CMOS lens operates efficiently across the entire field of view. Optical manufacturers like Jinyuan use this spatial matching process to design lenses that preserve contrast even at the corners of high-density sensors.

Ignoring this framework can lead to significant light loss at the image borders, which forces software developers to write complex exposure compensation algorithms that slow down processing speeds.

Managing Optical Distortion and Chromatic Aberration

In B2B applications like dimensional metrology and PCB inspection, geometric distortion can compromise measurement accuracy. A standard consumer-grade lens may exhibit more than 2% radial distortion, which introduces errors when measuring small parts.

Low-distortion industrial lenses solve this problem by using sophisticated double-Gauss or telecentric optical configurations. These specialized designs keep geometric distortion below 0.1%, ensuring that 1 millimeter at the edge of the screen measures exactly the same as 1 millimeter in the center.

Chromatic aberration is another critical issue, particularly when working with multispectral or white light illumination. If different wavelengths of light focus at different points on the sensor, color fringing can occur, which blurs the edges of high-contrast features.

By using extra-low dispersion (ED) glass elements, a premium 5mp CCD and CMOS lens can bring red, green, and blue light waves to the exact same focal plane. This chromatic correction is essential for precise color sorting and high-resolution imaging applications.

Sensor Architectures: Optical Demands of CCD vs. CMOS

Although modern CMOS sensors have largely replaced CCDs in high-speed applications, both architectures are still widely used in specialized B2B industries. Each sensor type places distinct physical demands on the optical lens design.

CCD sensors generally feature deep photodiode wells with high fill factors, making them highly sensitive to light but prone to blooming under intense illumination. A 5mp CCD and CMOS lens used with a CCD sensor must provide precise aperture control to manage light exposure and prevent charge overflow.

On the other hand, CMOS sensors often have integrated micro-lenses over each pixel to maximize light collection. These micro-lenses require light rays to strike the sensor at a nearly perpendicular angle. This means the 5mp CCD and CMOS lens must have a low Chief Ray Angle (CRA) to avoid shading and color shifts in the corners of the image.

Whether you are integrating legacy CCD systems or deploying modern high-speed CMOS lines, selecting a lens with the correct optical characteristics is essential to achieving consistent image quality.

Integration Checklist for B2B Optical Procurement

When sourcing a 5mp CCD and CMOS lens for automated vision systems, use this technical checklist to verify compatibility and ensure long-term reliability:

• Confirm Resolving Power: Ensure the lens is rated for at least 140 lp/mm to match sensors with a 3.45 μm pixel pitch.

• Verify Image Circle: Ensure the lens image circle (e.g., 11mm for 2/3" sensors) is equal to or larger than the sensor's diagonal.

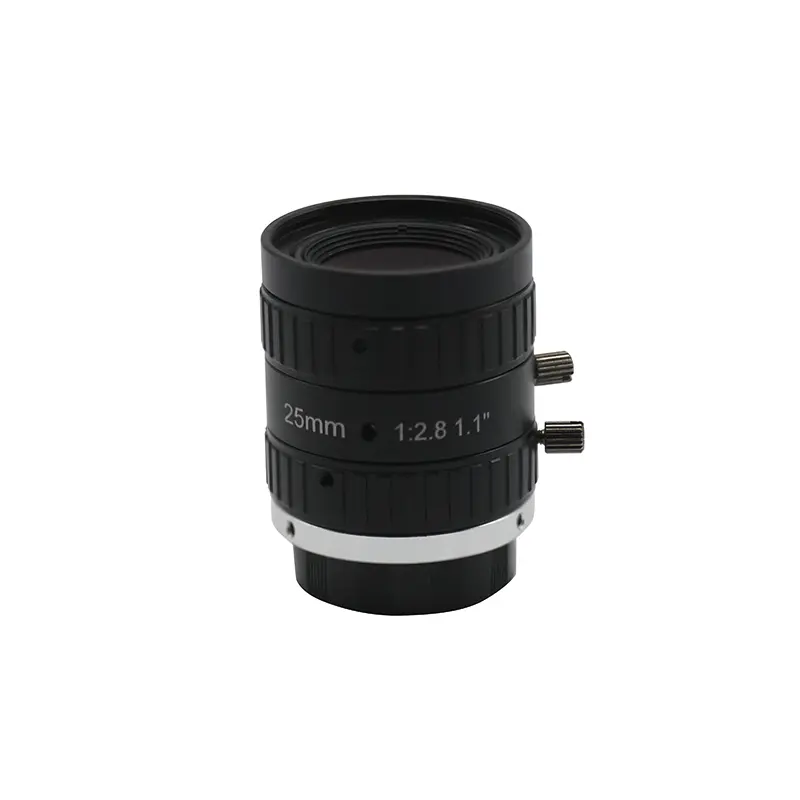

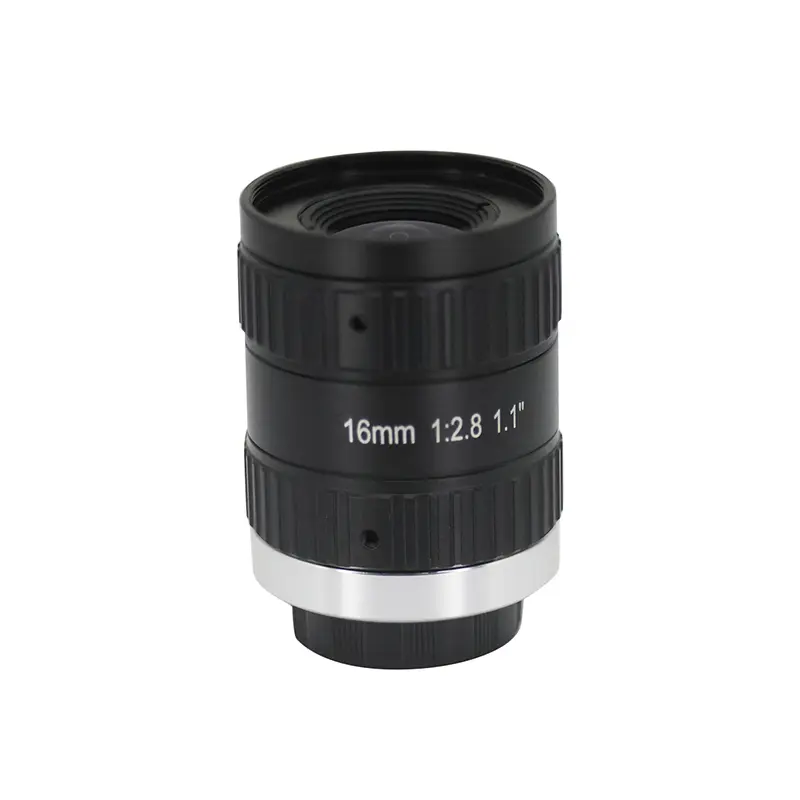

• Check Mechanical Mounting: Verify mount compatibility (C-mount, CS-mount, or custom S-mount) and ensure it features locking screws for focus and iris rings.

• Analyze CRA Compatibility: Match the lens Chief Ray Angle to the sensor's microlens angle to prevent corner vignetting.

• Review Environmental Ruggedness: Confirm the lens housing can withstand operating temperatures from -20°C to +60°C in industrial environments.

Frequently Asked Questions (FAQ)

1. Can I use a lens designed for a 10MP sensor on a 5MP sensor?

Yes, you can. A lens designed for a higher megapixel rating generally has a higher resolving power (lp/mm), which will easily resolve the larger pixels of a 5MP sensor. However, you must still verify that the lens's image circle covers the sensor's physical size to avoid vignetting.

2. Why does my 5mp CCD and CMOS lens lose focus when the system warms up?

This is usually caused by thermal expansion in the lens barrel or internal glass elements. For applications with high operating temperatures, it is best to use a thermally stabilized lens or a housing designed by manufacturers like Jinyuan to maintain consistent focus across a wide temperature range.

3. What is the difference between a telecentric lens and a standard 5mp CCD and CMOS lens?

A standard lens has a perspective angle, meaning objects appear smaller as they move further away. A telecentric lens maintains constant magnification regardless of object distance. This eliminates perspective errors, making it highly suitable for precise dimensional measurements.

Partnering for Custom Optical Solutions

Selecting the right optics requires looking beyond simple megapixel ratings. By carefully analyzing pixel pitch, optical distortion, and mechanical stability, integration teams can build reliable, high-performance vision systems that minimize downtime.

For custom optical projects, working with an experienced manufacturer can simplify the design and integration process. Jinyuan offers tailored optical solutions, helping B2B clients select and customize the ideal 5mp CCD and CMOS lens for their specific industrial applications.
