Precision optical systems deployed in industrial machine vision, intelligent transportation systems, border security, and aerospace tracking frequently require high optical resolution concentrated across a restricted field of view. Selecting or designing a narrow view angle lens involves balancing multiple interdependent parameters, including effective focal length, sensor architecture, chromatic aberration correction, and mechanical housing stability under varying thermal regimes. For enterprise procurement teams and optical systems engineers, identifying the exact optical performance criteria ensures target details are resolved cleanly at significant working distances without introducing unacceptable geometric distortion or spatial frequency degradation.
The Physics and Optical Architecture of Narrow Angular Fields

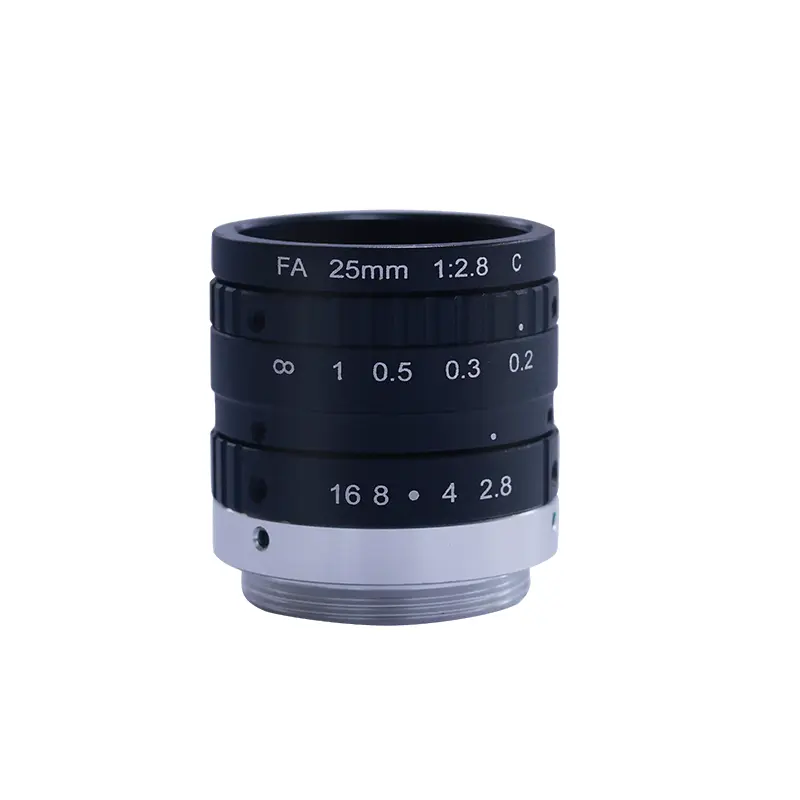

A narrow view angle lens typically designates an optical assembly exhibiting an angular field of view (AFOV) below 20 degrees, frequently extending below 5 degrees in specialized long-range or telephoto applications. The relationship governing the horizontal, vertical, and diagonal angular fields relies directly on the effective focal length (EFL) and the active physical dimensions of the image sensor format:
AFOV = 2 × arctan(d / (2 × EFL))
Where d represents the relevant sensor dimension (horizontal, vertical, or diagonal). As the focal length increases relative to the image circle, the field angle contracts, amplifying optical path lengths and placing stringent demands on surface figure tolerances, optical glass homogeneity, and internal baffling.
In standard optical designs, longer focal lengths inherently introduce a physical length penalty. Optical engineers utilize telephoto configurations—placing a positive refractive group in front of a negative group—to compress the physical barrel length relative to the effective focal length. This telephoto ratio (physical track length divided by focal length) minimizes the mechanical payload in gimbal mounts, fixed pan-tilt-zoom assemblies, and embedded machine vision stations without compromising target magnification.
Critical Performance Metrics and Evaluation Criteria
Evaluating long-range and narrow-angle optics requires examining how the design behaves across spatial frequencies, spectrum bands, and mechanical shifts. Relying solely on focal length and maximum aperture (F-number) leaves critical imaging vulnerabilities unaddressed.
Modulation Transfer Function (MTF) Across Spatial Frequencies
The Modulation Transfer Function provides the most objective metric for contrast reproduction at specified spatial frequencies (expressed in line pairs per millimeter, lp/mm). Narrow-angle optical assemblies must preserve high contrast not merely on-axis (at the image center), but also across the tangential and sagittal planes toward the periphery of the image circle. Custom optics targeting high-resolution CMOS sensors with pixel pitches below 2.5 microns require an MTF baseline often exceeding 30% to 40% at the sensor Nyquist frequency. Jinyuan develops custom optical designs that optimize the balance between on-axis resolution and field uniformity, utilizing ray-tracing simulations to curb peripheral contrast drop-off.
Chief Ray Angle (CRA) Compatibility
Modern backside-illuminated (BSI) and frontside-illuminated (FSI) micro-lens arrays installed on CMOS sensors display strict chief ray angle limits. When incoming marginal and chief rays strike micro-lenses at extreme angles, light fails to channel effectively into the underlying photodiode, resulting in optical crosstalk, pixel vignetting, and chromatic shading. In narrow-angle systems, chief rays tend toward parallel orientations (low CRA), which generally complements standard sensors. However, custom sensor integration still requires matching the exit pupil position to avoid sensor-level phase cancellation or color shift across spectral bands.
Relative Illumination and Stray Light Control
Optical systems operating at long working distances often battle ambient ambient glare and off-axis high-intensity sources (such as sunlight or industrial illumination). Relative illumination should ideally remain above 80% across the entirety of the sensor diagonal to eliminate post-processing software gain adjustments that inevitably amplify readout noise. Mitigating internal reflections demands optical baffling, micro-grooved anti-reflective internal threads, and edge-blackening on high-index lens elements.
Surface figure accuracy down to fractional wavelengths (λ/4 to λ/10 Peak-to-Valley).
Scratch-dig parameters governed by MIL-PRF-13830B standards (typically 40-20 or 20-10 for laser and high-reliability imaging).
Anti-reflective (AR) broadband multi-layer thin-film coatings achieving reflectance below 0.5% per surface across targeted wavebands (e.g., 400–700 nm, 700–900 nm, or extended SWIR).
Optical Material Selection and Chromatic Management
Extending effective focal lengths inherently exacerbates chromatic aberrations. Axial (longitudinal) chromatic aberration manifests when different wavelengths of light focus at discrete planes along the optical axis, while lateral (transverse) chromatic aberration produces color fringing on high-contrast edges across outer field angles.
Correcting these dispersion artifacts necessitates careful pairing of optical crown and flint glasses. Conventional designs leverage Extra-Low Dispersion (ED) or fluorite-type glasses exhibiting high Abbe numbers (V-number > 80) paired with dense lanthanum flint glasses. This configuration collapses the secondary spectrum, bringing three distinct wavelengths into a common focal plane (apochromatic correction). In environments where weight is an engineering concern, hybrid assemblies utilizing optical plastics may be considered, although their thermal vulnerability must be addressed.
Environmental stability demands optomechanical athermalization. Thermal shifts induce changes in both refractive index (dn/dT) and mechanical housing dimensions (linear thermal expansion coefficient, CTE). An uncompensated narrow angle lens assembly subjected to operational shifts ranging from -40°C to +85°C will experience focal drift, completely defocusing high-pixel-density sensors. Athermalization can be realized through:
Active mechanical compensation: Stepper motors or piezoelectric actuators driving specific element groups based on integrated thermistor telemetry.
Passive optomechanical compensation: Combining materials with divergent CTE values (such as alternating Delrin, aluminum, and invar internal spacers) to physically displace lens elements precisely counter to the refractive index shift.
Passive optical athermalization: Selecting specific glass combinations where the thermal refractive coefficients inversely counter the expansion of the outer housing.
Primary Industrial and Scientific Application Scenarios
The operational utility of a narrow view angle lens extends across diverse enterprise and industrial sectors, each imposing unique physical and optical requirements.
Intelligent Transportation Systems (ITS) and License Plate Recognition (ALPR)
High-speed vehicular monitoring along highways requires clear capture of high-contrast alphanumerics across multi-lane spans from gantries or roadside poles. A narrow angular field narrows the field to specific lanes, reducing perspective distortion and maximizing pixels on target. Optical assemblies must incorporate high transmission across near-infrared (NIR) spectra (typically 850 nm or 940 nm) to allow pulsed infrared illumination to freeze motion without blinding drivers.
Automated Optical Inspection (AOI) and Machine Vision
Precision manufacturing environments often demand long stand-off distances where optical sensors cannot sit close to process lines due to extreme heat, robotic interference, or chemical hazards. Optical assemblies engineered with long focal lengths isolate micro-defects, semiconductor wire bonding, or weld integrity from safe working distances. In these settings, telecentric optical architectures are frequently merged with narrow fields to preserve magnification consistency even if target component depth fluctuates within the fixture.
Long-Range Perimeter Defense and Border Security
Border surveillance relies on electro-optical/infrared (EO/IR) platforms capable of detecting, recognizing, and identifying human or vehicular activities across several kilometers. Operating across varying atmospheric turbulence conditions requires lenses with expansive front apertures to gather sufficient photons while preserving high spatial frequency resolution. These systems depend on robust mechanical barrels that isolate internal glass groupings from mechanical shock, vibration, and atmospheric moisture penetration.
Custom Optomechanical Design and Tolerancing Strategy
Procuring a custom optical assembly moves far beyond purchasing off-the-shelf catalog parts. A successful project integrates optical design, mechanical engineering, and volume manufacturing parameters from initial system architecture.
Tolerancing optical designs dictates the viability and yields of final production runs. Tight optical tolerances reduce wave-front errors but exponentially scale fabrication costs. Engineers evaluate several core manufacturing variables:
Element Wedge and Decenter: Off-axis tilt or radial translation of lens elements induces severe asymmetric aberrations such as coma and astigmatism. Custom cell designs utilize sub-micron sub-cell machining to mechanically enforce element centering.
Transmitted Wavefront Error (TWE): System-level interferometric measurements evaluate the phase deviation across the exit pupil, ensuring the wave disturbance remains within defined Rayleigh limits.
Air Space and Center Thickness: Precision shimming or precision ring spacers maintain spacing within single-digit micrometer bands.
During the manufacturing phases, Jinyuan implements advanced optical alignment techniques, such as computer-aided multi-axis centering and dynamic MTF optimization during final bonding. By measuring the modulation function in real time while adjusting relative element rotations, manufacturing teams counteract residual glass manufacturing errors, reaching theoretical design performance ceilings reliably.
Installation, Alignment, and Lifecycle Maintenance
Integrating a long focal length optical assembly into an industrial or electro-optical enclosure introduces physical challenges distinct from wide-angle optics. Small mechanical angular shifts result in sweeping target displacement at working distances of tens or hundreds of meters.
Mechanical Rigidity and Mount Selection
Standard C-mount or CS-mount threaded interfaces are often mechanically insufficient for long, heavy optical barrels due to cantilever loading on the camera faceplate. Custom installations employ auxiliary barrel clamps, heavy-duty industrial bayonet mounts (such as F-mount, M42, M72, or custom flanges), or full-body support cradles. The mount must absorb vibrational loads without translating strain through the optical barrel, which would otherwise deform glass element retaining rings and induce mechanical birefringence.
Flange Focal Distance and Back-Focus Calibration
Because the depth of focus at the image plane shrinks at low F-numbers, precisely tuning the flange back distance (FBD) is mandatory. Systems should incorporate fine-pitch lockable back-focus adjustment collars or motorized internal focusing groups. System integrators should execute back-focus calibration using collimated light sources or optical targets placed at simulated infinity rather than relying solely on estimated hyperfocal calculations.
Environmental Sealing and Maintenance Protocols
Long-range optics frequently operate in outdoor or corrosive industrial factory settings. Maintenance protocols should focus on preserving mechanical seal integrity and coating health:
Deploying front optical windows with diamond-like carbon (DLC) coatings or hydrophobic/oleophobic top layers to protect high-grade internal glasses from abrasion, moisture, and chemical exposure.
Utilizing nitrogen or argon gas purging through dual-valve seals to prevent internal condensation during rapid thermal cycling.
Periodic non-contact optical cleaning: Pressurized, dry, filtered nitrogen followed by high-purity optical-grade solvents (e.g., reagent-grade isopropyl alcohol or acetone) using spectroscopic drop-and-drag lens paper techniques to prevent scratch-dig deterioration.
Frequently Asked Questions
Q1: What defines a narrow view angle lens in comparison to standard or
telephoto lenses?
A1: A narrow view angle lens is defined primarily by
its angular field of view, typically capturing less than 20 degrees diagonally
across the designated sensor format. While telephoto refers strictly to an
optical design architecture utilizing a positive-negative lens group
configuration to shorten the physical housing, narrow-angle optics denote the
restricted angular acceptance cone, focusing spatial resolving power across a
distant or localized target zone.
Q2: How does pixel pitch dictate the optical performance specifications of
custom long-range lenses?
A2: Smaller sensor pixel pitches (e.g., 1.45 μm
to 2.9 μm) demand significantly higher spatial cutoff frequencies from the
optical assembly. A lens designed for large-pixel architectures will yield soft,
blurry images on a modern high-density sensor if its MTF profile at high
line-pair frequencies is poor. The optical design must resolve detail matching
the sensor Nyquist limit (1 / (2 × pixel pitch)) without excessive diffraction
blurring.
Q3: Why is atmospheric turbulence more disruptive when using narrow-angle
optics?
A3: Because these optical assemblies focus on distant targets
across long line-of-sight paths through the atmosphere, they sample larger
volumes of air subject to thermal variations, refractive index fluctuations
(index structure constant, Cn²), and particulate scatter. This optical
phenomenon, termed atmospheric scintillation or optical turbulence, causes image
dancing and spatial blurring, requiring fast shutter speeds, active
computational restoration, or specialized SWIR spectrum utilization.
Q4: What are the engineering tradeoffs between fixed focal length designs
and motorized optical zoom for narrow fields?
A4: Fixed focal length
systems achieve superior optical clarity, higher relative aperture (lower
F-number), smaller physical envelopes, and enhanced ruggedization due to fewer
moving optomechanical components. Motorized zoom systems provide tactical
flexibility across variable operational distances, but they incorporate
mechanical cams and motors that increase system volume, introduce potential
mechanical backlash, and reduce overall MTF performance across focal
extremes.
Q5: How does Jinyuan approach custom optomechanical prototyping for
specialized vision projects?
A5: Custom projects begin with deep
requirements mapping—evaluating sensor formats, spectral bands, MTF benchmarks,
environmental factors, and envelope constraints. Following optical modeling in
optical engineering software and tolerance budget approval, Jinyuan executes
rapid mechanical modeling, CNC fabrication of structural cells, optical element
fabrication, thin-film coating runs, and full interferometric and MTF
characterization to validate real-world performance against theoretical
models.
Initiate Your Custom Optical Engineering Program
Selecting the precise optical train requires direct alignment between optical parameters and operational realities. Whether designing intelligent infrastructure systems, dedicated machine vision stations, or defense imaging suites, early integration of custom lens design reduces integration timelines and eliminates systemic optical bottlenecks. Consult directly with the engineering design team at Jinyuan to assess optical tolerance budgets, review custom coating requirements, or initiate a rapid prototype run for your proprietary vision platform.
