As security surveillance systems evolve toward higher resolution, greater intelligence, and fully autonomous round-the-clock operation, consistent optical performance across day and night conditions has become a critical benchmark for lens quality assessment. Day-and-Night Co-Focusing Technology—advanced optical design employed in premium surveillance lenses—addresses the longstanding industry challenge of infrared-induced focus shift and resultant nighttime image degradation observed in conventional lenses. Today, it serves as an essential enabling technology for AI-driven intelligent surveillance, black-light full-color imaging, and high-end outdoor security deployments, providing reliable, spectrally stable optical performance to support continuous, precise system operation and maintenance.
I. Technical Definition: What Constitutes a True Day-and-Night Co-Focusing Lens?
From an optical physics perspective, visible light (400–650 nm) and near-infrared illumination (e.g., 850 nm), commonly used for night-vision enhancement, exhibit inherently different refractive indices in optical materials. Standard lenses are typically optimized solely for the visible spectrum. When a camera switches between day and night modes via an IR-cut filter and activates infrared supplemental lighting, chromatic dispersion causes focal plane displacement—leading to sharp daytime imagery but significantly degraded nighttime focus. This phenomenon, widely recognized as infrared focus shift, compromises operational reliability and image usability.

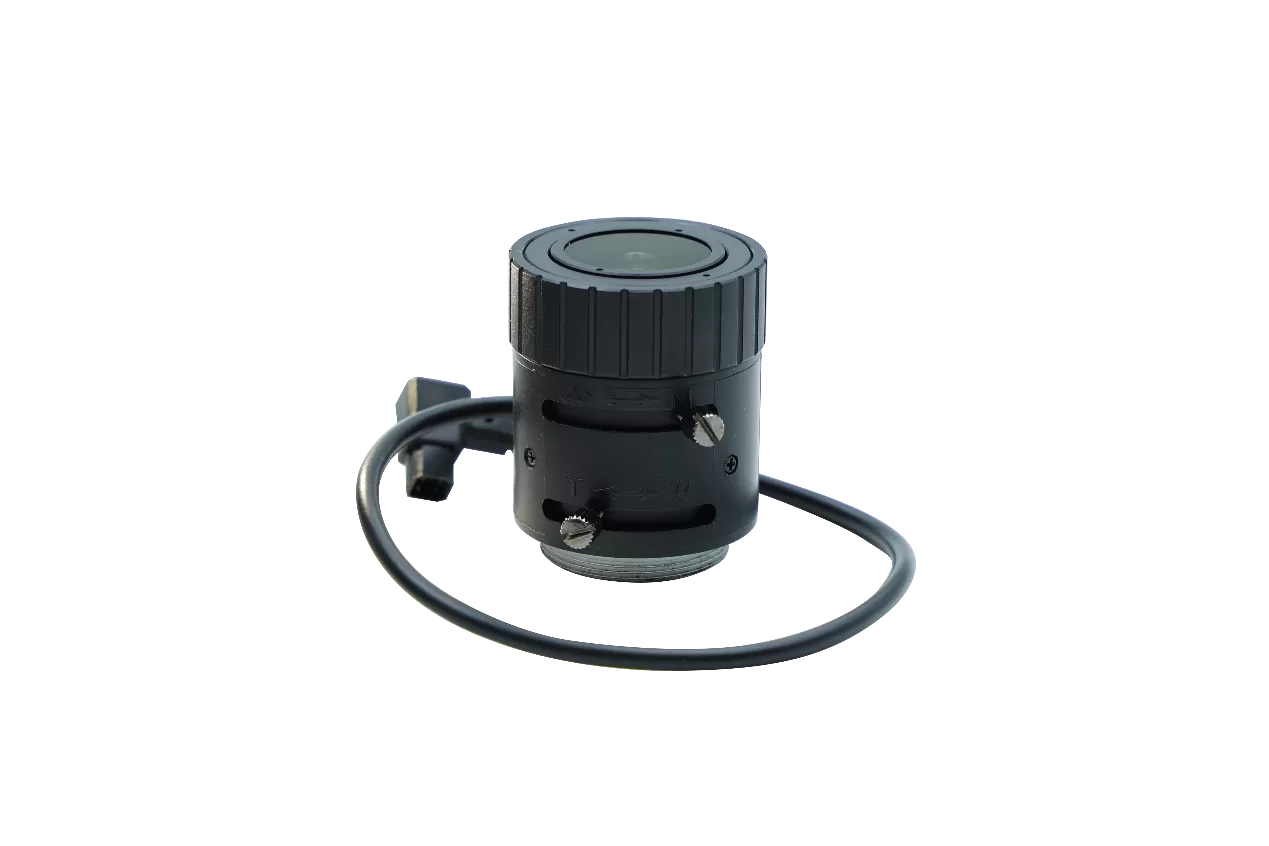

A genuine Day-and-Night Co-Focusing Lens (also termed IR-Corrected Day-and-Night Co-Focusing Lens) is a purpose-engineered surveillance optic incorporating comprehensive chromatic aberration correction across the full visible and near-infrared spectrum. Through strategic combinations of low-dispersion glass elements, precision multi-layer anti-reflective coatings, and rigorous optical design optimization, it achieves tightly aligned focal planes for both visible (400–650 nm) and infrared (850 nm) wavelengths—ensuring spatially consistent focus without mechanical adjustment.
Industry-standard verification of authentic co-focusing capability comprises two complementary criteria:
1. Specification-based validation: Product datasheets must explicitly declare “IR-Corrected” and “Day-and-Night Co-Focusing” compliance, accompanied by optical design documentation confirming full-spectrum chromatic correction—not merely broadband infrared transmission without focal alignment.
2. Functional performance validation: Following initial daylight focus calibration, activation of the IR-cut filter (transitioning to night mode) must yield no perceptible loss of image sharpness at center or edge fields. Measured axial focal shift must remain within ±0.02 mm—the accepted industry tolerance—thereby guaranteeing uninterrupted, high-fidelity imaging across diurnal cycles.
II. Strategic Value Proposition in Modern Surveillance Applications
1. Elimination of diurnal focus recalibration—enabling truly stable 24/7 HD imaging
Conventional non-co-focusing lenses necessitate separate focus adjustments for day and night operation, substantially increasing installation complexity and long-term operational expenditure. This limitation is especially acute in elevated outdoor installations (e.g., traffic intersections, perimeter towers), expansive campus environments, and linear infrastructure monitoring—where physical nighttime access for refocusing is impractical or unsafe. Day-and-Night Co-Focusing lenses enable single-point focus setup valid for both spectral regimes, eliminating focus drift upon IR-mode activation. The result is consistently accurate color reproduction during daylight and high-detail, noise-resilient imagery under low-light conditions—meeting stringent requirements for mission-critical, continuous-security applications.
2. Foundational enabler for AI-powered analytics—ensuring robust recognition accuracy
Contemporary AI functionalities—including human detection, facial feature extraction, license plate recognition, and behavioral anomaly detection—demand pixel-level image fidelity and faithful preservation of fine structural details (e.g., texture, edge contrast, spatial frequency response). Nighttime focus shift in standard lenses directly degrades modulation transfer function (MTF) performance, precipitating sharp declines in algorithmic confidence scores, elevated false-positive rates, and missed event detection—undermining system trustworthiness and ROI. By maintaining optimal MTF and geometric fidelity across both illumination regimes, Day-and-Night Co-Focusing technology delivers temporally stable, high-information-content video streams to AI inference engines, forming the indispensable optical substrate for scalable intelligent surveillance deployment.
3. Optimal synergy with advanced low-light imaging hardware—maximizing full-color monitoring potential
Black-light and starlight-grade full-color cameras rely on active infrared illumination in ultra-low-light scenarios and require lenses capable of high-fidelity, low-distortion imaging across the entire visible-to-near-IR band. The spectrally uniform resolution, minimal lateral chromatic aberration, and high transmission efficiency of Day-and-Night Co-Focusing lenses align precisely with the optical demands of large-aperture, high-megapixel sensors. This compatibility unlocks the full performance envelope of next-generation imaging hardware—resolving persistent issues such as nocturnal haze, contrast collapse, and detail erosion—thereby elevating image quality and situational awareness under near-total darkness.
4. Native support for ultra-high-resolution, large-format sensors—enhancing future-proof adaptability
The widespread adoption of 5 MP, 8 MP, and 12 MP sensors—with correspondingly larger optical formats (e.g., 1/1.8″, 1″, and beyond)—places unprecedented demands on lens resolving power, field curvature control, and peripheral illumination uniformity. Day-and-Night Co-Focusing lenses are engineered from inception to meet these requirements, featuring enhanced modulation transfer across the full image circle, minimized distortion, and optimized telecentricity. This ensures seamless integration with cutting-edge sensor platforms while preserving optical integrity at scale—strengthening product longevity, interoperability, and total cost-of-ownership advantages.
