Commercial off-the-shelf (COTS) lenses hit a wall when production lines demand sub-micron accuracy. In semiconductor packaging, high-speed battery inspection, and precision metrology, standard optics often fail to deliver the required edge sharpness or mechanical stability.
A standard catalog lens forces engineers to compromise. You end up adjusting the working distance, recalculating optical distortion in software, or fighting chromatic aberration under non-standard illumination. Custom optical design removes these compromises entirely.
At Jinyuan, we work with machine vision teams who have outgrown standard industrial optics. When off-the-shelf components bottleneck your vision platform, developing a custom High-Definition FA Lens guarantees that your sensor, illumination, and mechanics operate at peak efficiency.
Here are the seven critical factors engineers must evaluate when designing a custom lens for precision automation.
1. Resolution and Pixel Pitch Matching
Many vision systems pair a 20-megapixel sensor with a catalog lens, only to discover blurry edges and poor contrast. The issue lies in the mismatch between the sensor's pixel pitch and the optical resolving power of the lens.
Modern sensors routinely feature small pixels, often 2.74 µm, 2.4 µm, or smaller, on formats spanning 1.1 inches to larger area-scan layouts. Resolving features on these small pixels requires high optical performance across the entire spectrum of spatial frequencies.
Understanding MTF Beyond the Center
Modulation Transfer Function (MTF) quantifies contrast transfer at specific line pairs per millimeter (lp/mm). Catalog lenses frequently boast high MTF values at the center of the image circle, but optical performance drops sharply toward the periphery.

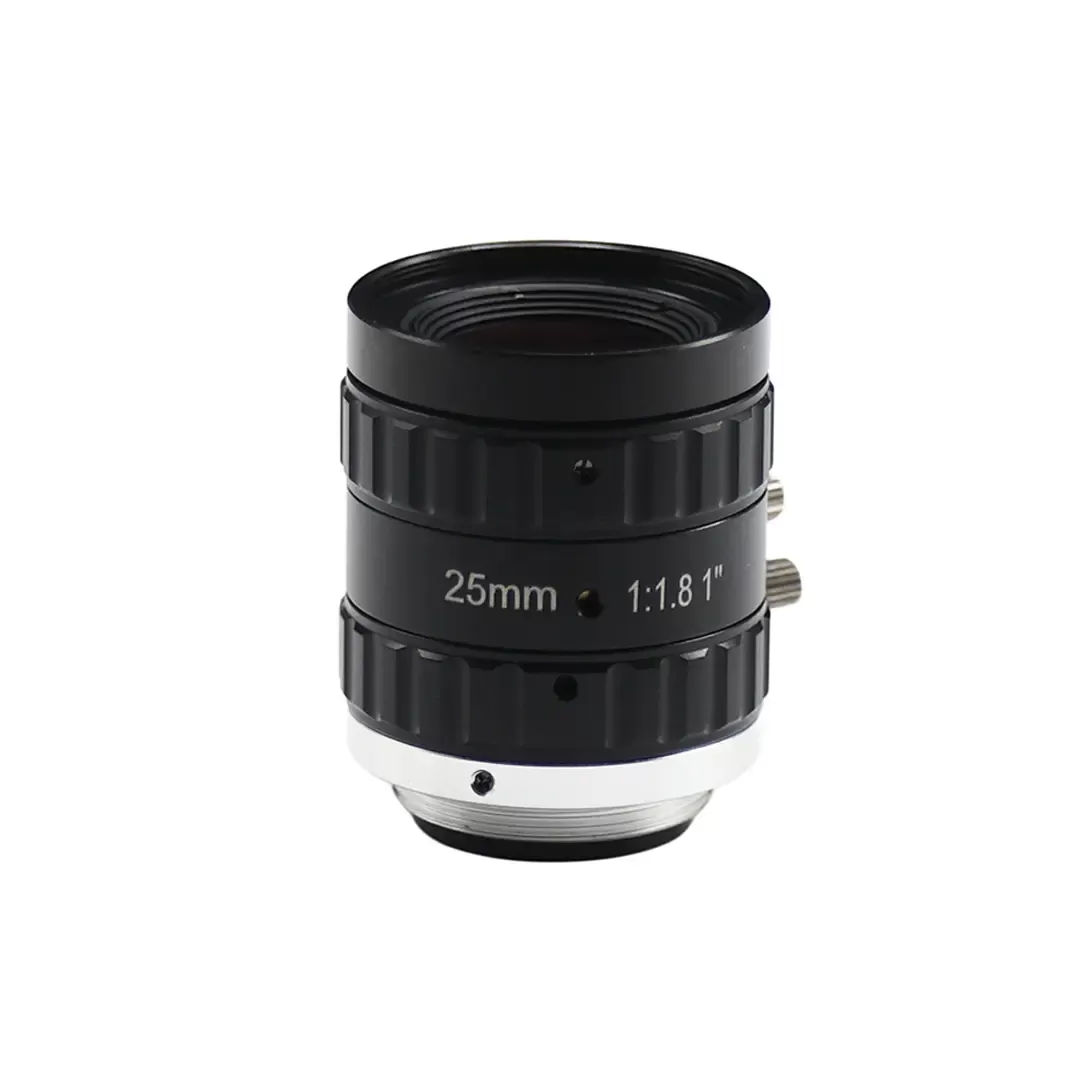

Center vs. Edge Performance: A custom High-Definition FA Lens maintains high MTF values (often exceeding 40% at 100 lp/mm) right to the edge of the image circle.
Nyquist Matching: The optics must match the Nyquist frequency of the sensor. If the lens cannot resolve the frequency dictated by the pixel pitch, you waste your sensor investment.
Relative Illumination: Peripheral roll-off causes dark corners. Custom optics correct shading to maintain consistent exposure across all pixels.
Designing the lens layout to match your specific image sensor eliminates spatial aliasing and preserves micro-defect contrast across the entire field of view.
2. Distortion Control and Metrology Precision
In metrology and automated optical inspection (AOI), geometric fidelity is non-negotiable. If your optical assembly curves straight edges, your measurement algorithms burn valuable processing cycles rectifying pixels.
Standard factory automation lenses often accept optical distortion levels between 0.5% and 2%. While adequate for simple presence-absence detection, this error ruins precision gauging applications.
Optical Distortion vs. TV Distortion
Vision engineers must separate basic TV distortion from true optical radial distortion. TV distortion assumes simple barrel or pincushion shapes, whereas complex multi-element lenses can introduce wave or "mustache" distortion.
Algorithm Strain: Software compensation can warp pixel data, interpolating intensity values and reducing localized sub-pixel accuracy.
Low-Distortion Geometries: A custom-designed low distortion optical lens can push geometric distortion below 0.05%, or even 0.01% across the operational conjugate.
Calibration Simplification: Near-zero distortion optics reduce multi-point grid calibrations, speeding up line deployment and edge-detection routines.
3. Working Distance vs. Mechanical Envelope Constraints
Production equipment rarely offers infinite integration room. Vision stations frequently compete for space with robotic grippers, material handlers, dispensing heads, and safety guards.
Off-the-shelf lenses bind you to fixed focal lengths and preset working distances. When physical obstacles block your desired optical path, standard setups stall your project.
Folding Optical Paths and Custom Barrel Profiles
Custom industrial lens engineering resolves mechanical interference through targeted mechanical integration:
Integrated Prisms and Mirrors: We can incorporate internal 90-degree turning prisms to fold the optical path inside tight machinery frames.
Recessed Mounts: Custom C-mount, M42, or specialized industrial lens mechanics fit inside narrow spaces without hitting adjacent axes.
Optimized Depth of Field (DOF): Custom iris and aperture configurations balance light throughput against the required depth of field, keeping stepped surfaces sharp without external aperture hacks.
By engineering the mechanics and optics together, Jinyuan builds compact optomechanical packages that slide neatly into tight machine cells.
4. Spectral Range and Multi-Layer AR Coatings
Standard lenses are color-corrected strictly for the visible band (400 nm to 700 nm). Yet precision manufacturing tasks increasingly rely on narrow-band LEDs, near-infrared (NIR), or short-wave infrared (SWIR) inspection.
Running an NIR light source (such as 850 nm or 940 nm) through a visible-light lens introduces major focal shift and severe chromatic aberration. Images lose sharpness, and contrast degrades rapidly.
Achromatic Correction and Anti-Reflective Coatings

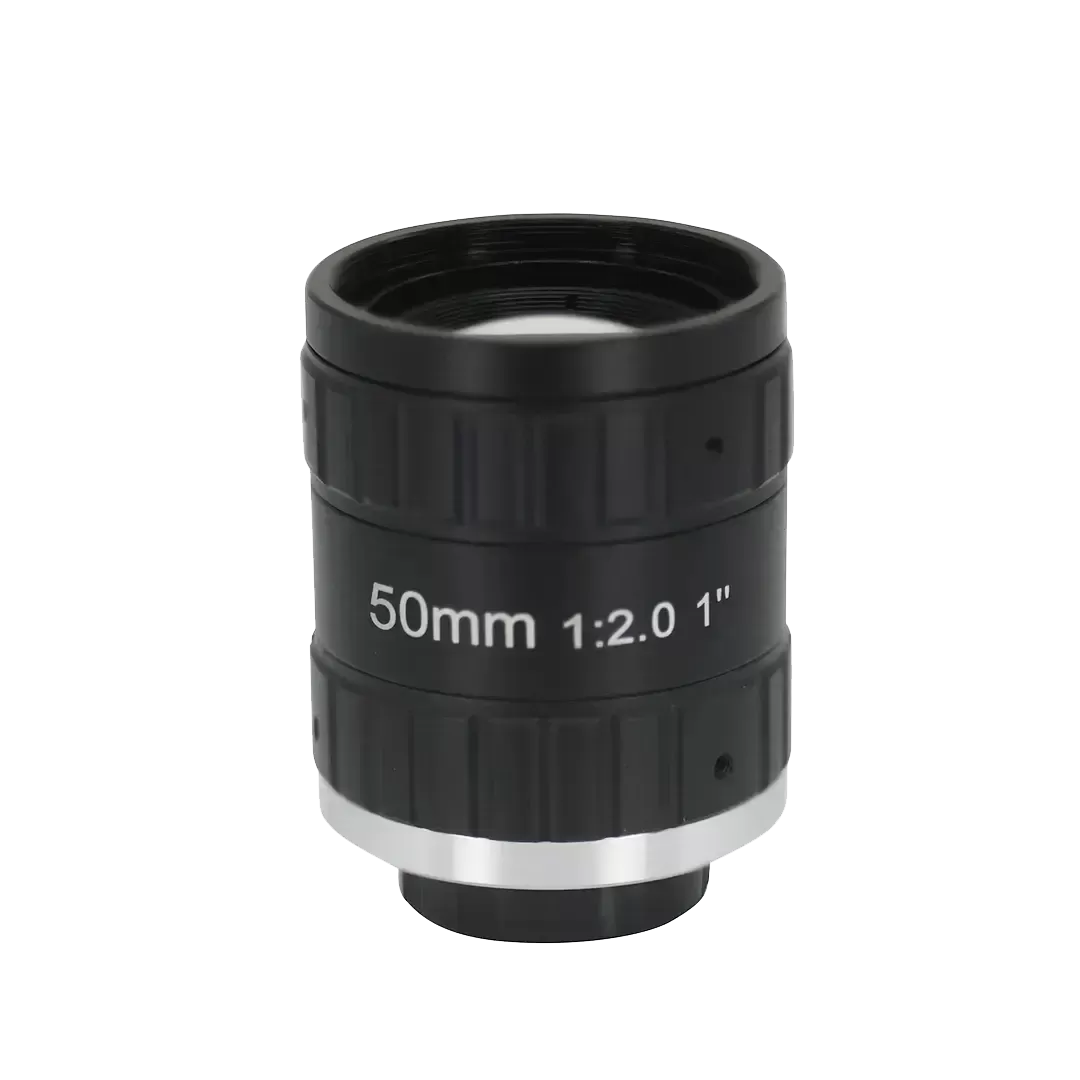

A specialized High-Definition FA Lens uses targeted glass materials and surface coatings to manage light across defined bands:
Broadband Color Correction: Combining anomalous dispersion glass eliminates focus shifts between visible and infrared bands.
Wavelength-Specific AR Coatings: Custom multi-layer anti-reflective (AR) coatings push transmission above 95% at designated laser or LED wavelengths.
Flare and Ghosting Control: Internal barrel baffling and anti-reflective blackened element edges suppress stray light, which is crucial when inspecting reflective metal pins or silicon wafers.
5. Ruggedization and Environmental Stability
Factory environments challenge delicate glass assemblies. Continuous mechanical shock, high-speed gantry accelerations, and fluctuating plant temperatures knock standard industrial lenses out of alignment.
A typical COTS lens relies on leaf springs, multi-piece zoom sleeves, and thumbscrews to secure optical elements. Under constant 5G to 10G forces, these internal mechanisms slide, causing optical axis drift and focal blur.
Building for Harsh Environments
True industrial ruggedization requires stable optomechanics designed for high acceleration:
Locked Element Rings: Replacing internal moving adjustments with solid, thread-locked retaining rings keeps optical elements seated properly.
Optical Axis Stability: Eliminating moving parts maintains central optical pointing accuracy, preventing pixel shifts when mounted on dynamic robotic arms.
Athermalization: Matching glass choices with barrel metal expansion coefficients keeps the focal plane steady despite ambient thermal swings.
6. Optical Calibration and Telecentricity Integration
Standard FA lenses produce perspective distortion (parallax error). As parts move closer to or farther from the lens along the optical axis, their apparent size changes. For parts with thickness variation, this shift causes measurement errors.
When metrology demands zero perspective error, engineers turn to telecentric lens customization or micro-telecentric options.
When to Move Beyond Standard FA Lenses
Depending on your budget, size limits, and accuracy demands, you must choose between a pure telecentric design and a low-distortion machine vision lens:
Object-Space Telecentricity: Keeps magnification identical across varying object depths, which is essential for components like stamped metal terminals or turned pins.
Deep Depth Calibration: Designing custom pupil locations minimizes chief ray angle divergence across the image plane, eliminating perspective distortion.
Integrated Lighting Ports: We can design beam-splitter cubes straight into the lens barrel to deliver on-axis coaxial lighting right to the inspection plane.
7. Design for Manufacturability (DFM) and Supply Continuity
A brilliant optical schematic on paper is useless if it cannot be manufactured reliably in volume. Theoretical designs that require impossibly tight tolerances cause yields to collapse during assembly, triggering production delays.
Practical optical engineering focuses heavily on Design for Manufacturability (DFM). Every surface curvature, glass type, and air gap must align with actual production tolerances.
Bridging Prototypes to Mass Production
Your optical partner must control the bridge between single-unit prototypes and volume manufacturing runs:
Monte Carlo Tolerance Analysis: Running tolerance models ensures that normal shop-floor variances in element thickness or refractive index will not compromise MTF limits.
Consistent Glass Sourcing: Relying on stable glass catalogs avoids exotic materials that create supply chain bottlenecks.
End-of-Line Verification: Every lens should pass strict MTF, distortion, and focal-length testing on dedicated optical benches before shipping out to your factory.
Jinyuan links precision design to manufacturing realities early in the process. We evaluate tolerances up front so that serial units perform with the exact same clarity as your initial prototype.
Custom Lens vs. Standard FA Lens: Comparison Matrix
| Parameter | Standard COTS FA Lens | Custom High-Definition FA Lens |
|---|---|---|
| MTF & Edge Sharpness | Drops 40-60% at field edges | Flat, high-contrast response across entire sensor |
| Optical Distortion | Typically 0.5% - 2.0% | Corrected below 0.05% |
| Spectral Range | 400 nm - 700 nm (Visible only) | Optimized for VIS, NIR, SWIR, or broad bands |
| Mechanical Footprint | Fixed dimensions; frequent frame interference | Folded or miniaturized for tight mechanical integration |
| Vibration Resistance | Thumbscrew locks; prone to optical drift | Robust internal structures resisting up to 10G forces |
Frequently Asked Questions
Q1: When should I switch from a standard catalog lens to a custom High-Definition FA Lens?
A1: You should consider a custom build when standard lenses fail your inspection targets. Common triggers include high edge distortion that breaks gauging algorithms, lack of contrast on small sensor pixels, space conflicts that require folded paths, or high scrap rates caused by vibration drift.
Q2: How does pixel pitch dictate lens selection?
A2: Pixel pitch sets the Nyquist frequency of your system. A sensor with 2.4 µm pixels needs optics that resolve high spatial frequencies past 100 lp/mm. If your lens cannot transmit contrast at that frequency, the sensor cannot deliver its rated resolution.
Q3: Can custom optical coatings improve image contrast under laser or LED light?
A3: Yes. Standard anti-reflective coatings target broadband white light. If your inspection uses monochromatic light (like 450 nm blue or 850 nm NIR), custom AR coatings can push light transmission above 95% at that specific wavelength while eliminating internal flare and reflections.
Q4: What mechanical data is required to start a custom lens development project?
A4: Essential parameters include the sensor format and pixel size, required field of view (FOV), working distance (WD) with acceptable ranges, maximum physical barrel dimensions, target spectral range, and the operational shock or vibration levels.
Q5: Is developing a custom industrial lens cost-prohibitive for mid-volume projects?
A5: Not necessarily. While custom builds require non-recurring engineering (NRE) costs upfront, they often reduce overall system costs. A custom lens eliminates expensive secondary lighting, removes software calibration steps, and avoids higher scrap rates caused by poor imaging.
Build Your Next Vision System with Jinyuan
Do standard industrial lenses limit your machine vision capabilities? Stop redesigning your machines around generic optics. Partner with engineers who understand precision optical fabrication from the ground up.
Jinyuan designs and produces high-performance optical components and custom industrial lenses configured precisely to your sensor layout, mechanical constraints, and target wavelengths.
Need to solve a difficult optical challenge? Submit your sensor specifications, working distance, and resolution requirements to our engineering team today for a technical evaluation within 24 hours.
