In precision optical instrumentation—from airborne surveillance gimbals to handheld laser rangefinders—the choice of structural material directly influences performance, portability, and field reliability. Over the past decade, aluminum alloy lightweight solutions have moved from a convenient alternative to the baseline specification for engineers who refuse to compromise between mass reduction and mechanical integrity. This article provides a component-level analysis of why high-strength aluminum alloys dominate modern optical customization, how they solve long-standing industry pain points, and what specifications matter when sourcing custom parts for mission-critical applications.
1. Why Material Density Alone Misleads: The Performance Vectors That Define Lightweight Success
Traditional material selection often fixates on density values, but for optical housings, lens barrels, and mounting brackets, the deciding metrics are specific stiffness (elastic modulus / density) and specific strength (yield strength / density). Aluminum alloys (particularly 6061-T6, 6063, and 7075-T6) offer an exceptional balance: a density of 2.70 g/cm³ (approximately one-third that of steel) while delivering yield strengths reaching 500 MPa after heat treatment. When compared to magnesium—which is lighter but prone to galvanic corrosion and lower hardness—or titanium—which is heavier and more difficult to machine—aluminum provides the widest design window for optical engineers.
Furthermore, the elastic modulus of aluminum (69 GPa) ensures predictable deflection under load, a property critical for maintaining optical axis alignment. A 20% reduction in housing weight compared to steel structures directly translates to lower inertia in pan-tilt mechanisms, reduced strain on drone payload mounts, and improved portability for field equipment. Manufacturers like Jinyuan leverage these properties by offering customized aluminum alloy lightweight components with tight wall thickness optimization—down to 0.8 mm in non-stressed areas while reinforcing load-bearing ribs—without inducing casting porosity or machining distortion.

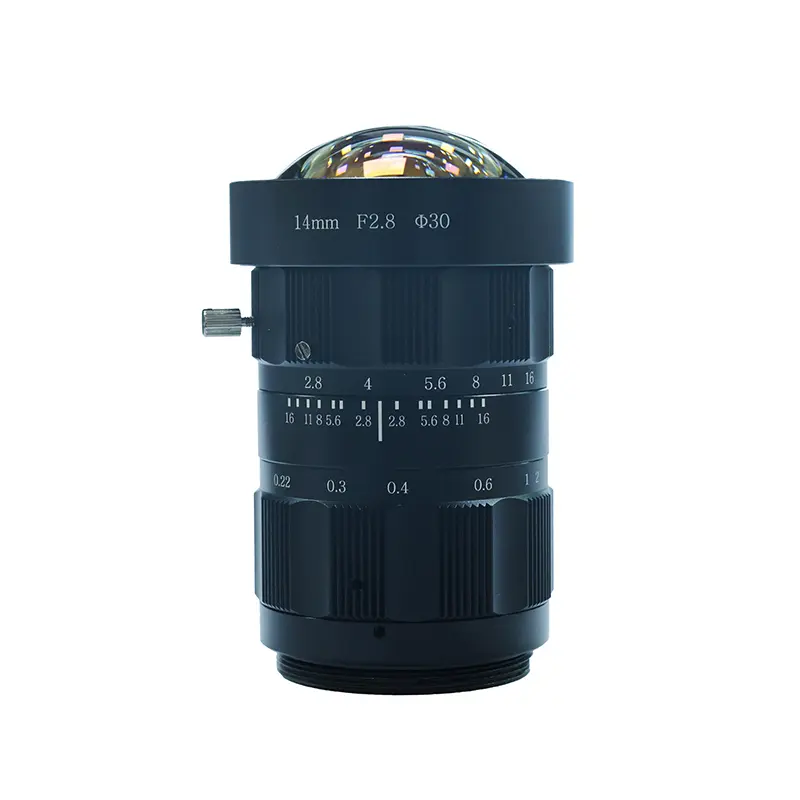

2. Optical-Specific Demands: Thermal Stability, Vibration Damping, and Surface Integrity
Optical systems are uniquely sensitive to two external factors: temperature gradients (causing focus shift and lens decentration) and vibration (introducing image blur). An aluminum alloy lightweight chassis addresses both challenges through intrinsic material behaviors.
2.1 Thermal Management and Coefficient of Expansion Matching
With a thermal conductivity of 167–210 W/m·K (depending on alloy temper), aluminum efficiently dissipates heat generated by internal electronics, lasers, or ambient solar loading. This prevents localized hot spots that could deform precision lens seats. Equally important, the coefficient of thermal expansion (CTE) of aluminum (~23 ppm/°C) can be successfully matched with common optical glasses and adhesives when proper interference fit designs are applied. For applications requiring extreme stability—such as high-power laser collimators—engineers specify hard anodized surfaces, which add a ceramic-like aluminum oxide layer (CTE ~8 ppm/°C) to further reduce thermal mismatch.
2.2 Structural Damping and Resonance Avoidance
Although aluminum has lower intrinsic damping capacity than cast iron, smart geometry design (ribbed enclosures, constrained layer dampers) effectively pushes resonant frequencies above operational bandwidths. Thin-wall aluminum alloy lightweight housings, when properly stiffened with honeycomb or lattice patterns, exhibit modal performance comparable to much thicker steel structures. Finite element analysis (FEA) is routinely applied during the custom design phase—a service provided by Jinyuan for optical OEMs—to identify and eliminate problematic harmonics before prototyping.

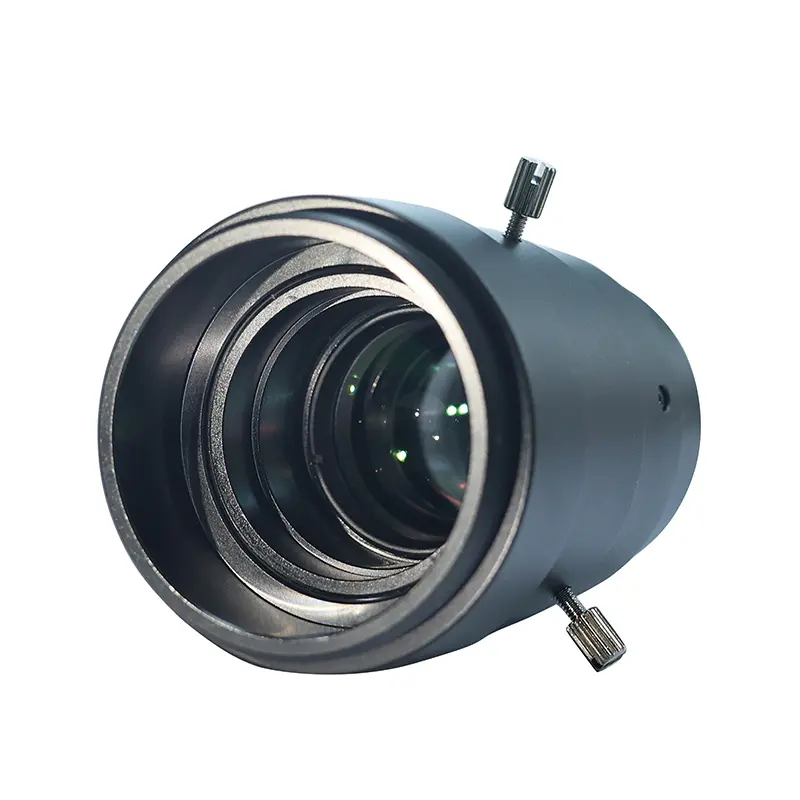

3. Precision Machining and Surface Treatment: From Raw Stock to Optical-Grade Finish
Raw mechanical properties only realize their potential through manufacturing precision. For optical components, typical dimensional tolerances range from ±0.01 mm to ±0.005 mm on critical mounting surfaces. The inherent machinability of aluminum (specific cutting energy approximately 0.6–1.0 W·s/mm³, significantly lower than stainless steel) allows high-speed CNC milling with excellent surface finishes (Ra 0.4–0.8 µm) without inducing work hardening.
Post-machining stress relief: Thermal cycling (cryogenic or artificial aging) eliminates residual stresses from heavy cutting, preventing long-term warpage that could misalign optical paths.
Hard anodizing (Type III): Produces a 25–75 µm thick oxide layer with surface hardness exceeding 60 HRC, offering abrasion resistance and electrical insulation for optical sensor housings.
Electroless nickel plating: Applied over aluminum when a non-magnetic, solderable, or uniformly reflective interior surface is required (common for integrating spheres and multi-spectral cameras).
Chromate-free conversion coatings: Provide baseline corrosion protection while maintaining electrical grounding—critical for EMI shielding in sensitive optical receivers.
Advanced optical customization also demands thread inserts, hermetic sealing grooves, and fiber optic feedthrough ports. Modern 5-axis machining of aluminum alloy lightweight blocks enables complex undercuts and internal cooling channels that would be impossible with die casting, ensuring zero porosity and complete material traceability.
4. Addressing Industry Pain Points: Weight, Field Maintenance, and Environmental Durability
Through hundreds of custom optical projects, three recurring challenges emerge where traditional materials fall short. Aluminum alloys, when specified correctly, provide direct remedies.
Pain Point #1: Excessive Payload Mass in Mobile Optical Systems
Aerial mapping LiDAR, thermal observation gimbals, and handheld rangefinders all suffer from operator fatigue or reduced flight endurance when housing weights exceed 1.5 kg. Replacing a steel housing (density 7.8 g/cm³) with an aluminum alloy lightweight equivalent reduces mass by approximately 65% while maintaining equal or greater stiffness through strategic rib placement. For a typical drone payload enclosure of 2 liters internal volume, this translates to a weight drop from 1.8 kg (steel, 1.5 mm wall) to just 0.7 kg (aluminum, 2 mm wall with optimized ribs).
Pain Point #2: Galvanic Corrosion at Dissimilar Interfaces
Optical instruments often integrate glass lenses, stainless steel fasteners, and electronic boards. Aluminum’s galvanic potential is well-documented; however, proper surface sealing (anodizing + PTFE-based seal) combined with isolating washers eliminates corrosion risks. When designing for marine environments or high-humidity zones, specifying 5052 or 6061 alloy with MIL-A-8625 Type III anodizing provides over 1000 hours of neutral salt spray resistance without pitting.
Pain Point #3: Dimensional Creep Over Temperature Cycles
Many optical assemblies require consistent focus across a -30°C to +60°C operational range. Aluminum’s thermal diffusivity (80–90 mm²/s) ensures that temperature equalizes rapidly across the housing, minimizing gradient-induced bending. For extreme precision applications, Invar inserts can be locally bonded into aluminum structures to create reference planes with near-zero CTE, combining lightweight benefits with metrology-grade stability.
5. Customization Workflow: From Concept to Certified Optical Housings
For B2B buyers, the value of an aluminum alloy lightweight component lies not just in the material but in the engineering partnership. A reliable custom manufacturer follows a structured process:
Requirement analysis: Load cases, thermal envelope, optical mounting interfaces, ingress protection rating (IP67/IP69K), and surface reflectivity constraints.
Design for manufacturability (DFM): Adjusting draft angles, minimum wall thickness, and tool access to reduce cycle time without compromising strength.
Prototyping via CNC or rapid vacuum casting: Functional validation with representative mechanical and thermal loading.
Production and quality assurance: CMM inspection, surface finish profilometry, and certification of material certificates (EN 10204 3.1).
Partnering with an experienced specialist like Jinyuan ensures that each step follows optical-grade protocols—from selecting the correct temper condition (T6, T651, etc.) to verifying flatness within 0.02 mm across 200 mm bearing surfaces. This rigor eliminates rework delays and field failures.
6. Application Spotlight: Where Aluminum Alloy Lightweight Delivers Indisputable Advantages
The following optical product categories consistently benefit from aluminum-based lightweight construction:
Handheld laser range finders & binoculars: Sub-400 g total weight, comfortable single-hand operation, and resistance to accidental drops.
Thermal weapon sights: Rigid one-piece housings that maintain zero retention after repeated recoil shocks (up to 1000 G).
Industrial machine vision cameras: Enclosures with integrated heat sinks for 24/7 operation in factory automation.
Underwater strobe and lighting systems: Corrosion-resistant anodized housings rated to 200 meters depth with o-ring grooves precisely machined.
Space-borne optical sensors: Radiation-tolerant aluminum alloys (6061-T6 with specific low-outgassing treatments) for satellite star trackers.
Each application demands a unique blend of alloy choice, heat treatment, surface finish, and tolerance allocation—all achievable with modern aluminum manufacturing technologies.
Making the Strategic Choice for Your Next Optical Program
Selecting an aluminum alloy lightweight strategy is not merely about reducing grams; it is about unlocking new operational capabilities—longer flight times, easier field handling, faster thermal stabilization, and reduced shipping costs. For custom optical projects where performance cannot be compromised, aluminum stands as the most mature, machinable, and cost-effective material platform available today. By integrating advanced surface treatments and precision CNC workflows, manufacturers deliver housings that meet the most stringent optical alignment standards.
To discuss your specific dimensional, thermal, or environmental requirements, contact the engineering team at Jinyuan. Our optical-dedicated division provides end-to-end support from material selection to serial production, ensuring your next product achieves its full performance potential without unnecessary mass.
Ready to optimize your optical instrument design? Send your technical specifications or preliminary CAD models to our inquiry desk. We will respond with a feasibility assessment and customized lightweight solution within 48 hours.
Frequently Asked Questions (FAQs)
Q1: What is the difference between 6061-T6 and 7075-T6 for optical housings?
A1: 6061-T6 offers excellent corrosion resistance, weldability, and moderate strength (yield ~275 MPa), making it ideal for general-purpose enclosures and prototypes. 7075-T6 provides nearly double the strength (yield ~500 MPa) with higher hardness, suitable for thin-wall, highly loaded components like weapon sight mounts or drone gimbal arms. However, 7075 is more susceptible to stress corrosion cracking if not properly coated. For most optical applications where ultimate strength is not the primary driver, 6061-T6 with hard anodizing is the preferred balance.
Q2: Can aluminum alloy lightweight parts be used in high-vibration environments like helicopter optics?
A2: Yes, provided the design incorporates adequate wall stiffness (through ribs or increased thickness at mounting points) and uses vibration-damping mounting interfaces (elastomeric isolators). Finite element modal analysis should confirm that natural frequencies exceed the highest excitation frequency (typically 500–2000 Hz for rotorcraft). Many military airborne optical sensors utilize 6061-T6 housings with MIL-STD-810 vibration certification.
Q3: How does anodizing affect the dimensional accuracy of precision optical seats?
A3: Hard anodizing builds an oxide layer that grows approximately 50% into the base material and 50% outward. For a specified coating thickness of 50 µm, the outer diameter increases by ~50 µm, and the inner diameter reduces by ~50 µm. Therefore, critical bearing surfaces should be either masked during anodizing or machined with pre-coating compensation. Experienced suppliers like Jinyuan provide pre- and post-coating measurement reports to guarantee final geometry.
Q4: Is aluminum alloy lightweight suitable for vacuum environments (e.g., electron microscopes or space chambers)?
A4: Yes, with proper material preparation. Aerospace-grade aluminum alloys (6061, 6082) are vacuum-compatible when degreased and baked. However, standard anodizing may trap residual moisture; thus, a vacuum-baked electroless nickel or passivated bare aluminum finish is recommended. Outgassing rates below 1×10⁻⁶ Torr·L/s·cm² are achievable, meeting requirements for high-vacuum optical systems.
Q5: What is the typical lead time for a custom aluminum alloy optical housing from drawing to first article?
A5: Depending on complexity and required surface treatments, prototyping typically requires 10–15 working days for CNC machining, plus 3–5 days for anodizing or plating. For small series production (50–200 units), lead times range from 3–5 weeks. Rush services (5–7 days for prototypes) are available at selected manufacturers. Always confirm surface treatment lead times separately, as specialized coatings like electroless nickel may add extra days.
