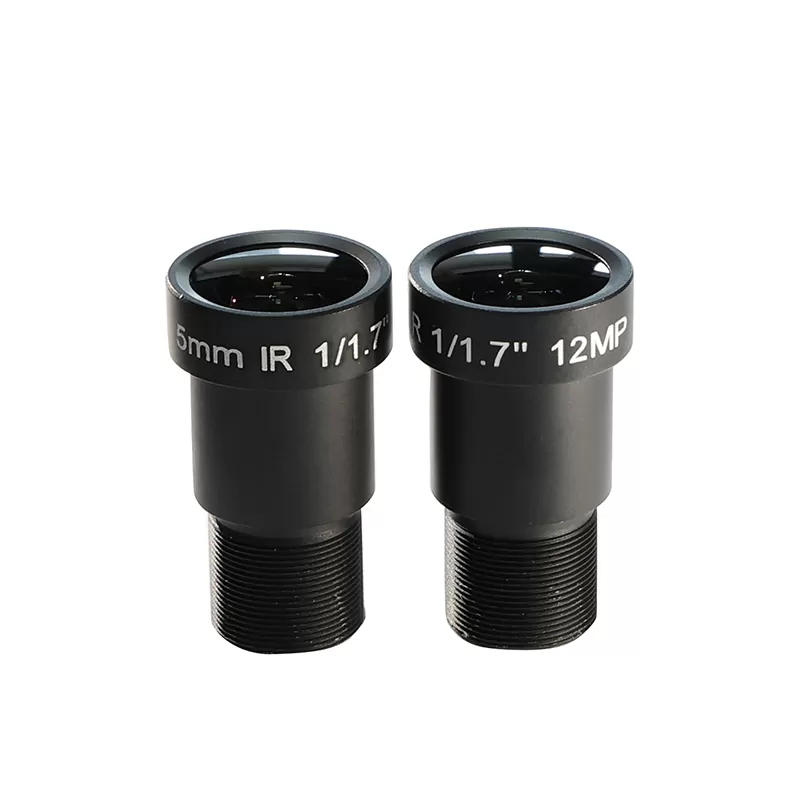

Optical designs tailored for industrial inspection, automated measurement, and long-range machine vision require careful management of focal length relative to sensor format. Utilizing a Long Focal Length 50mm configuration allows optical engineers to achieve narrower fields of view, extended working distances, and minimized perspective distortion across automated inspection lines. While 50mm is often categorized as a standard focal length in traditional photography, its role within high-resolution sensor integration and industrial optics functions as a specialized telephoto arrangement.
Precision optics developed by Jinyuan address the complex spatial, mechanical, and chromatic demands inherent in long focal distance imaging. Achieving flat-field response and high Modulation Transfer Function (MTF) performance at 50mm requires addressing geometric aberrations, mechanical housing expansion, and light throughput. Analyzing these optical variables provides systems integrators and vision specialists with the criteria required to select, design, and implement customized lens solutions.
Optical Fundamentals of 50mm Focal Architectures
The effective focal length (EFL) of an optical assembly determines its angular field of view and system magnification for a given distance to the object. In industrial imaging setups, choosing a Long Focal Length 50mm lens alters the chief ray angle, ensuring light hits the image sensor closer to normal incidence. This reduced angular envelope lowers shade degradation at the sensor edges and reduces parallax errors in measurement systems.
Aberration Mitigation and Elements Configuration
Designing high-performance optical systems with a 50mm focal length requires precise placement of internal glass elements. Higher focal lengths naturally extend the optical path, which can introduce secondary chromatic aberrations and spherical distortion if uncorrected.
Spherical Aberration: Managed through the application of precision aspheric surfaces, allowing marginal and paraxial rays to focus on a single focal plane.
Longitudinal Chromatic Aberration: Corrected using low-dispersion optical glass (such as dense crown or fluorite elements) to align red, green, and blue wavelengths across the optical axis.
Petzval Field Curvature: Balanced through double-Gauss or modified optical layouts to maintain edge-to-edge sharpness across large format image sensors.
Working Distance and Magnification Dynamics
Working distance refers to the physical clearance between the front optical element and the target object. A longer effective focal length extends this physical separation while maintaining high spatial resolution. Industrial vision systems often require physical clearance for light rings, robotic end-effectors, or protective optical windows. A 50mm optical configuration accommodates extended working distances without requiring wide-angle distortion compensation, making it suited for inline quality inspection where equipment clearance is required.
Sensor Compatibility and Spatial Resolution Alignment
The practical field of view delivered by any focal length depends directly on the active area of the chosen image sensor. When specifying a Long Focal Length 50mm optical system, engineers must match sensor format dimensions—ranging from smaller 1/1.8-inch formats up to 1.1-inch or large-format line-scan sensors—with the image circle generated by the lens design.
Field of View Dynamics Across Standard Sensor Sizes
The relationship between sensor diagonal and effective focal length dictates the system's angular field of view (AFOV). The table below outlines theoretical angular envelopes for a 50mm effective focal length across common industrial sensor formats:
1/2-Inch Sensor (6.4mm x 4.8mm): Horizontal AFOV approximately 7.3 degrees; ideal for high-magnification narrow-field target tracking.
2/3-Inch Sensor (8.8mm x 6.6mm): Horizontal AFOV approximately 10.1 degrees; widely used for component inspection at extended clearance.
1-Inch Sensor (12.8mm x 9.6mm): Horizontal AFOV approximately 14.6 degrees; provides a balanced compromise between resolution throughput and spatial coverage.
1.1-Inch Sensor (14.2mm x 10.4mm): Horizontal AFOV approximately 16.1 degrees; maximizes spatial pixel count without severe edge illumination roll-off.
Integrating a Long Focal Length 50mm objective onto smaller optical sensors creates a high spatial resolution setup that effectively magnifies distant target features. Conversely, coupling the same optical layout with large-format sensors yields a versatile telephoto setup capable of capturing broad surface details without geometric distortion.
Modulation Transfer Function (MTF) and Resolution Metrics
System resolution relies on the optic's ability to transfer contrast from the object plane to the sensor plane at specified spatial frequencies, measured in line pairs per millimeter (lp/mm). High-resolution sensors with pixel pitches under 2.74 microns demand optics capable of delivering high contrast at frequencies exceeding 100 lp/mm.
Maintaining high MTF values across the full image circle demands tight manufacturing tolerances. Element alignment tolerances must remain within sub-micron limits during assembly. Jinyuan applies advanced alignment techniques and custom optical coatings to ensure high contrast transfer across both visible and near-infrared (NIR) spectra.
Mechanical Stability, Thermal Compensation, and Coatings
Industrial imaging systems often operate in challenging environments exposed to mechanical vibration, temperature shifts, and ambient debris. Optomechanical design must reflect these operational constraints through stable structural engineering and ruggedization.
Passive Athermalization Techniques
Thermal variations alter the refractive index of glass elements (dn/dt) and expand the mechanical lens housing. These changes induce focus drift, degrading system image quality. Designing an athermalized optical assembly requires matching the thermal expansion coefficients (CTE) of the housing materials (such as anodized aluminum, brass, or Invar) against the thermal optic coefficients of the selected glass types.
Passive athermalization relies on selecting element combinations whose thermal focal shifts cancel each other out across a defined operational range (typically -20°C to +60°C). This stability allows optical systems to maintain crisp focus without active mechanical adjustment during long inspection cycles.
Optomechanical Integration and Fixed Aperture Designs
In environments subject to heavy machinery vibration, adjustable iris mechanisms and manual focus rings can shift over time, leading to system defocusing. Fixed-focus and fixed-aperture mechanical housings eliminate these moving parts. Optics can be permanently locked into place using industrial-grade adhesives, retaining optical centering and focus position despite continuous physical shocks.
Advanced Optical Coatings and Spectral Control
Light loss through surface reflection degrades overall optical performance and creates ghost images within multi-element lenses. Anti-reflective (AR) coatings are applied to every air-to-glass interface to maximize light transmission and mitigate flare.
Broadband Anti-Reflective (BBAR) Coatings: Provide high transmission across the visible spectrum (400nm - 700nm) with reflection losses below 0.5% per surface.
Vis-NIR Dual-Band Coatings: Engineered for applications using supplementary 850nm or 940nm illumination, maintaining high throughput across both visible light and near-infrared bands.
Short-Wave Infrared (SWIR) Coatings: Formulated for specialized substrates optimized from 1000nm to 1700nm, facilitating deep material inspection and thermal analysis.
Custom Manufacturing and Engineering Capabilities
Off-the-shelf optical components often present performance compromises, such as inadequate thread mounting, limited spectral transmission, or incompatible focal distances. Custom optical manufacturing overcomes these limitations by tailoring mechanical mount dimensions, element spacers, and optical coatings to match precise application specifications.
Optomechanical engineers at Jinyuan design custom lens assemblies tailored to complex operational parameters. Optical design workflows utilize Zemax and Code V simulations to optimize system performance prior to prototype fabrication. Advanced interferometric testing and optical collimation verify that every manufactured assembly meets target MTF, distortion, and optical axis alignment standards.
Customization capabilities include:
Custom mechanical interfaces, including C-mount, F-mount, M42, and specialized threaded housings.
Integration of custom optical filters directly into the internal lens architecture.
Environmental sealing up to IP67 ratings for harsh industrial or outdoor deployments.
Tailored chromatic corrections spanning from ultraviolet (UV) to short-wave infrared (SWIR) wavelengths.
Frequently Asked Questions
How does a Long Focal Length 50mm configuration impact field distortion?
A 50mm system generally exhibits lower optical distortion compared to shorter focal length wide-angle lenses. The narrower field of view minimizes perspective and barrel distortion, enabling accurate dimensional measurements across the target field without extensive digital software correction.
Can a 50mm lens assembly be integrated into SWIR imaging systems?
Yes, provided the glass substrates and anti-reflective coatings are specified for short-wave infrared wavelengths (1000nm to 1700nm). Standard optical glass absorbs or misdirects SWIR light, requiring specialized glass types such as zinc selenide, germanium, or specific dense flint glass variants designed for infrared transmission.
What is the difference between working distance and focal length?
Focal length is an inherent optical property of the lens system, defined as the distance from the rear principal plane to the focal point when parallel light rays enter the optic. Working distance is the physical space between the outermost mechanical or optical surface of the lens and the subject being imaged when focused.
Why is a fixed aperture preferred over an adjustable iris in industrial vision?
Fixed aperture designs eliminate movable mechanical blades that can shift under industrial vibration or wear out over extended use cycles. They maintain fixed depth of field and light throughput parameters, ensuring long-term consistency for automated visual inspection software.
How does sensor pixel pitch influence optical lens selection?
Smaller pixel pitches require an optical assembly capable of resolving higher spatial frequencies (lp/mm). If the lens cannot resolve details down to the pixel scale, the image will appear blurred despite the sensor's high megapixel rating. Optical selection must align the lens diffraction limit and MTF profile with the sensor's physical pixel dimension.
