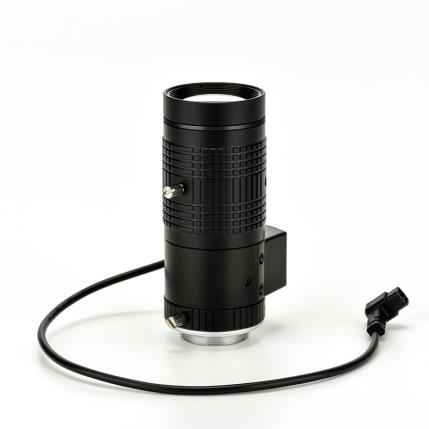

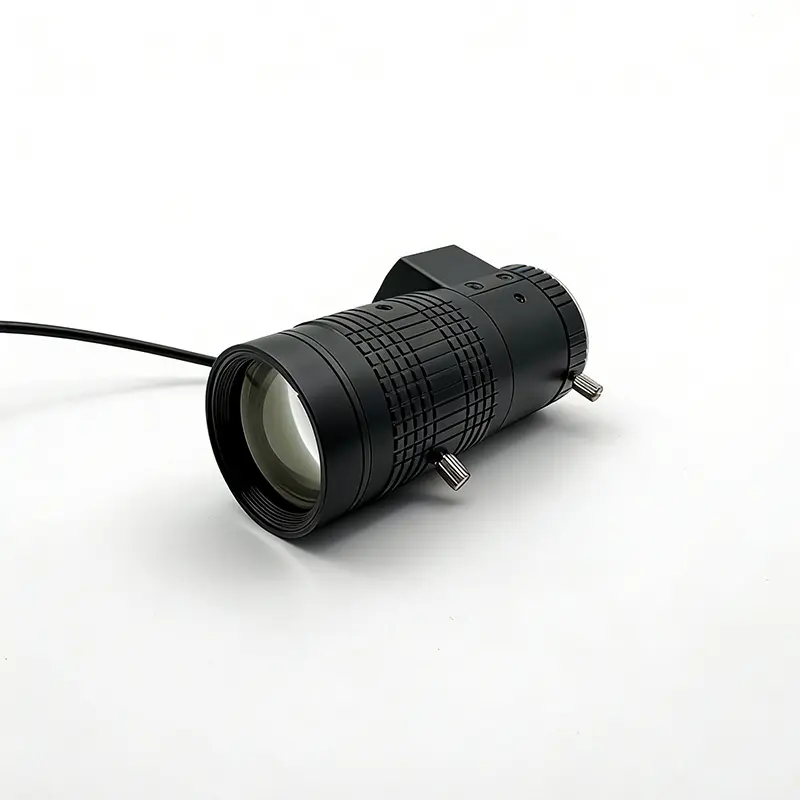

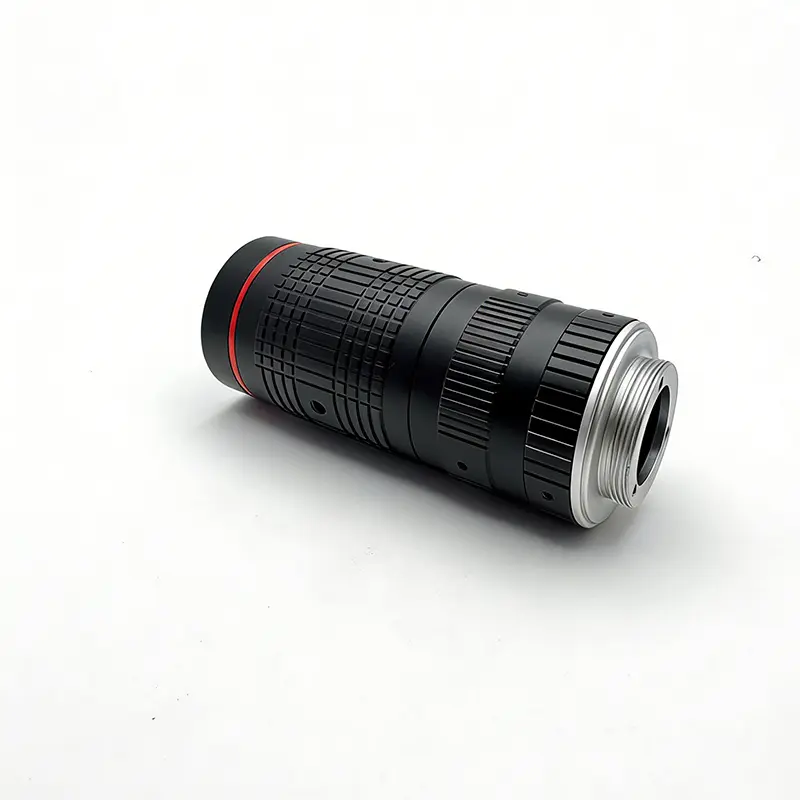

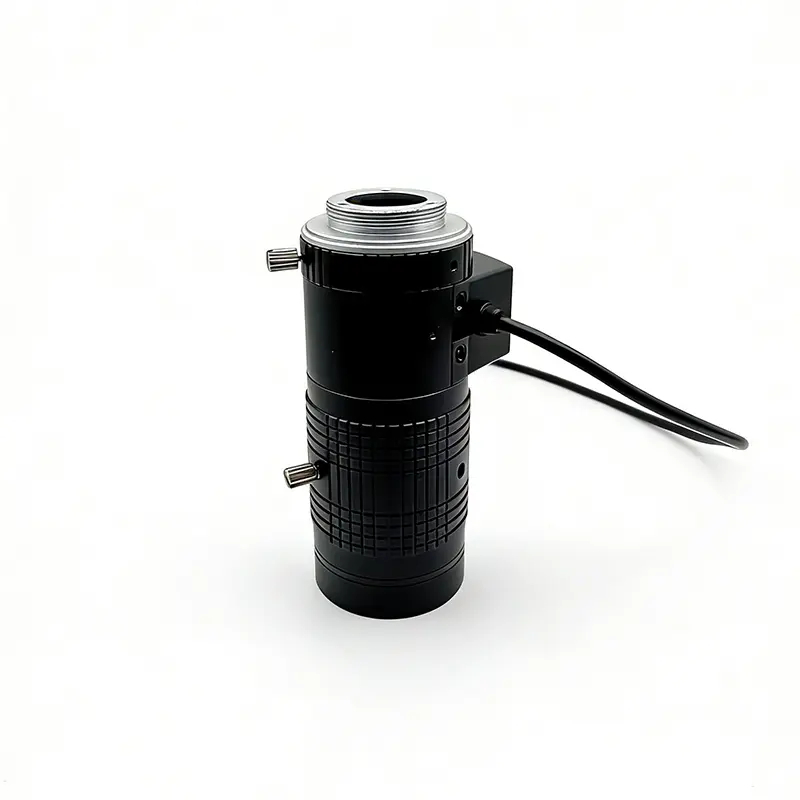

6MP 20X 5-100mm zoom security camera lens/ITS lens
Product Introduction
A high-performance industrial zoom lens designed for demanding security surveillance and machine vision applications. Compatible with 1/2.7-inch CMOS sensors, it offers a focal length range of 5–100 mm (20× optical zoom) and native support for 6 MP resolution imaging (3072 × 2048). The lens maintains exceptional optical consistency across the full zoom range, ensuring sharpness, contrast, and minimal distortion at all focal lengths. Its optical architecture is optimized for long-range, high-definition monitoring—enabling reliable wide-area situational awareness and accurate identification of fine or distant targets, even under low-illumination conditions.
Product Specifications
| Parameter of Lens | |||||||
| Model: | JY-127A05100AMPIR-6MP | ||||||
 | RESOLUTION | 6MP | |||||
| Image format | 1/2.7"(φ6.9) | ||||||
| Focal length | 5～100mm | ||||||
| Aperture | F1.8 | ||||||
| Mount | CS | ||||||
| System TTL | 97.45±0.3mm | ||||||
| (Field Angle)D×H×V(°)±5% | 1/2.7"(16:9) | 1/2.8"(16:9) | |||||
| Wide | Tele | Wide | Tele | ||||
| D | 68.5 | 3.73 | 66.6 | 3.60 | |||
| H | 60.7 | 3.27 | 60.1 | 3.20 | |||
| V | 36.2 | 1.84 | 35.2 | 1.78 | |||
| Chief Ray Angle | 3.4°(W)-2.6°(T) | ||||||
| Illumination | 40.0%(W)-61.1%(T) | ||||||
| Distortion | -3.0%(W)~1.3%(T) | ||||||
| Mechanical Bfl | 7.5 | ||||||
| Dimension | φ37X84.95mm | ||||||
| Wavelength | 430～650&850nm | ||||||
| Gross weight | 173g | ||||||
| M.O.D | 0.2(W)-1M(T) | ||||||
| IR Correction | Yes | ||||||
| Operation | Iris | DC/Manual | |||||
| Focus | Manual | ||||||
| Zoom | Manual | ||||||
| Operating temperature | -20℃~+70℃ | ||||||

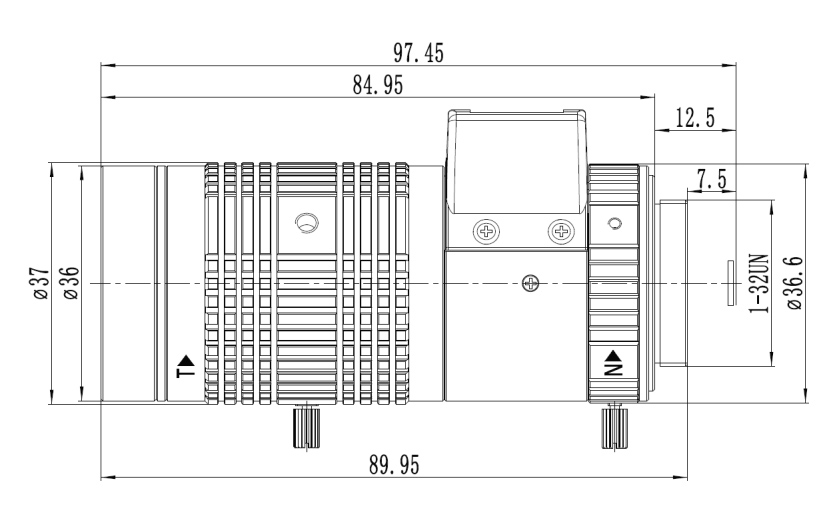

| Size | |||||||
 | |||||||
Key Application Areas
1. Intelligent Security Surveillance
• Perimeter protection (parks, industrial parks, residential communities): Wide-angle view for broad threat detection; telephoto zoom for detailed inspection of entry points, boundaries, and restricted zones.
• Traffic intelligence (intersections, toll gates, checkpoints): Captures license plates, vehicle make/model, and occupant features at 200–500 m—even in changing light.
• Public facilities (schools, hospitals, retail centers): Switches instantly from wide-area coverage (5 mm) to targeted zoom on corridors, stairwells, or POS terminals for incident review.
• Logistics & warehousing: Tracks entire warehouse floors *and* verifies individual SKUs, pallets, or container markings—without switching lenses.
• Critical infrastructure (border posts, substations, oil/gas sites, coastal stations): One lens replaces multiple fixed-focal systems—delivering continuous, high-res monitoring across multi-kilometer ranges with zero blind spots.
2. Industrial Machine Vision
• Production line diagnostics: Wide-angle for real-time workflow and timing oversight; telephoto for close inspection of weld seams, robot alignment, or PCB solder joints.
• Large-structure inspection: Detects corrosion, cracks, or dimensional flaws on wind turbines, bridges, towers, and offshore platforms—contact-free, from a distance.
• High-speed sorting: Reads 1D/2D barcodes, OCR text, and alphanumeric marks reliably at ≥3 m—on moving conveyors or UAVs.
3. Specialized Use Cases
• Environmental monitoring: Enables wildfire detection, NDVI-based vegetation analysis, and weather estimation using multispectral-ready optics.
• Wildlife research: Supports long-range, low-disturbance observation—ideal for nocturnal or sensitive species.
• Mobile platforms: Certified for UAV gimbals and vehicle-mounted PTZ systems; maintains resolution and stabilization under 5 g acceleration and pitch/yaw motion.
4. Deployment Guidelines and Integration Recommendations
• Sensor Selection: Use only 1/2.2.7-inch CMOS sensors with ≥6 MP resolution and ≤2.9 µm pixel pitch to maintain diffraction-limited performance across the full zoom range.
• Mechanical Integration: Use CS-mount cameras only. Verify flange distance (12.5 mm ± 0.05 mm) and back-focus alignment during installation to avoid vignetting, soft edges, and parallax errors.
Warranty for one year since your purchase from original manufacturer.
