Industrial imaging systems operate in increasingly demanding environments. From subsea exploration and sewer pipe inspections to automated food washdown lines, the integrity of optical components directly determines system reliability. Standard imaging hardware fails rapidly when exposed to high humidity, water spray, or total submersion. To prevent premature component failure, system designers must integrate specialized hardware capable of maintaining seal integrity while delivering precise optical performance.
A high-performance waterproof usb camera lens serves as the primary barrier between sensitive optoelectronic sensors and destructive external liquids. Selecting or customizing these components requires an understanding of mechanical sealing, material sciences, optical refraction physics, and digital signal transmission. This analysis examines the engineering parameters necessary to deploy sealed imaging systems in challenging B2B applications.

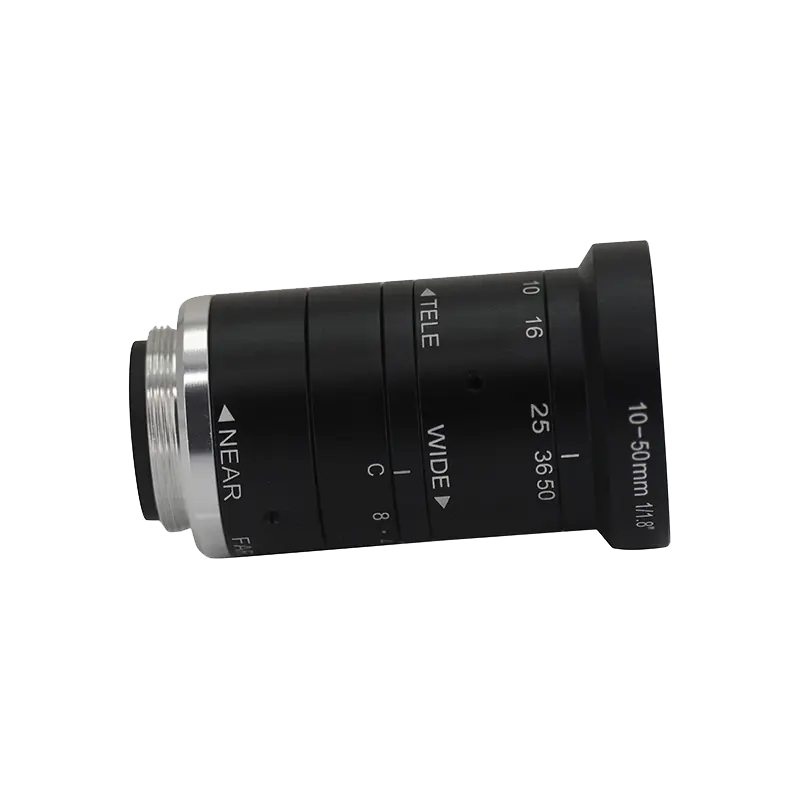

Mechanical Engineering Challenges in Wet and Submerged Environments
Designing an optical assembly capable of resisting water ingress involves managing pressure differentials and material degradation. When an imaging system is submerged, hydrostatic pressure increases by approximately 0.1 bar per meter of depth. This pressure exerts continuous force on every joint, seal, and glass-to-metal interface within the assembly. Underestimating these physical forces leads to micro-gaps that allow moisture to penetrate the housing, destroying internal sensor electronics.
Ingress Protection (IP) ratings define the sealing capabilities of an enclosure. For liquid environments, two primary standards apply:
IP67: Dust-tight and protected against temporary immersion in water up to 1 meter for 30 minutes. This rating is suitable for splash-prone environments or shallow, intermittent submersion.
IP68: Dust-tight and protected against continuous immersion under conditions specified by the manufacturer. This usually implies deeper submersion and continuous operational capabilities.
IP69K: Designed to withstand high-pressure, high-temperature washdowns, typical in food processing and pharmaceutical manufacturing.
To meet these standards, Jinyuan focuses on material selection for both the lens barrel and the housing. Aluminum alloys, such as anodized AL6061-T6, offer an acceptable strength-to-weight ratio and moderate corrosion resistance. However, for continuous submersion in marine environments, marine-grade bronze or 316L stainless steel is utilized to prevent galvanic corrosion and pitting caused by chloride ions in seawater. Material selection must also account for thermal expansion coefficients; mismatched expansion rates between glass lenses and metal barrels can compromise seals during temperature fluctuations.
Optical Refraction Adjustments for Sealed Systems
When light travels through different media, its velocity changes, causing it to bend. In a standard dry environment, light transitions from air (refractive index approximately 1.0) to the protective glass cover and then into the lens elements. When a waterproof usb camera lens is submerged, the light travels from water (refractive index approximately 1.33) directly into the flat protective window of the lens assembly.
This change in the refractive index interface alters the system's optical path. The primary consequences of this physical shift include:
Field of View Reduction: The transition from water to glass reduces the refraction angle, narrowing the effective field of view (FOV) by roughly 30% compared to operation in air. A wide-angle lens designed for dry land becomes a narrow-angle lens underwater.
Focal Shift: The focus point shifts backward, which can cause images to appear blurry if the sensor position is not adjusted to compensate for the altered optical path.
Geometric Distortion and Chromatic Aberration: Light rays passing through a flat boundary at steep angles experience pincushion distortion and chromatic dispersion, reducing resolution at the periphery of the image.
To correct these aberrations, Jinyuan implements custom optical designs. One approach involves replacing flat protective windows with dome ports. A dome port acts as a concentric optical element, ensuring that incoming light rays enter perpendicular to the curved glass surface. This preserves the original field of view and minimizes chromatic aberration. Another method involves recalculating the internal lens elements specifically for a water-to-glass interface, neutralizing the refraction changes before the light reaches the image sensor.
Internal fogging represents another optical hazard. When a sealed camera moves from a warm environment to cold water, the temperature drop causes any humidity trapped inside the housing to condense on the inner surface of the lens. To mitigate this, Jinyuan assembles these systems in controlled cleanrooms with ultra-low humidity. The internal air volume is purged with dry nitrogen gas or argon, and desiccant packets are integrated into the internal mechanics to capture any residual moisture molecules.

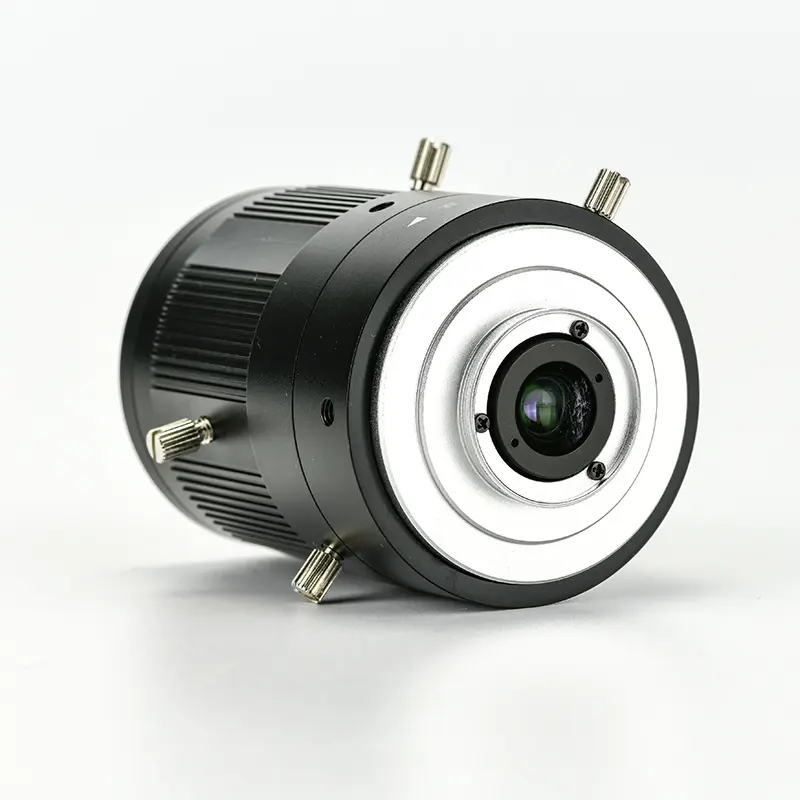

Mechanical Sealing Technologies and Active Alignment
The physical barrier of a waterproof usb camera lens relies on elastomeric seals. O-rings are the standard solution, but their performance depends on precise engineering calculation. Designers must specify the correct elastomer material based on the operational temperature range and exposure to chemicals:
Viton (FKM): Excellent resistance to chemicals, oils, and high temperatures, making it suitable for industrial machinery and chemical plants.
Nitrile (NBR): Good resistance to petroleum-based fluids and physical wear, widely used in standard industrial applications.
EPDM: Highly resistant to water, steam, and ozone, though unsuitable for environments containing petroleum products.
The physical groove that houses the O-ring must be machined to precise tolerances. If the groove is too shallow, the O-ring will be over-compressed, leading to premature material degradation and seal failure. If the groove is too deep, the lack of compression will allow water to pass under pressure. Typically, a static seal requires a compression rate between 15% and 25% to maintain a secure barrier without damaging the elastomer.
Maintaining high image quality across the entire sensor frame requires precise alignment of the optical elements relative to the image sensor. In a waterproof assembly, adding protective windows and robust housings introduces extra mechanical tolerances. If any element is slightly tilted, the image will suffer from asymmetric defocusing, where one side of the frame is sharp while the opposite side is blurry. Jinyuan addresses this during assembly using active alignment processes. Instead of relying purely on mechanical fit, the lens is positioned while the sensor is actively imaging a target. The software analyzes real-time sharpness across the entire frame, allowing fine robotic adjustments before the components are permanently bonded with UV-curable adhesives.
USB Interface and Signal Integrity
A waterproof usb camera lens is only as reliable as the cable and connector system transmitting its data. The USB standard offers significant advantages, including plug-and-play functionality, compatibility with standard operating systems via the UVC (USB Video Class) protocol, and direct power delivery over the same cable. However, high-speed data transmission introduces specific physical challenges in wet environments.
USB 2.0 supports data rates up to 480 Mbps, which is sufficient for compressed video formats (MJPEG or H.264) at moderate resolutions. USB 3.0 and newer versions support bandwidths of 5 Gbps and higher, allowing uncompressed high-resolution video transmission. These high frequencies make the signal vulnerable to attenuation and impedance mismatches. Moisture inside a connector changes the dielectric properties of the contact area, causing immediate signal degradation, packet loss, or complete disconnection.
To ensure signal integrity, Jinyuan utilizes molded waterproof connectors, such as M12 circular connectors, rather than standard consumer USB-A or USB-C ports. These industrial-grade connectors feature threaded locking mechanisms and integrated O-rings, achieving IP67 or IP68 ratings even when mated. The cabling itself must be jacketed in materials like polyurethane (PU) or thermoplastic elastomer (TPE) to resist abrasion, hydrolysis, UV radiation, and microbial growth in outdoor or underwater deployments.
Industrial and Commercial Application Scenarios
The deployment of robust imaging systems spans several key industries, each presenting unique environmental demands:
Subsea Robotics and Marine Research
Remotely Operated Vehicles (ROVs) and Autonomous Underwater Vehicles (AUVs) require high-resolution imaging to navigate, inspect underwater infrastructure, and document marine life. These systems operate at depths ranging from a few meters to several kilometers. The optical assemblies must withstand extreme pressures while delivering clear, undistorted video to surface operators.
Sewer and Pipeline Inspection Crawlers
Inspection robots designed to travel through municipal sewer lines operate in highly corrosive, damp, and dirty environments. The camera system must resist exposure to hydrogen sulfide gas, industrial grease, and harsh detergents. This scenario requires highly scratch-resistant front optical elements, often utilizing sapphire glass protective covers coupled with a ruggedized aluminum or stainless steel housing.
Food Processing and Cleanroom Automation
In food production, machinery must undergo regular cleaning procedures involving high-pressure, high-temperature chemical sprays to maintain hygiene standards. Imaging systems used for quality control, sorting, or robotic guidance must carry IP69K certifications. The housings must be made of non-reactive materials like 316L stainless steel, with gaskets that do not degrade when exposed to acidic or alkaline sanitizers.
Outdoor Security and Intelligent Agriculture
Cameras deployed in agricultural machinery or outdoor security networks must operate reliably through rain, snow, high humidity, and extreme temperature variations. Standard enclosures often suffer from condensation on the inside of the glass, rendering the system useless. Utilizing a fully sealed, nitrogen-purged optical module ensures continuous operation regardless of ambient weather shifts.
Customizing Optical Solutions for Specialized Requirements
Standard off-the-shelf camera lenses rarely meet the precise requirements of highly specialized industrial applications. Differences in sensor sizes, working distances, illumination conditions, and mechanical envelope constraints necessitate tailored optical designs. Jinyuan collaborates with engineering departments to design, prototype, and manufacture customized optical assemblies that integrate seamlessly into existing product frames.
By evaluating the exact environmental conditions—such as chemical exposure profiles, depth requirements, and temperature ranges—our team can select the appropriate materials, optical coatings, and sealing geometries. This structured engineering approach guarantees that your imaging system will perform consistently throughout its operational lifecycle.
To discuss your custom optical requirements, request mechanical drawings, or obtain volume manufacturing quotes, please contact the Jinyuan engineering and sales department to initiate a technical consultation.
Frequently Asked Questions
Q1: Why does a standard USB camera lens fail when placed inside a generic waterproof housing?
A1: Generic housings often fail to address the optical refraction changes that occur when light passes from water through a flat window. This causes a reduced field of view, focal shifts, and optical aberrations. Furthermore, standard housings do not prevent internal fogging caused by temperature drops unless they are purged with dry gas and assembled in controlled humidity environments.
Q2: What is the benefit of using sapphire glass instead of standard optical glass for the front window?
A2: Sapphire glass has exceptional hardness, second only to diamond. This makes it highly resistant to scratching from abrasive materials like sand, debris, or harsh cleaning tools. It also possesses high thermal conductivity, which helps reduce localized condensation, and is chemically inert, resisting degradation from highly corrosive fluids.
Q3: How does temperature affect the sealing integrity of a waterproof usb camera lens?
A3: Temperature changes cause materials to expand or contract. Elastomer seals like O-rings can lose their elasticity in extreme cold, while high heat can cause them to soften or degrade. Jinyuan carefully matches the thermal expansion coefficients of the lens barrel, glass elements, and housing metals, and selects specialty elastomers designed to maintain sealing force across the entire operating temperature range.
Q4: Can a waterproof USB camera system be used with standard software drivers?
A4: Yes, provided the internal camera electronics support the USB Video Class (UVC) standard. This allows the camera to interface with standard operating systems like Windows, Linux, and Android without requiring proprietary driver installations. This standardization simplifies integration into complex industrial software systems.
Q5: How does Jinyuan test the waterproof integrity of its optical assemblies before shipping?
A5: Jinyuan utilizes multi-stage testing protocols. This includes vacuum decay testing to check for micro-leaks in the dry assembly, followed by pressurized immersion testing in specialized chambers that simulate specific underwater depths. For systems requiring higher certification, environmental chambers are used to cycle temperatures while the unit is monitored for ingress or internal condensation.
