5-50mm F1.6 Vari-Focal Zoom Lens for Security Camera and machine vision system

Short Description:

High resolution 5-50mm C/CS mount Varifocal security camera lens,compitable with 1/2.5 inch image sensor camera

Products features:

● Using in security camera, Industrial Camera, Night vision device, Live streaming equipment

● High resolution, Support 5MP camera

● Metal structure, All glass lenses, operating temperature:-20℃ to +60℃, Long lasting durability

● Infrared correction, day-night confocal

● C/CS mount

Product Detail

Product Tags

Product Specifications

Model No JY-125A0550M-5MP
Aperture D/f' F1:1.6
Focal-Length  (mm) 5-50mm
Mount C
FOV(D) 60.5°~9.0°
FOV(H) 51.4°~7.4°
FOV(V) 26.0°~4.0°

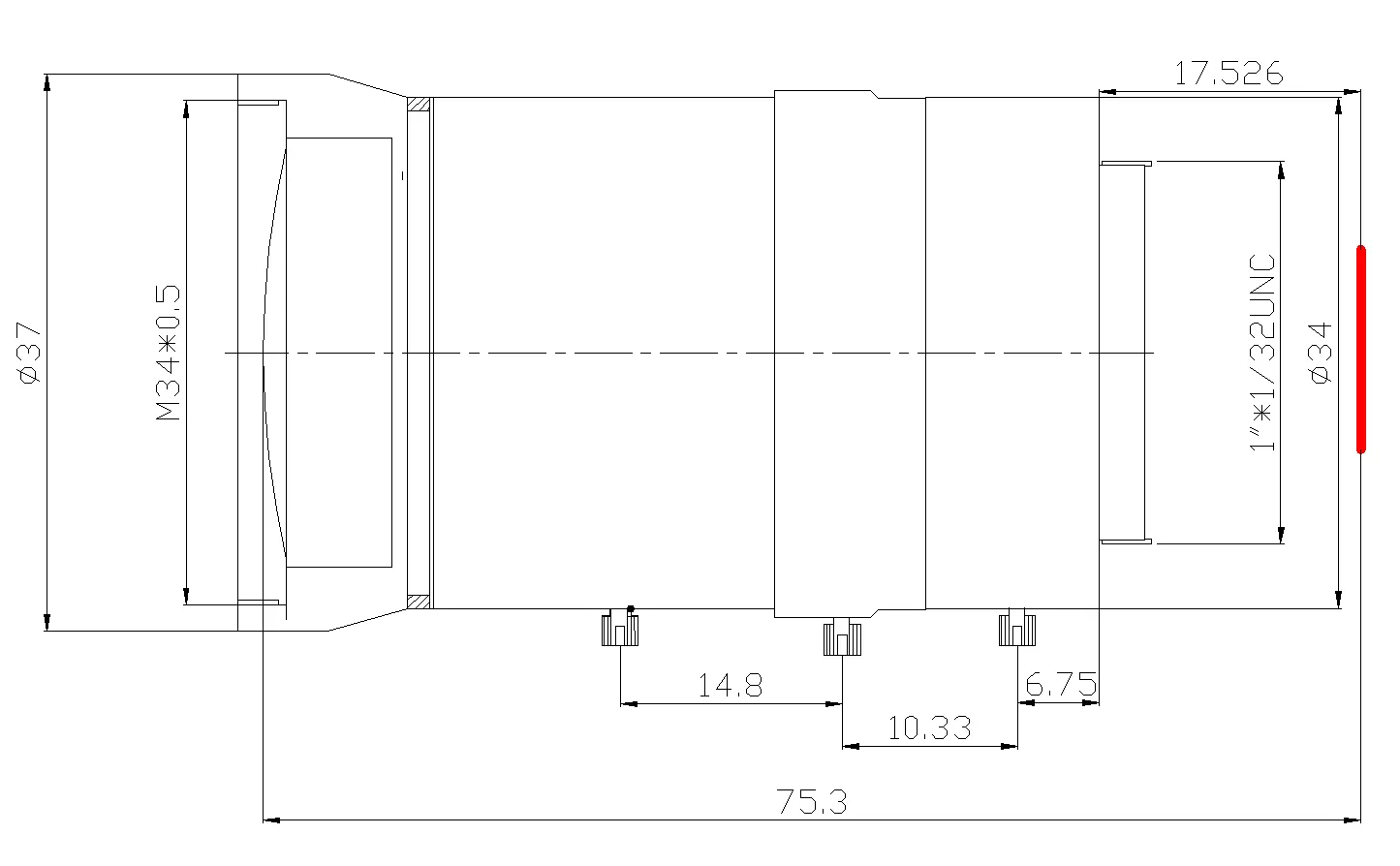

Dimension  (mm) Φ37*L62.4±0.2
M.O.D  (m) 0.3m
Operation Zoom Manual
Focus Manual
Iris Manual
Operating Temerature -20℃~+60℃
Filter mount M34*0.5
Back Focal-Length  (mm) 12-15.7mm

Product Introduction

The Varifocal security camera lenses with an adjustable focal length, angle of view and level of zoom, allow you to find the perfect field of view, so you can cover as much ground as you need with your camera. At its lowest focal length, the Varifocal Megapixel Lens 5-50 mm offers a traditional surveillance camera view. The 50 mm setting is used when it is not possible to place the camera close enough to the object, due to natural obstacles or for semi-covert surveillance operations.

Jinyuan Optics JY-125A0550M-5MP lens are designed for HD security cameras which Focal Length is 5-50mm, F1.6, C mount, in Metal Housing, Support 1/2.5’’ and smaller senor,5 Megapixel resolution. It also can be used in Industrial Camera, Night vision device, Live streaming equipment. Its field of view ranges from 7.4° to 51° for 1/2.5’’ sensor. The C-mount lens is directly compatible with the C-mount camera. It can also be applied to CS-mount camera by inserting a CS-mount adapter between the lens and the camera.

Application Support

If you need any support in finding suitable lens for your camera, please do kindly contact us with further details, our highly skilled design team and professional sales team would be glad to assist you. We are committed to providing customers with cost-effective and time-efficient optics from R&D to finished product solution and maximizing the potential of your vision system with the right lens.
