4mm Fixed focal length CS Mount Security Camera Lens
Product Specifications
| Model No | JY-127A04F-3MP | ||||||||
| Aperture D/f' | F1:1.4 | ||||||||
| Focal-Length (mm) | 4 | ||||||||
| Mount | CS | ||||||||
| FOV(Dx H x V) | 101.2°x82.6°x65° | ||||||||

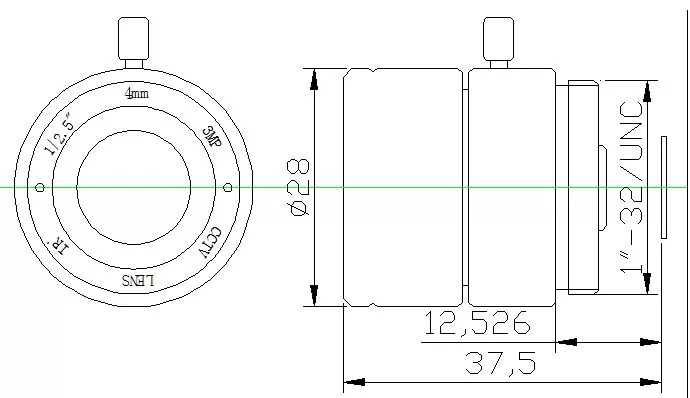

| Dimension (mm) | Φ28*30.5 | ||||||||
| CRA： | 12.3° | ||||||||
| M.O.D (m) | 0.2m | ||||||||
| Operation | Zoom | Fix | |||||||
| Focus | Manual | ||||||||
| Iris | Fix | ||||||||
| Operating Temerature | -20℃~+80℃ | ||||||||
| Back Focal-Length (mm) | 7.68mm | ||||||||
Product Introduction
Selecting the appropriate lens allows you to optimize the surveillance coverage of your camera. Specially designed 4mm CS camera lens can be used on any standard box camera with CS mount capabilities. Lens CS mount 1/2.7’’ 4 mm F1.4 IR is a fixed lens with 82.6° horizontal field of view (HFOV). The lens is designed for HD surveillance camera/HD box camera/HD network camera with a resolution of up to 3 megapixels and is compatible with 1/2.7-inch sensors. It can provide your camera with an ultra-clear field of view and high image clarity. The mechanical part adopts a robust construction, including a metal shell and internal components, making the lens suitable for outdoor installations and harsh environments.
Product Features
Focal length：4mm
Field of view(D*H*V):101.2°*82.6°*65°
Aperture range: Large aperture F1.4
Mount type: CS mount, C and CS mount compatible
Lens has IR-function, it can be used in the night.
All glass and metal design, no plastic structure
Environmentally friendly design - no environmental impacts are used in optical glass materials, metal materials and package material
Application Support
If you need any support in finding right lens for your application, please do kindly contact us with further details, our highly skilled design team and professional sales team would be glad to assist you. To maximize the potential of your vision system, we will provide fast, efficient, and knowledgeable support. Our primary objective is to match each customer to a right lens that will meet their needs.
Warranty for one year since your purchase from original manufacturer.
