14X eyepieces,0.39inch night vision camera screen viewfinder
Product Specifications
| Model NO.: | JY-MJ14X039 | ||||||||
| Focal Length (mm) | 13.5mm | ||||||||
| Magnification | 14X | ||||||||
| MOUNT | M33x0.75 | ||||||||
| Applicable Displays | 0.39’’ | ||||||||
| Entrance pupil distance | 6mm | ||||||||
| Exit pupil distance | 39 | ||||||||
| Optical Distortion | ＜1% | ||||||||
| Adjust to | ﹣630，﹢410 | ||||||||

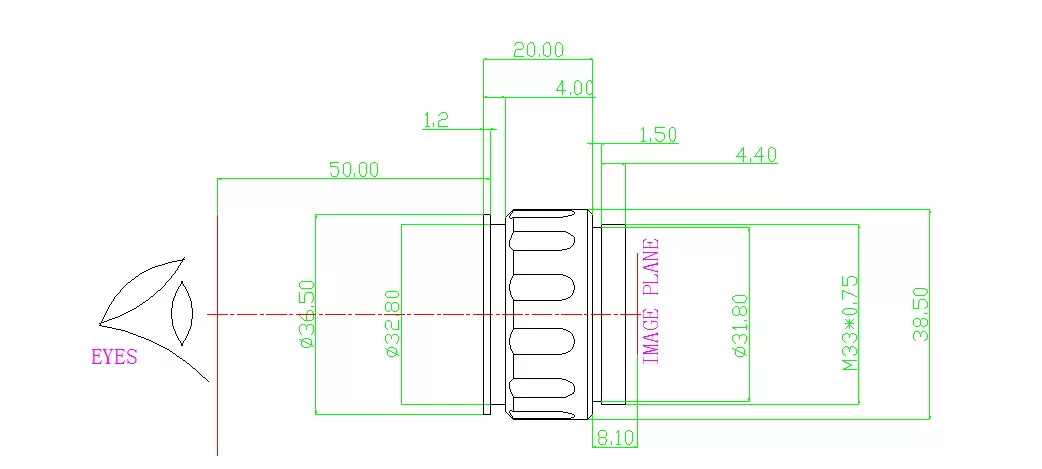

| Dimension（mm) | φ38.5x25.9±0.1 | ||||||||
| BFL | 6.4mm | ||||||||
| MBF | 8.1mm±0.1 | ||||||||
| Distortion | ＜-1.7% | ||||||||
| Operation | Zoom | Fixed | |||||||
| Focus | Manual | ||||||||
| Iris | Fixed | ||||||||
| Operating Temerature | -20℃~+60℃ | ||||||||
| |||||||||
| Tolerance：Φ±0.1，L±0.15,unit：mm | |||||||||
Product Introduction
The eyepiece, or ocular, magnifies the primary image produced by the objective; then eye can use the full resolution capability of the objective. An eyepiece is essentially a combination of lenses used as a magnifier, it projects the generated optical signal onto pupil of the eye through a series of optical components, and finally enables human eye to observe a clear image.

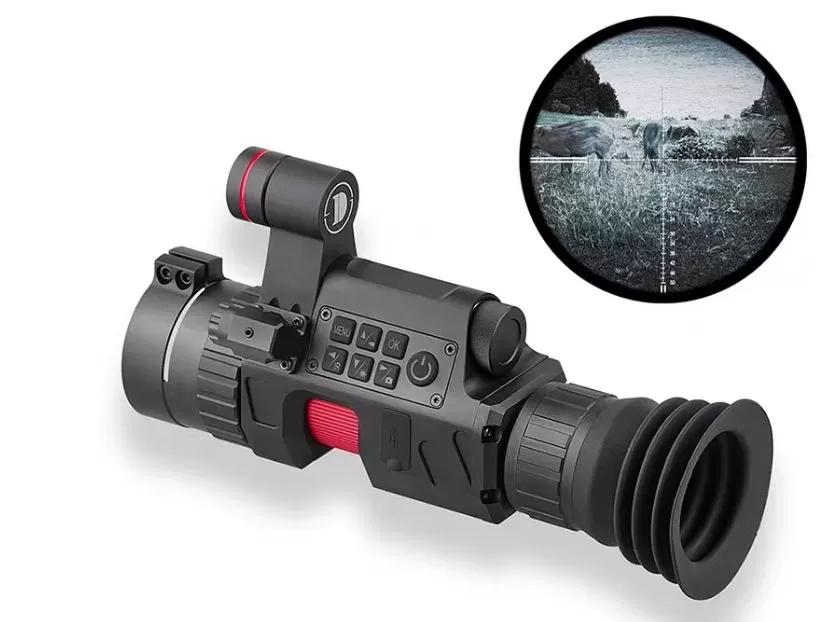

Night vision devices are powerful tools that allow us to see in the dark. Night vision devices can use different methods to amplify and display images with little available light, thereby enhancing your field of view. Night vision is widely used in search and rescue, wildlife observation, navigation, security and other fields. The eyepiece is an important component for night vision device.
Jinyuan Optics 13.5 mm,14X eyepiece can be used in night vision device, Electronics toy gun. It is applicable to 0.39’’ displays.
Product Features
Focal length：13.5mm
Magnigication:14X
Mount: M33*0.75
Exit pupil distance:39mm
Applicable Displays:0.39’’
All glass and metal design, no plastic structure
Environmentally friendly design - no environmental impacts are used in optical glass materials, metal materials and package material
Support OEM/ODM
Application Support
If you need any support in finding right lens for your application, please do kindly contact us with further details, our highly skilled design team and professional sales team would be glad to assist you. To maximize the potential of your vision system, we will provide fast, efficient, and knowledgeable support. Our primary objective is to match each customer to a right lens that will meet their needs.
Warranty for one year since your purchase from original manufacturer.
