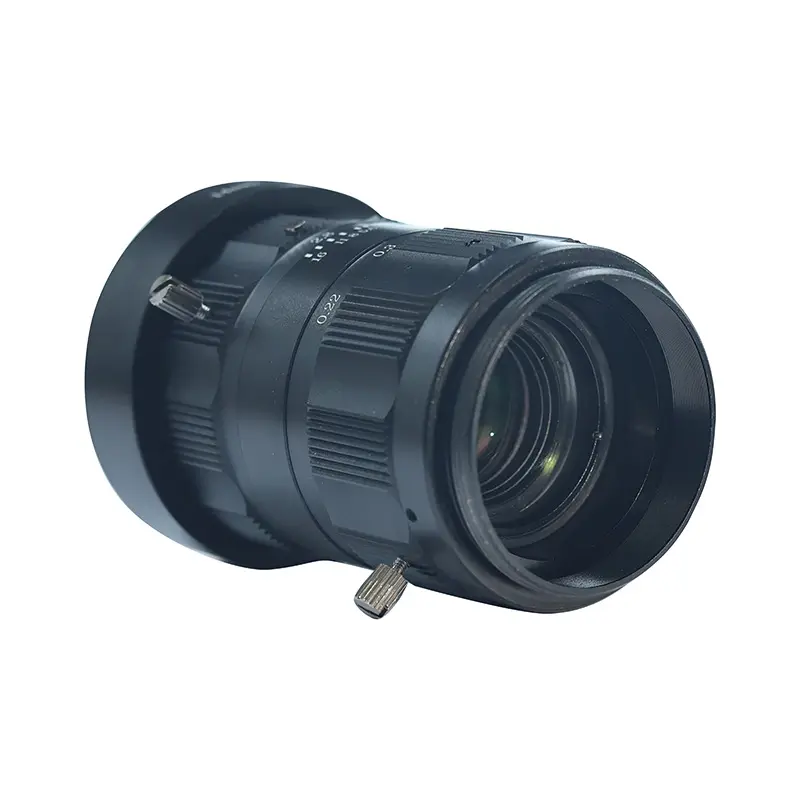

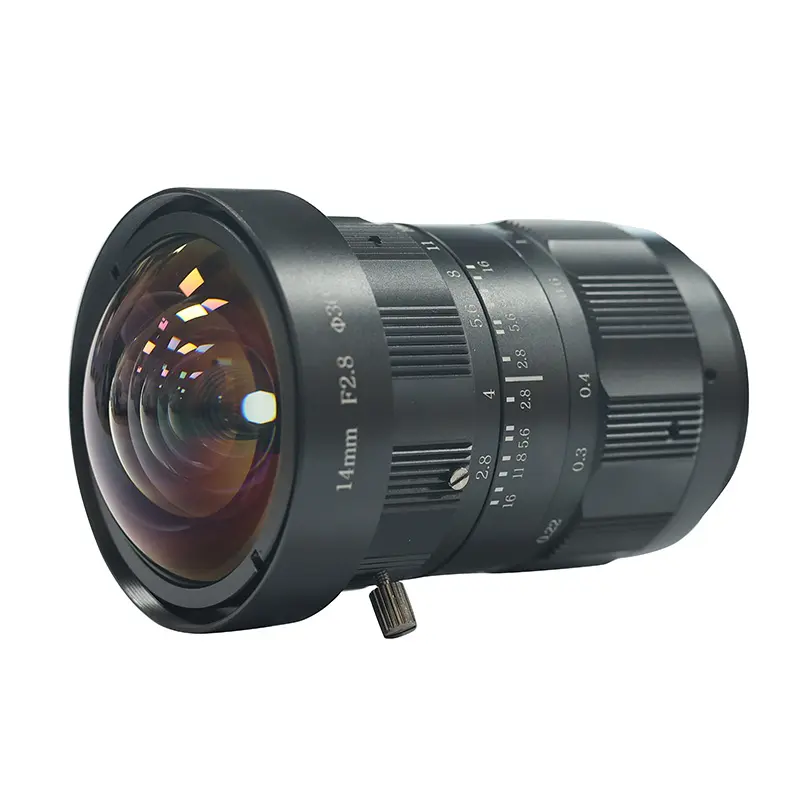

8K 14mm Wide-Angle Line Scan Camera Industrial Lens
Products Specificate
| Model | JY-LS14FL-8K | |
| Pixel | 8K/3.5µm 4K/7µm 2K/14µm | |
| Image Format | Φ30/Φ43 | |
| Focal Length | 14mm | |
| Aperture | F2.8-22 | |
| Mount | M42x1 | |
| Distortion | -0.1% | |

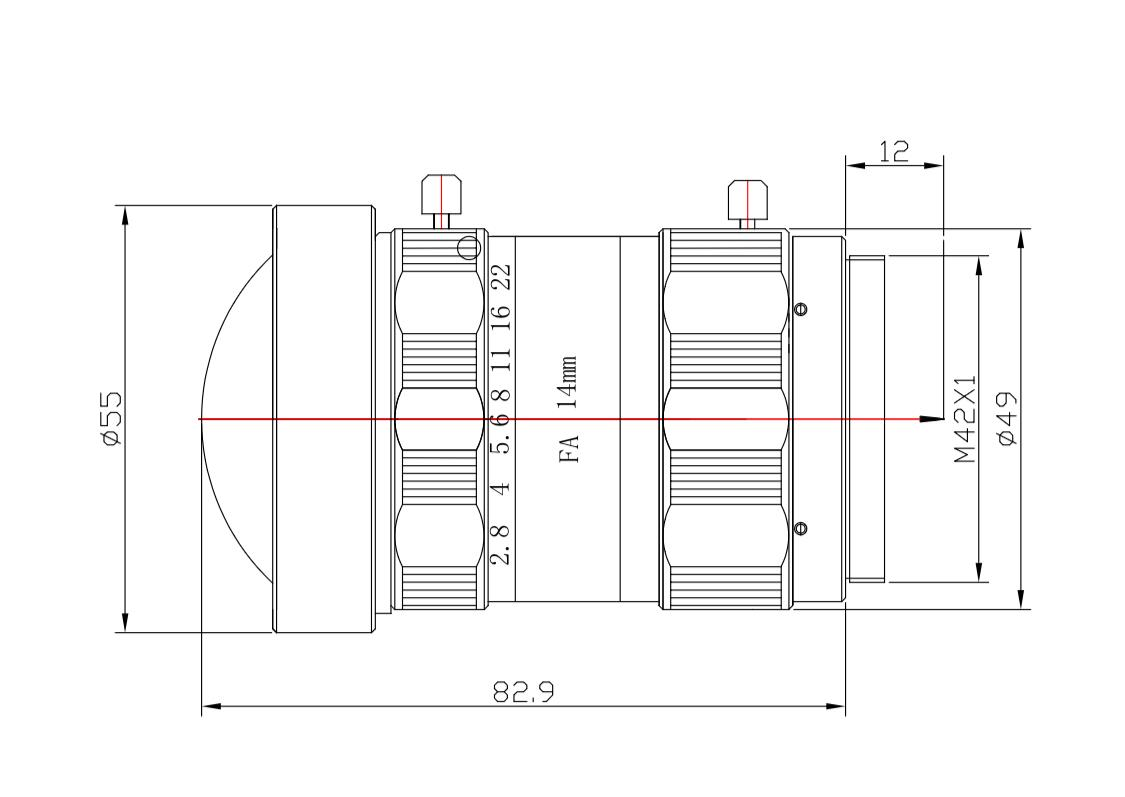

| Max Dist | Φ55*82.9 | |
| M.O.D | 0.2m~∞ | |
| FOV | 89.4º | |
| Filler Mount | / | |
| Weight | 200g | |
| Operation | Focus | Manual |
| Zoom | / | |
| Iris | Manual | |
| Operating temperature | -20℃～+60℃ | |
| Size | ||
 |
||
This product is a high-precision industrial line scan lens, characterized by the following core features and typical applications:
Typical Application Areas
High-Precision Industrial Inspection
Printing Industry: Enables accurate assessment of color consistency and pattern integrity in color printing, with the capability to detect fine defects such as uneven ink dot distribution.
Semiconductor Manufacturing: Suitable for identifying microscopic surface defects on wafers, including scratches and particulate contamination.
OLED Display Inspection: When integrated with high-resolution linear array cameras, it facilitates pixel-level defect analysis, thereby enhancing product quality control.
Scientific Research and Advanced Manufacturing
Materials Science: Applied in the observation of nanomaterial surface morphology and microstructural defects in superconducting materials.
Aerospace Engineering: Utilized in non-destructive evaluation of microcracks on critical components and early detection of material aging.
Technical Advantages
Optimized Resolution and Pixel Matching: The co-design of 8K resolution and 3.5 µm pixel size ensures high image clarity and exceptional detail reproduction.
Superior Optical Performance: Features low distortion and excellent image uniformity, meeting stringent requirements for precision measurement.
Flexible Synchronization Control: Supports external trigger signal input, enabling reliable operation in dynamic environments with variable or inconsistent conveyor speeds.
Core Parameter Specifications
8K resolution: With approximately 7,680 horizontal pixels, this lens enables fine-grained image detail capture, making it ideal for applications requiring high detection accuracy.
3.5 µm pixel size: Designed to match high-resolution sensors, it ensures superior imaging performance even under high pixel density conditions.
Φ30/Φ43: These dimensions likely refer to the lens mount diameter or imaging circle size. The specific mechanical interface standard (e.g., C-mount or F-mount) should be confirmed based on the actual model.
14 mm focal length: Featuring a short focal length design, it supports wide field-of-view imaging, suitable for broad-area inspection tasks.
Selection Guidelines
Camera Compatibility: It is recommended to pair the lens with a line scan camera that supports 8K resolution and has a 3.5 µm pixel pitch to fully utilize its optical capabilities.
Illumination and Motion Control: A highly uniform lighting system and a high-precision motion control setup are advised to ensure consistent and stable image acquisition.
Interface Compatibility: Users must verify alignment between the lens interface specifications (Φ30/Φ43) and the corresponding camera and mechanical mounting components to prevent integration issues.
